Toyota Corolla

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 151130 · Japan

Discontinued model Data version 2003-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

6 part groups · 4 illustrations

Illustrations

Figure 870796A

870796A 1991-06 → —

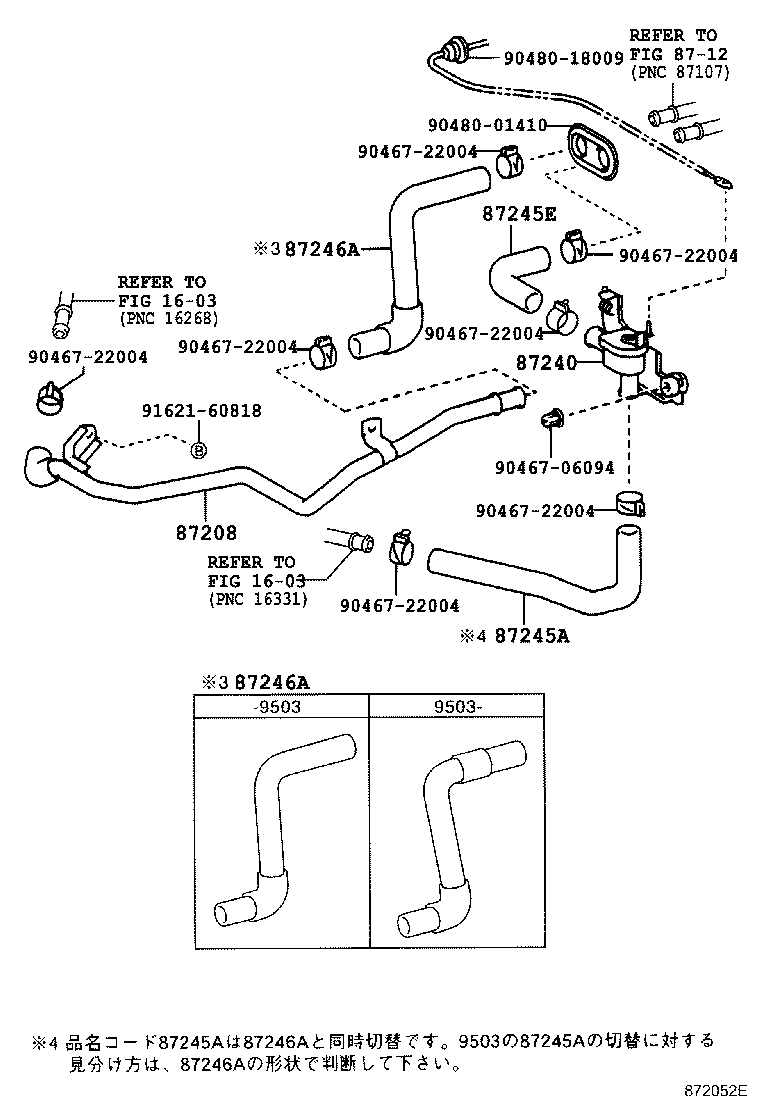

Figure 872052E

872052E 1991-06 → 1998-04

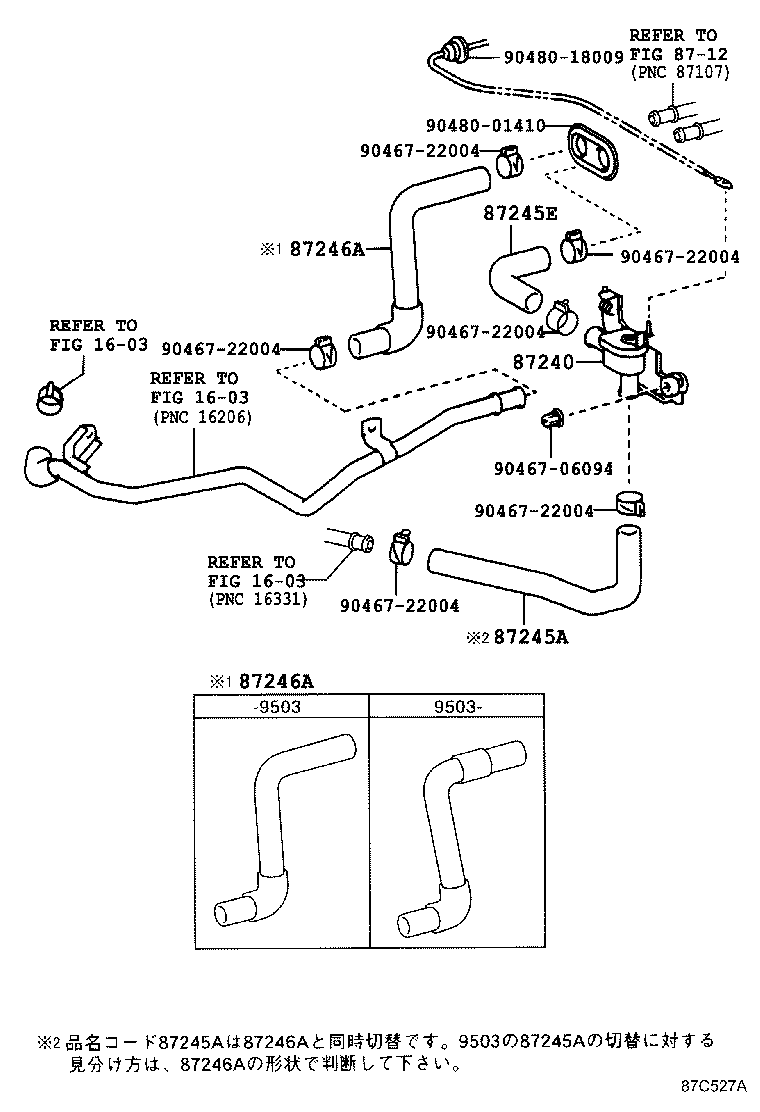

Figure 87C527A

87C527A 1998-04 → —

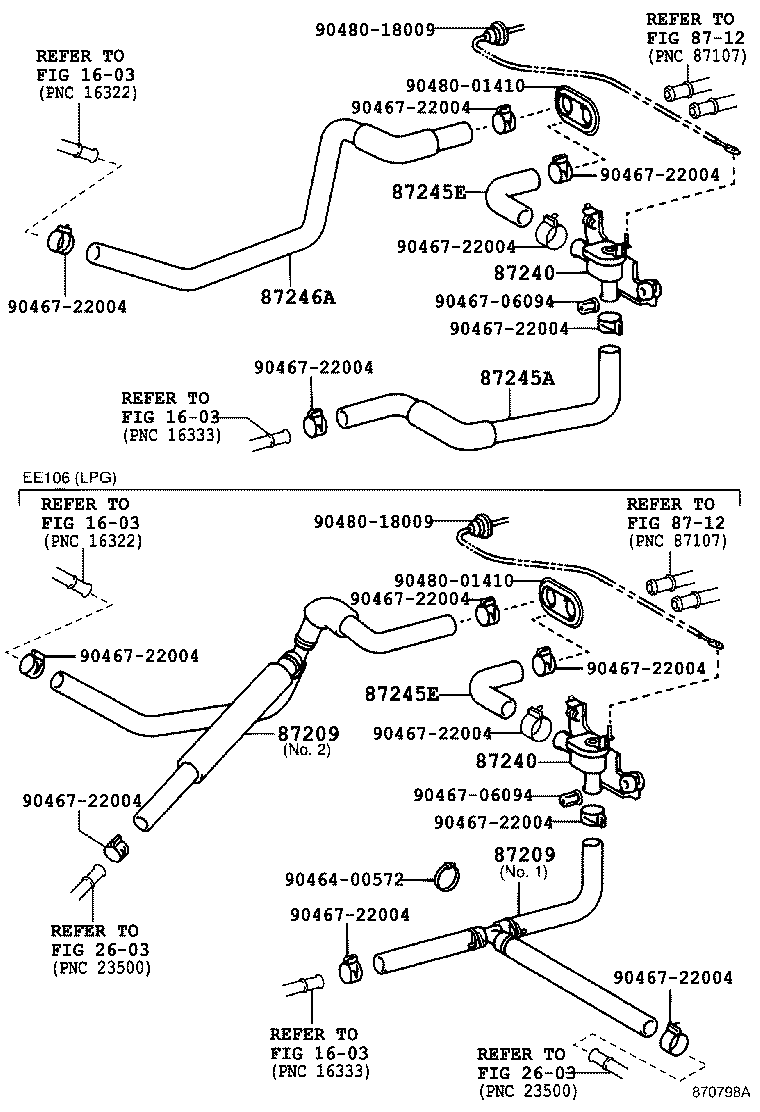

Figure 870798A

870798A 1991-06 → —

Part groups

PNC	Description
87208	Pipe Sub-assy, Heater Water
87209	Hose Sub-assy, Water
87240	Valve Assy, Heater Water
87245A	Hose, Heater Water, Inlet A
87245E	Hose, Heater Water, Inlet E
87246A	Hose, Heater Water, Outlet A

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
