Heating & Air Conditioning - Vacuum Piping

6 part groups · 7 illustrations

Illustrations

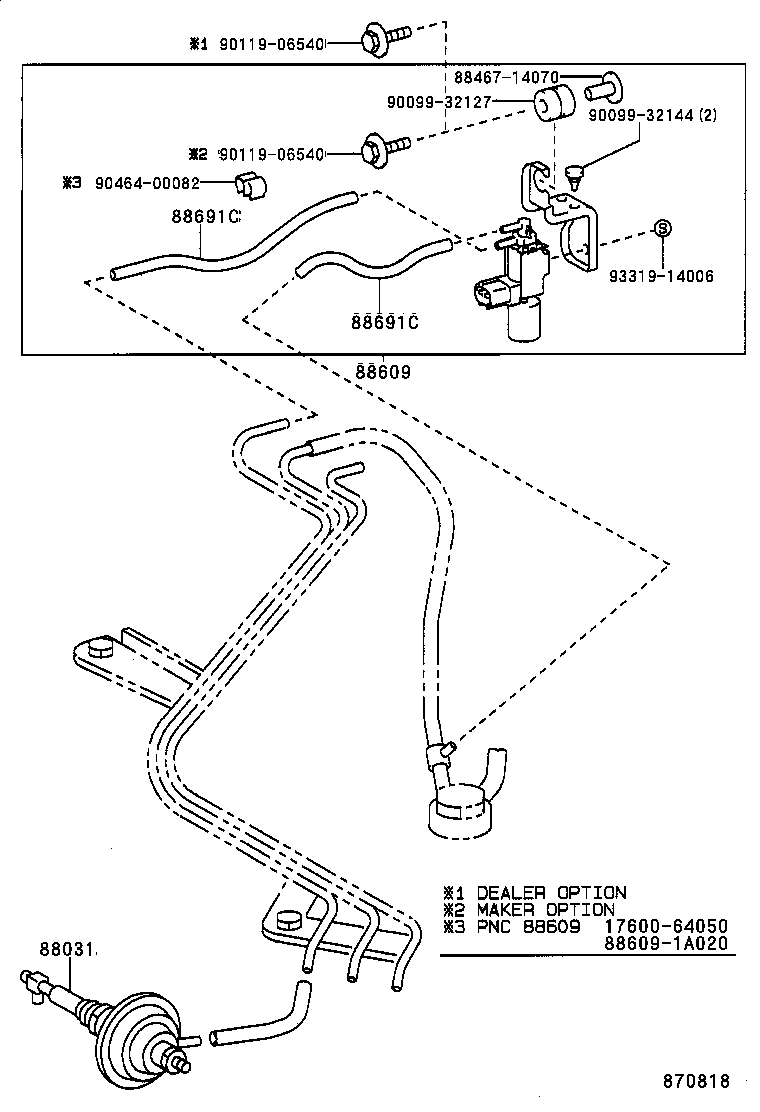

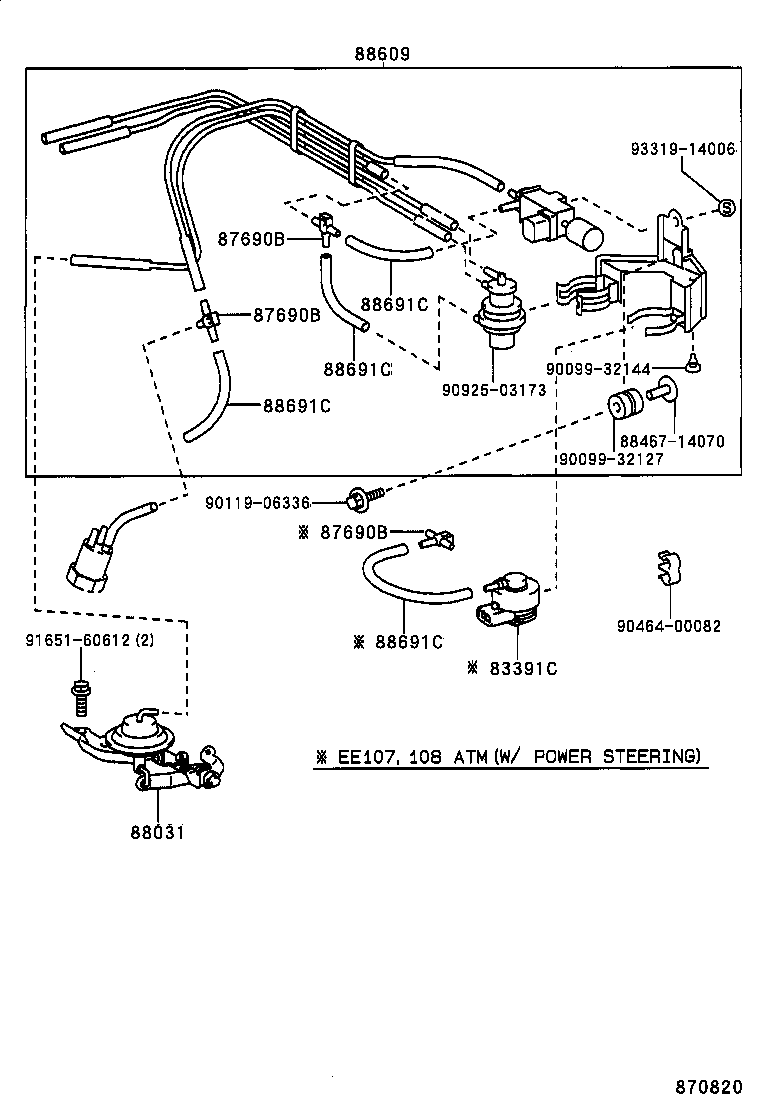

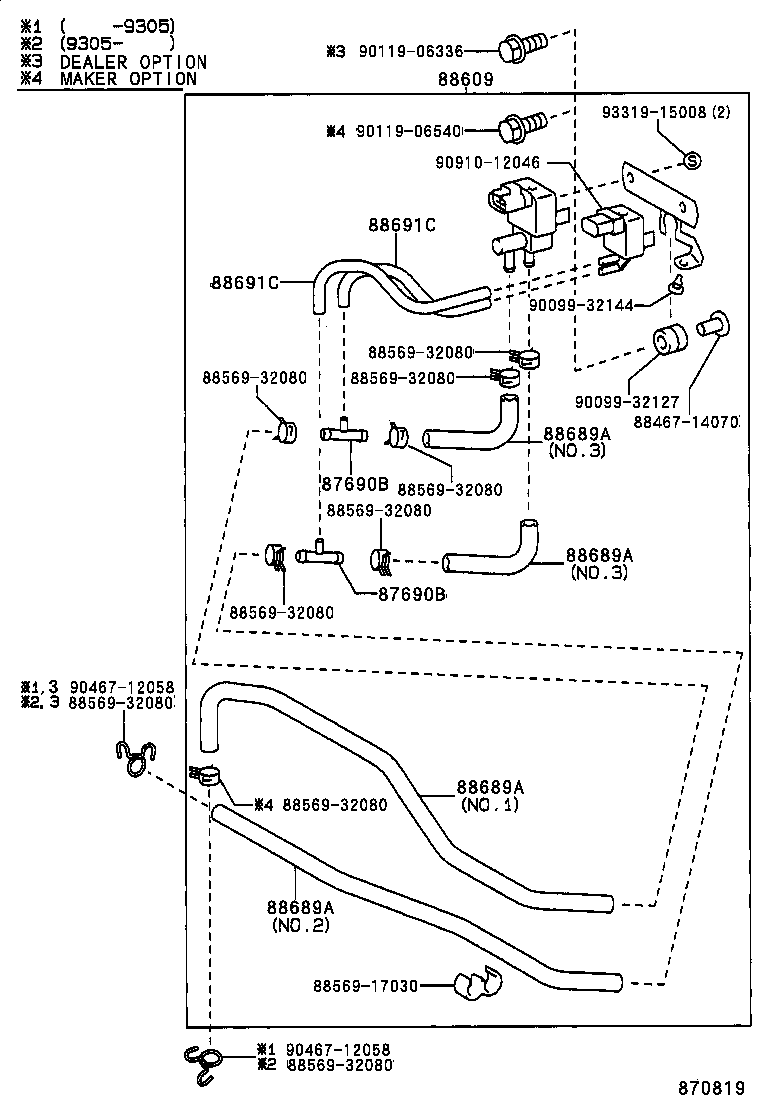

Figure 870815 870815 1991-06 → — Figure 870816 870816 1991-06 → — Figure 870817 870817 1991-06 → — Figure 870818 870818 1993-05 → — Figure 870819 870819 1991-06 → — Figure 870820 870820 1991-09 → 1994-01 Figure 870821 870821 1991-09 → 1994-01

Part groups

PNCDescription
83391C Switch, Cooler Vacuum
87690B Way, 3
88031 Actuator Set, Idle-up
88609 Device Sub-assy, Idle UP
88689A Hose, Cooler Vacuum NO.1
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
