Heating & Air Conditioning - Compressor

11 part groups · 3 illustrations

Illustrations

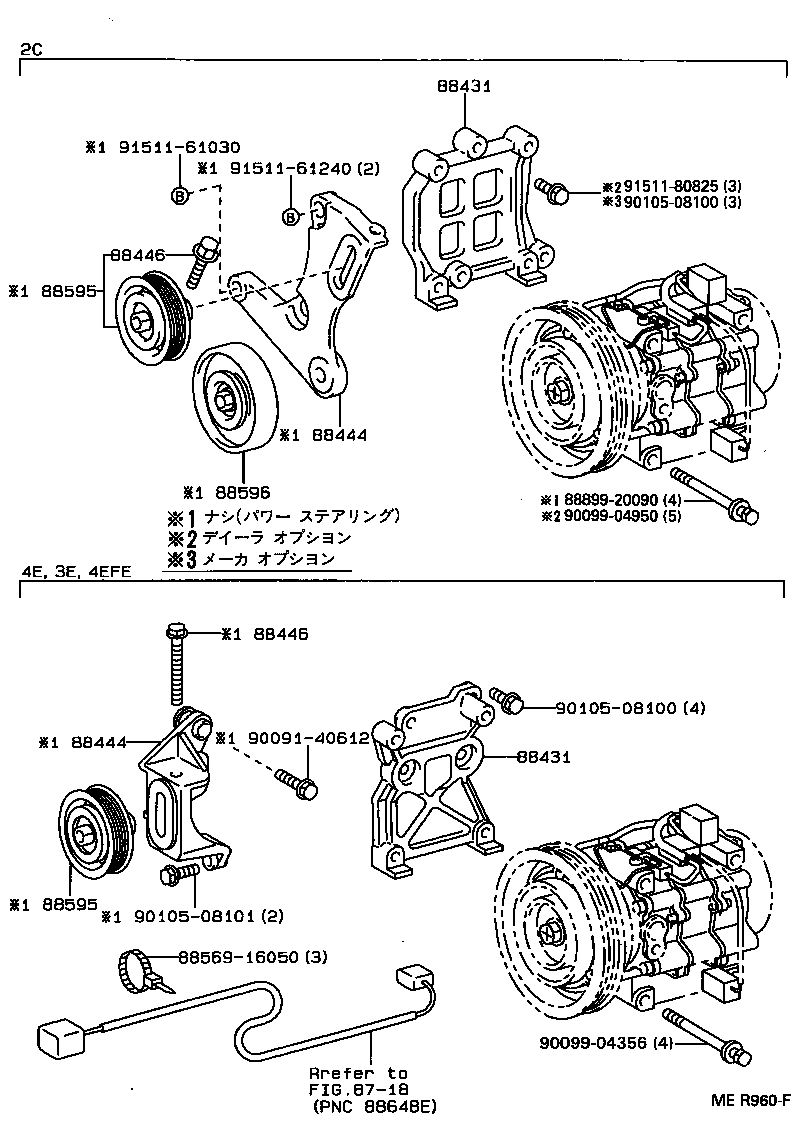

Figure MER959C MER959C 1991-06 → — Figure MER960F MER960F 1991-06 → — Figure 872225 872225 1991-06 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88444 Bracket, Idle Pulley
88446 Bolt, Idle Pulley
88595 Pulley, Cooler Compressor Idle
88596 Pulley Assy, Idle, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
