Toyota Corolla

1995-05 → 2000-08 · chassis AE11#,CE11#,EE111 · catalogue 151140 · Japan

Discontinued model Data version 2001-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

12 part groups · 3 illustrations

Illustrations

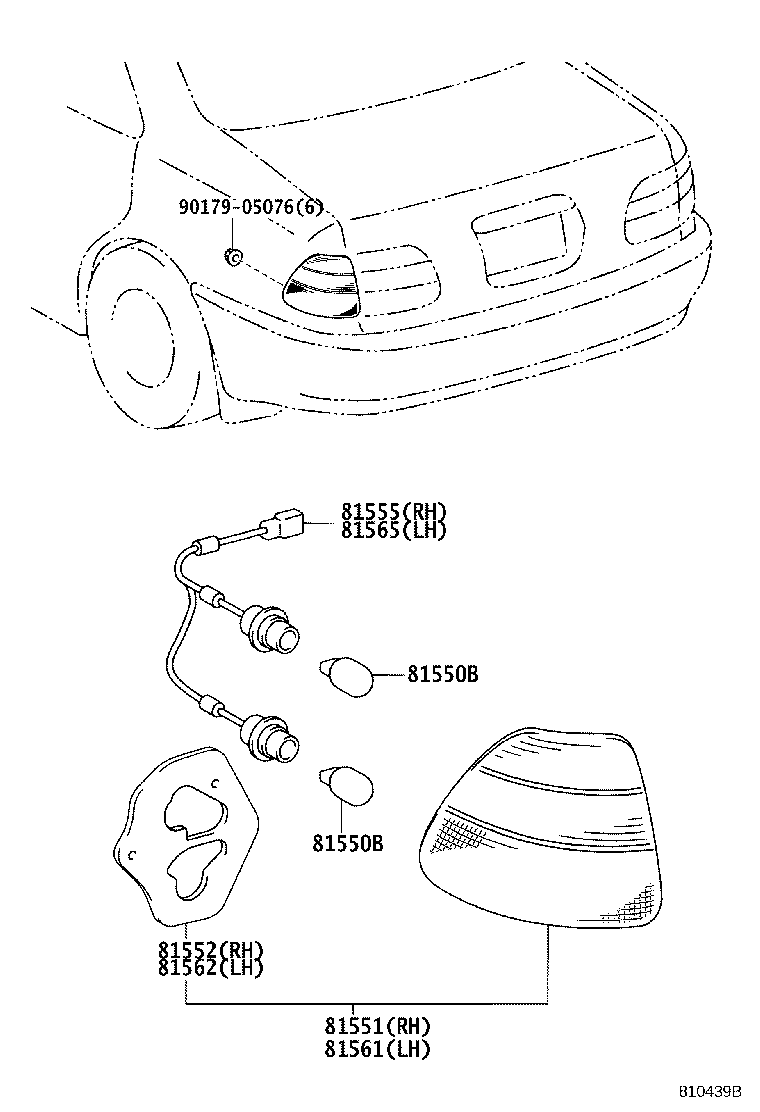

Figure 810356A 810356A 1995-05 → 1997-04 Figure 810439B 810439B 1997-04 → — Figure 810440B 810440B 1997-04 → —

Part groups

PNCDescription
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81552 Gasket, Rear Combination Lamp Lens, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81561 Lens, Rear Combination Lamp, LH
81562 Gasket, Rear Combination Lamp Lens, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81580B Bulb (FOR REAR LAMP)
81581 Lens, Rear Lamp
81585 Socket & Wire, Rear Lamp
81588B Gasket, Rear Lamp
81591A Lens Rear Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
