Toyota Corolla/Fielder
2000-08 → 2006-09 · chassis CE121,NZE12#,ZZE12# · catalogue 151150 · Japan
Discontinued model
Data version 2007-04
Mounting
13 part groups · 7 illustrations
Part groups

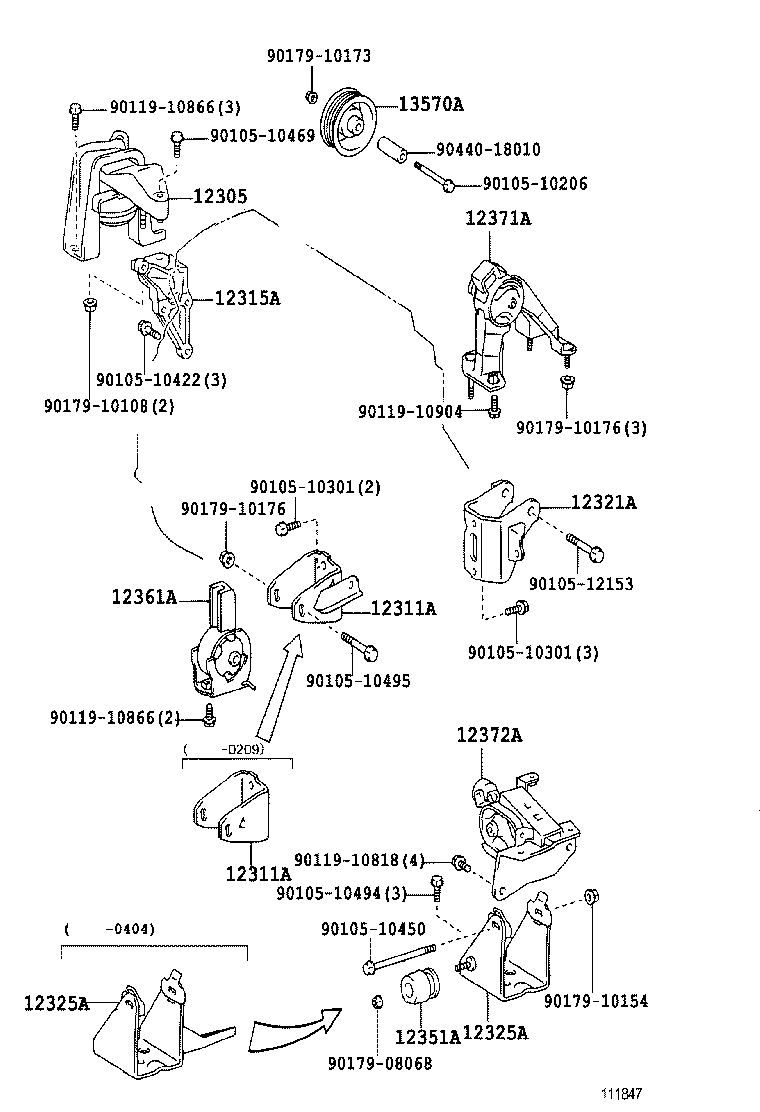

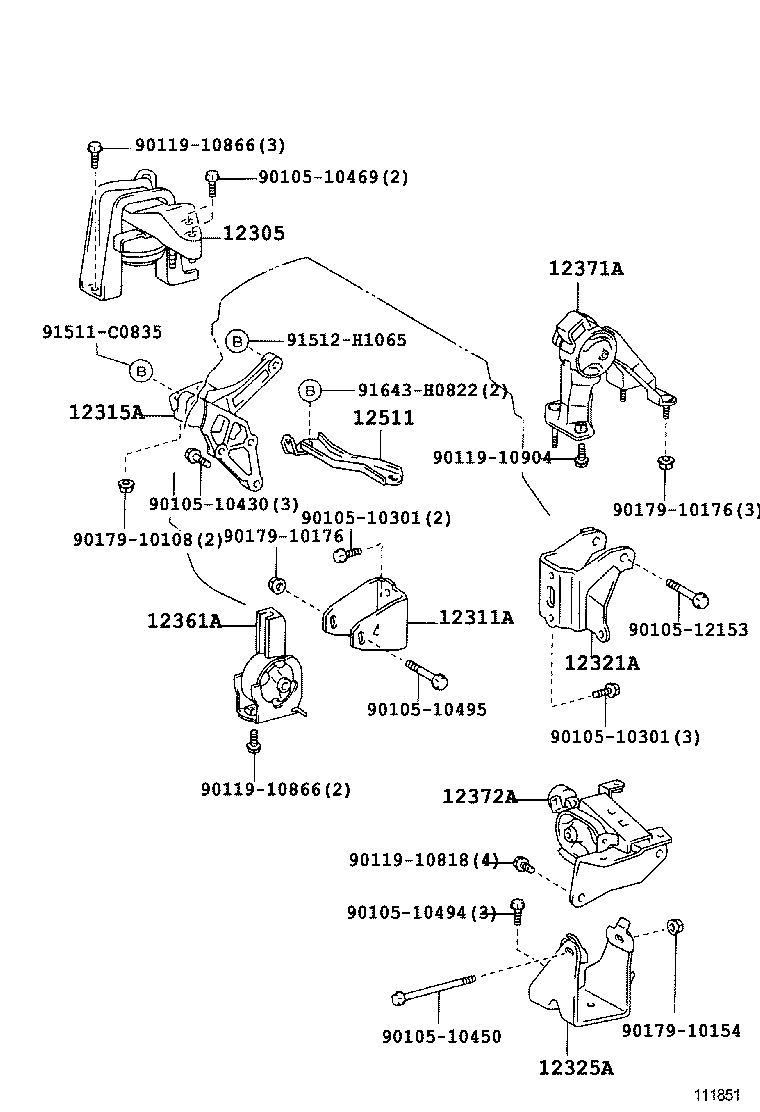

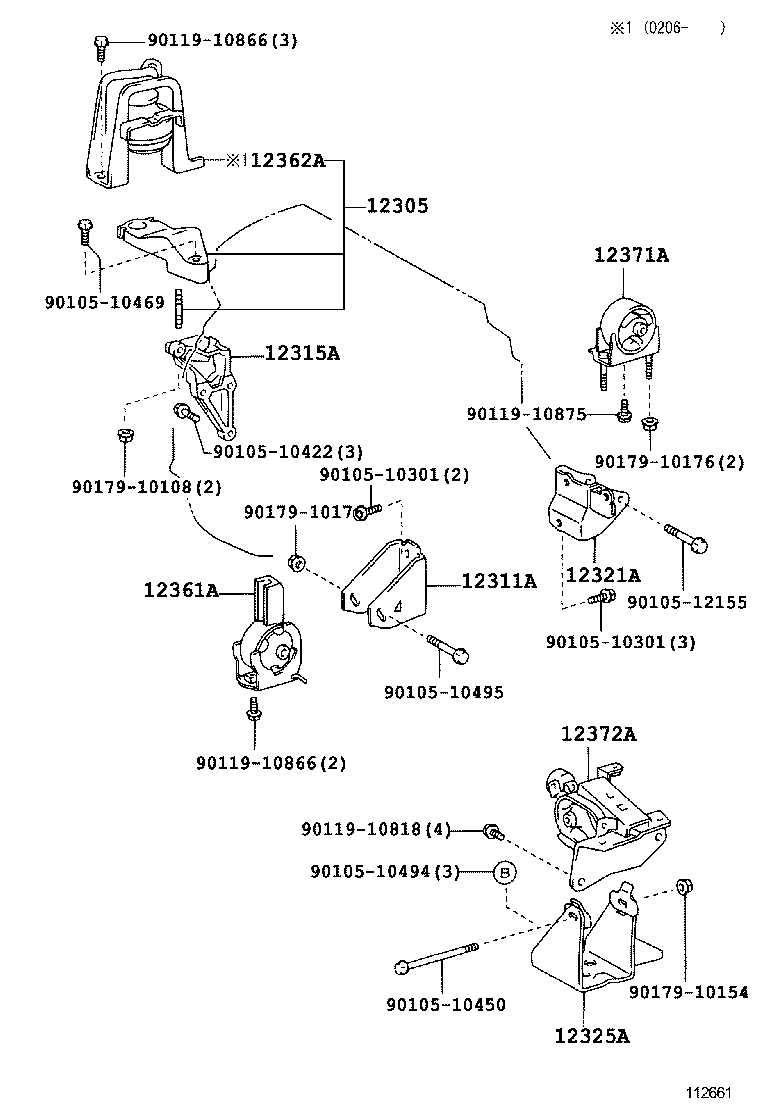

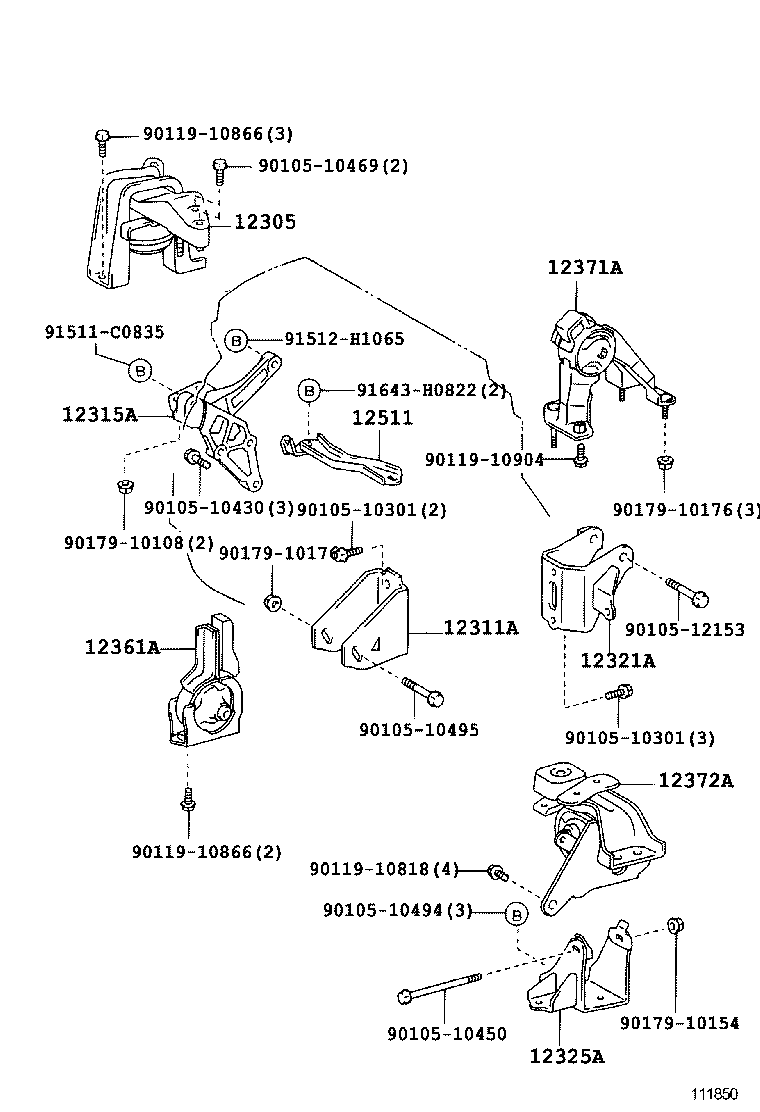

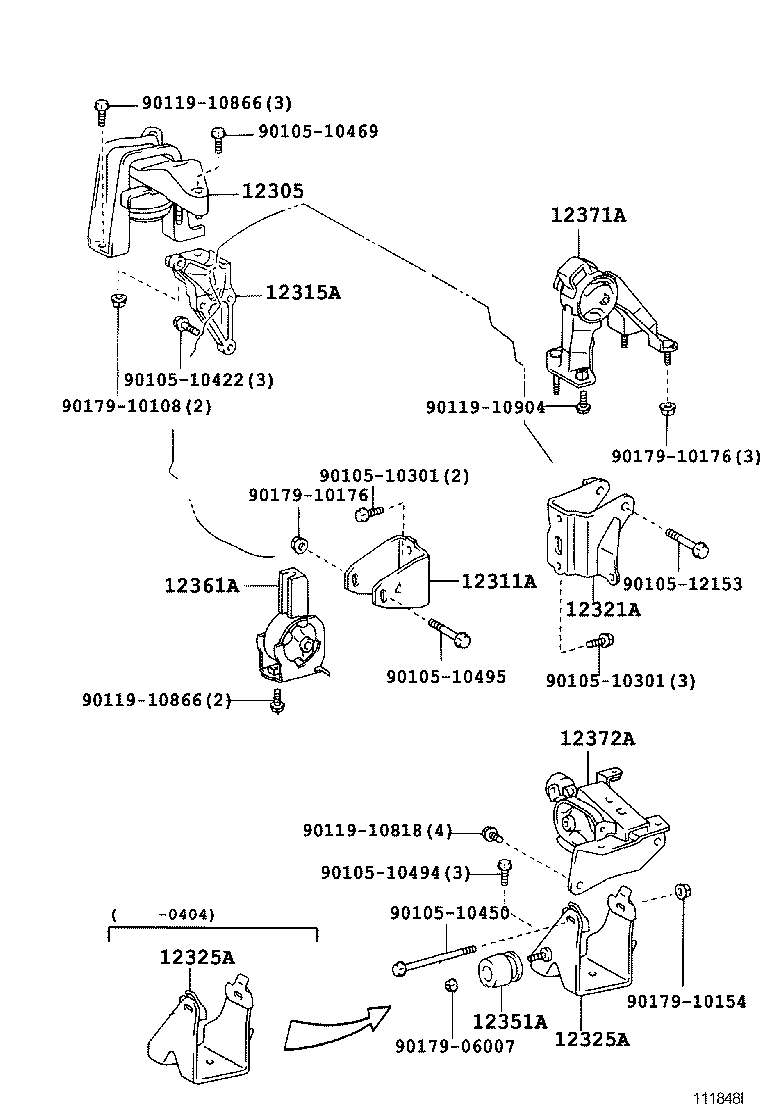

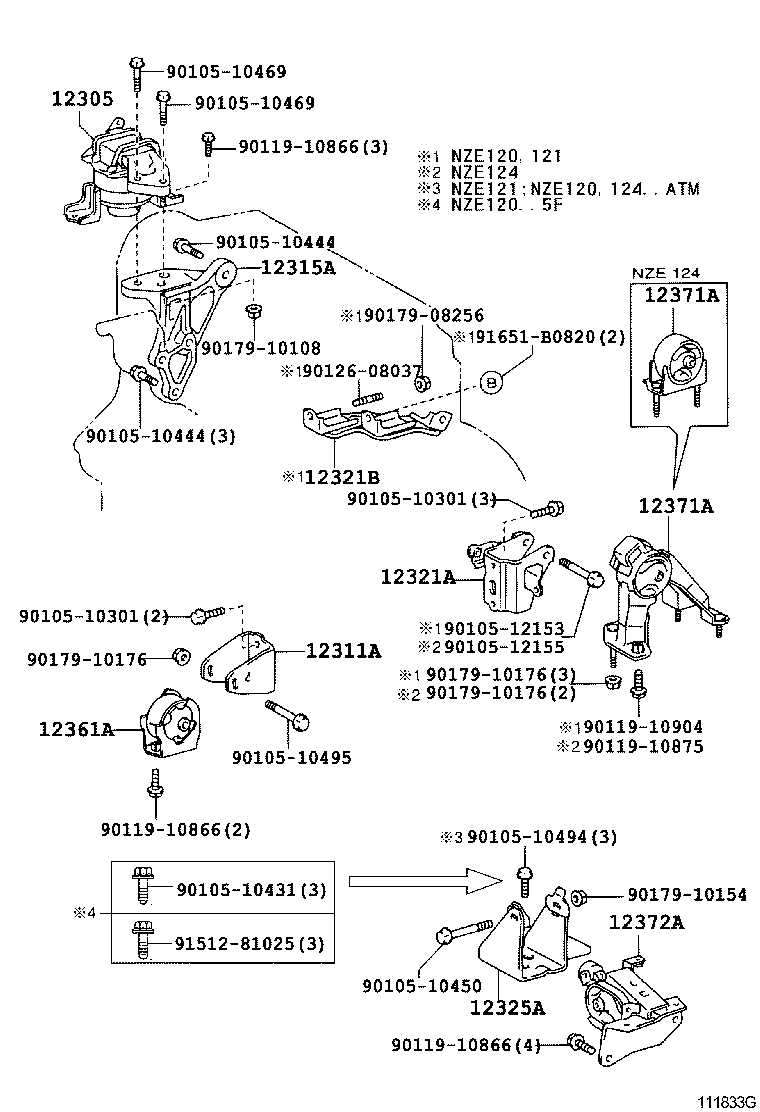

| PNC | Description |
|---|---|
| 12305 | Insulator Sub-assy, Engine Mounting, RH |
| 12311A | Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE) |
| 12315A | Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE) |
| 12321A | Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE) |
| 12321B | Insulator Sub-assy, Drive Shaft Heat |
| 12325A | Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE) |
| 12351A | Damper, Engine Mounting(FOR INSULATOR) |
| 12361A | Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE) |
| 12362A | Insulator, Engine Mounting, Front LH |
| 12371A | Insulator, Engine Mounting, Rear |
| 12372A | Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE) |
| 12511 | Bracket, Alternator, NO.1 |
| 13570A | Idler Assy, V-ribbed, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
