Toyota Corolla/Fielder

2000-08 → 2006-09 · chassis CE121,NZE12#,ZZE12# · catalogue 151150 · Japan

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

9 part groups · 5 illustrations

Illustrations

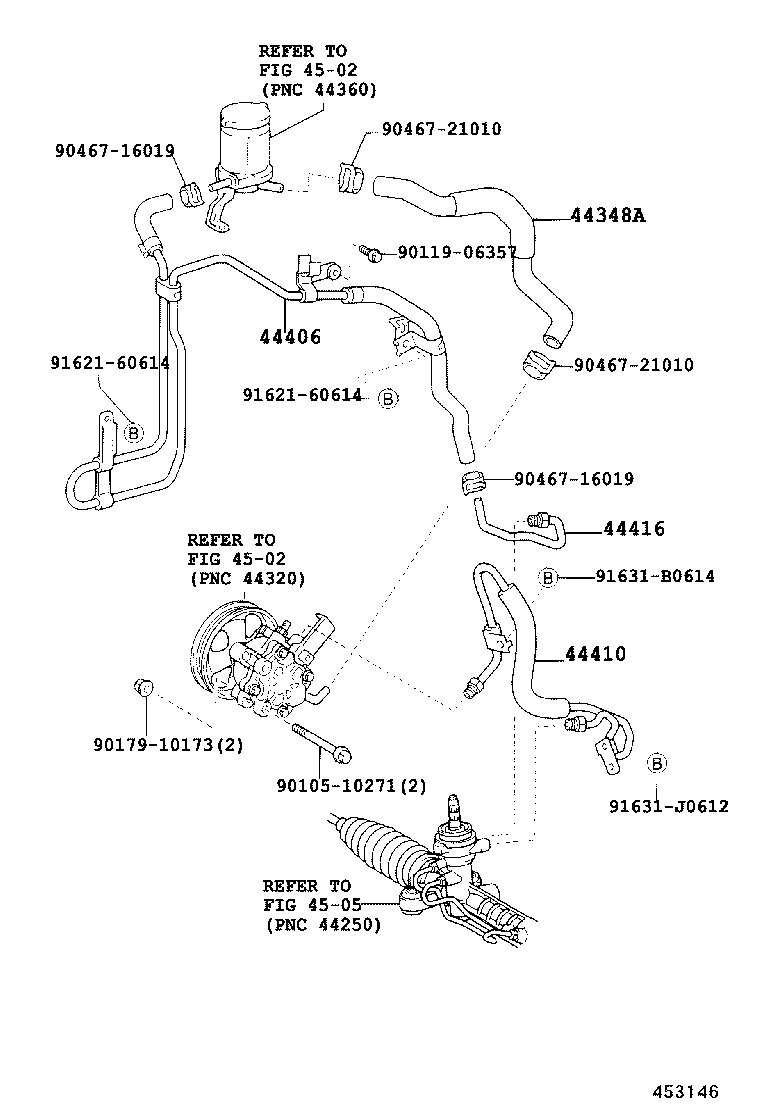

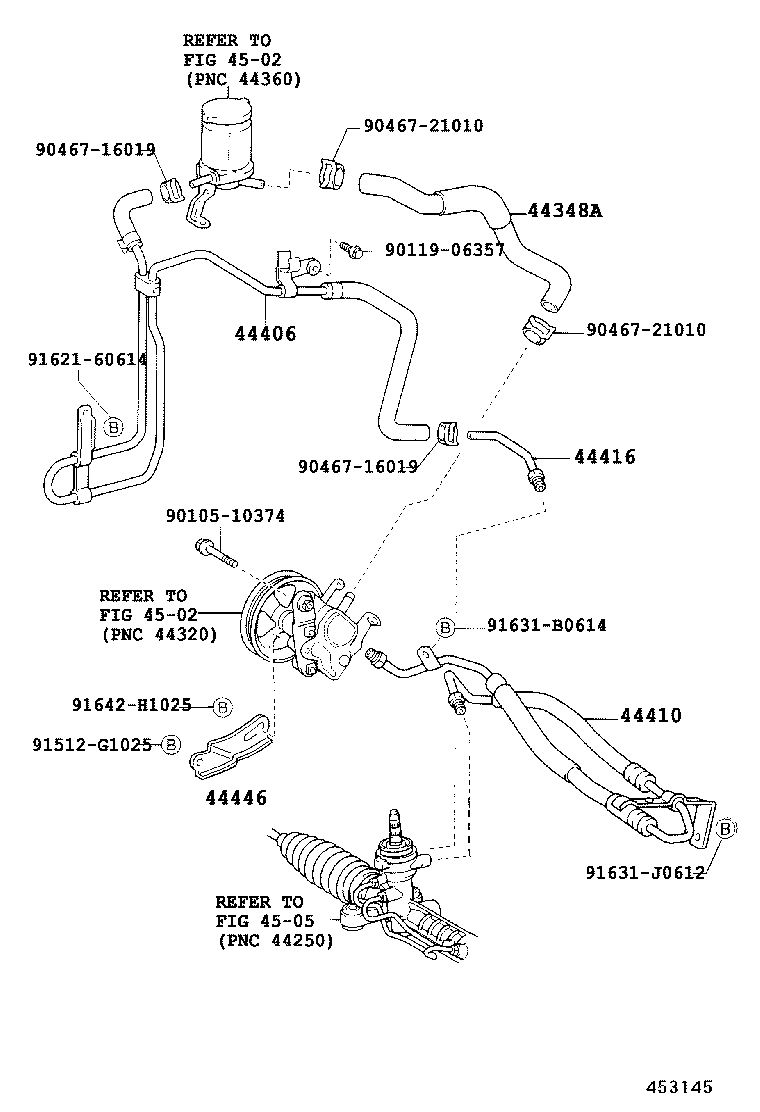

Figure 452351E 452351E 2000-08 → — Figure 453145C 453145C 2000-08 → — Figure 453146B 453146B 2000-08 → 2002-09 Figure 453146B 453146B 2002-09 → — Figure 452354D 452354D 2000-08 → —

Part groups

PNCDescription
44348A Hose, Oil Reservoir TO Pump, NO.1
44350 Pulley Assy, Power Steering Idle
44350A Bolt(FOR POWER STEERING IDLE PULLEY)
44381 Bracket, Power Steering Idle Pulley
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44442 Bracket, Pump, Rear
44446 Strut, Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
