Toyota Corolla/Fielder

2000-08 → 2006-09 · chassis CE121,NZE12#,ZZE12# · catalogue 151150 · Japan

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

40 part groups · 6 illustrations

Illustrations

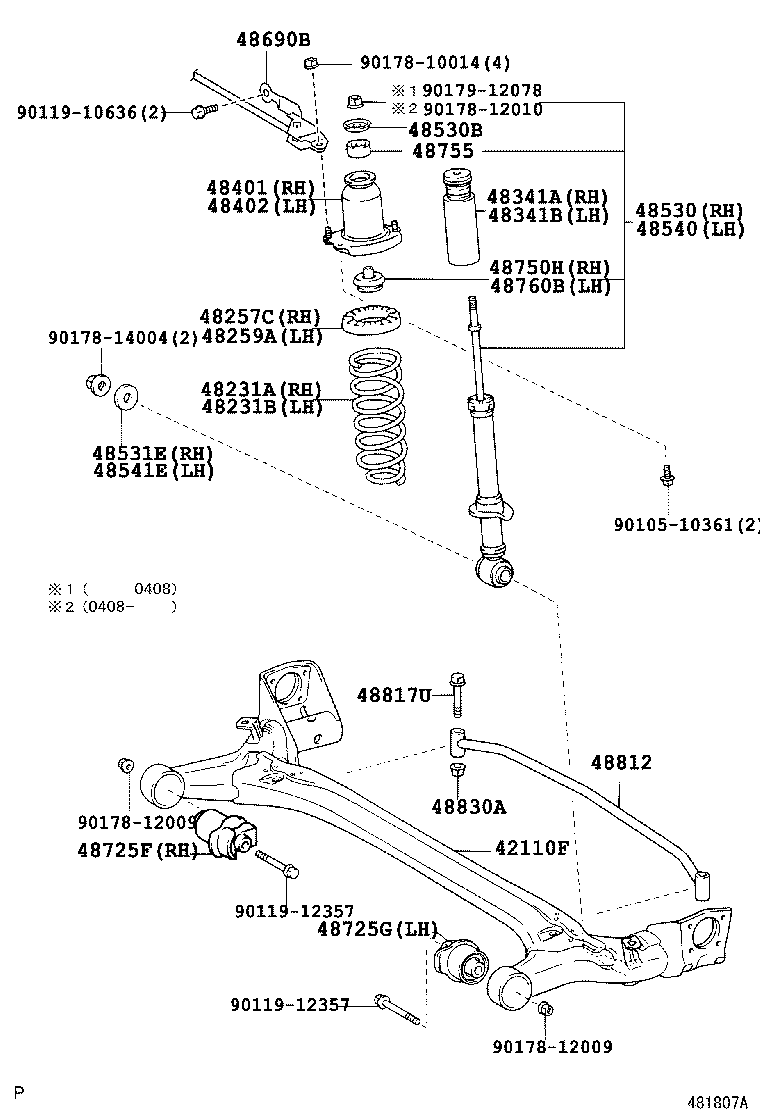

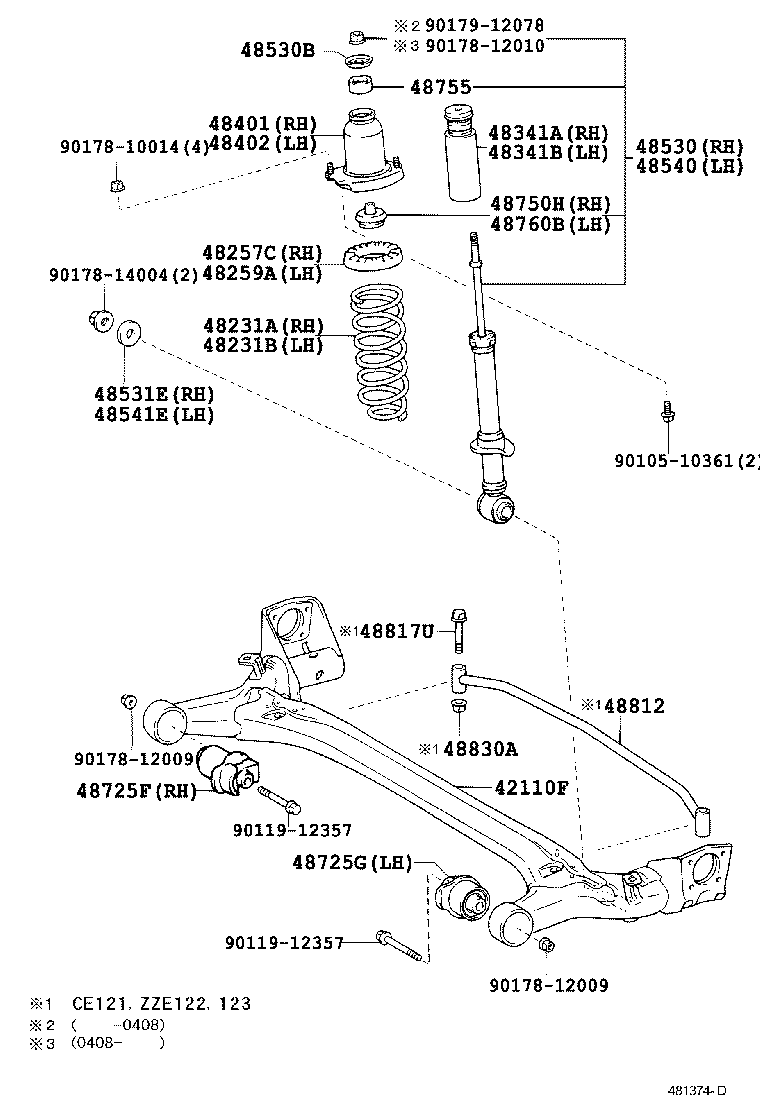

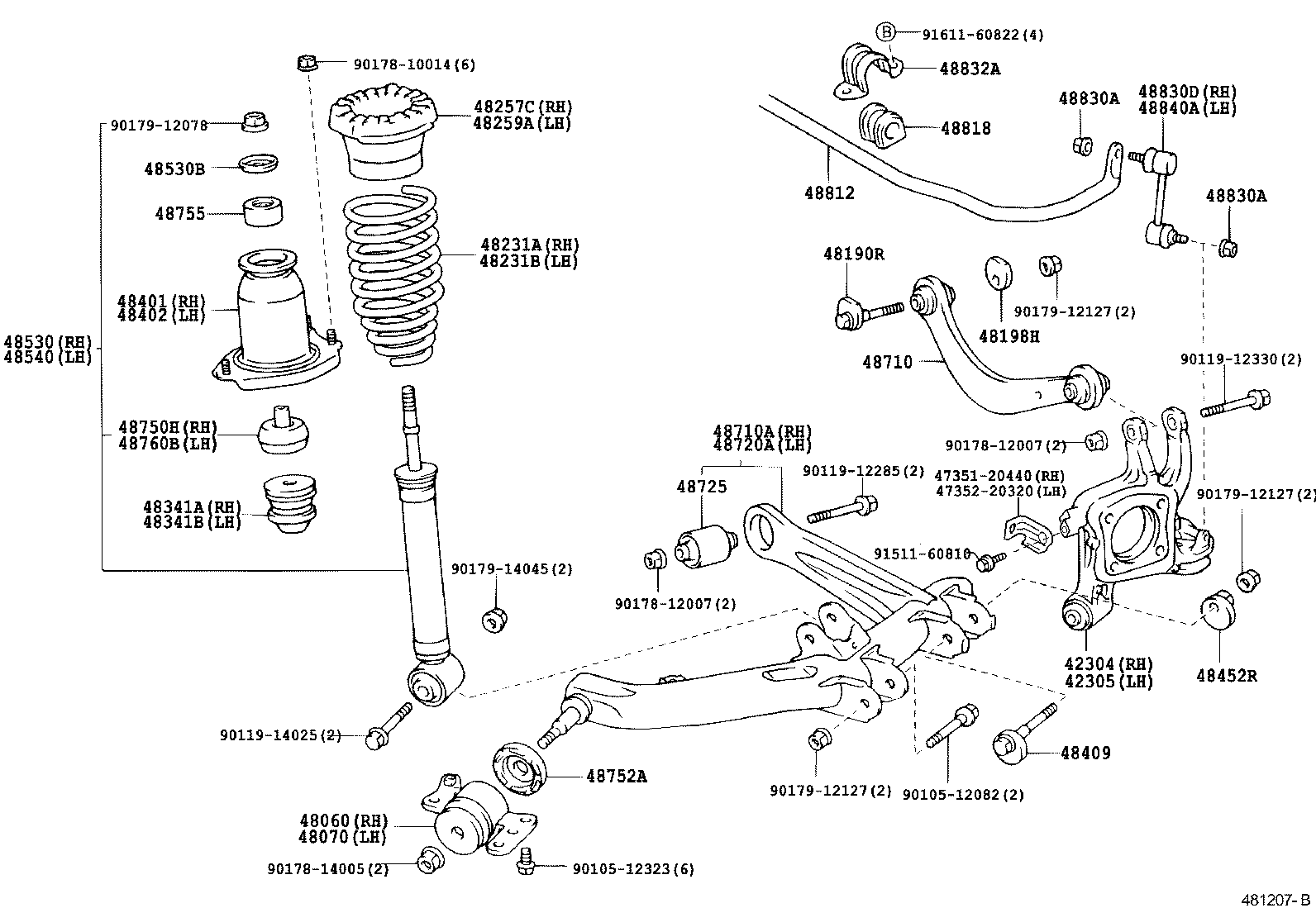

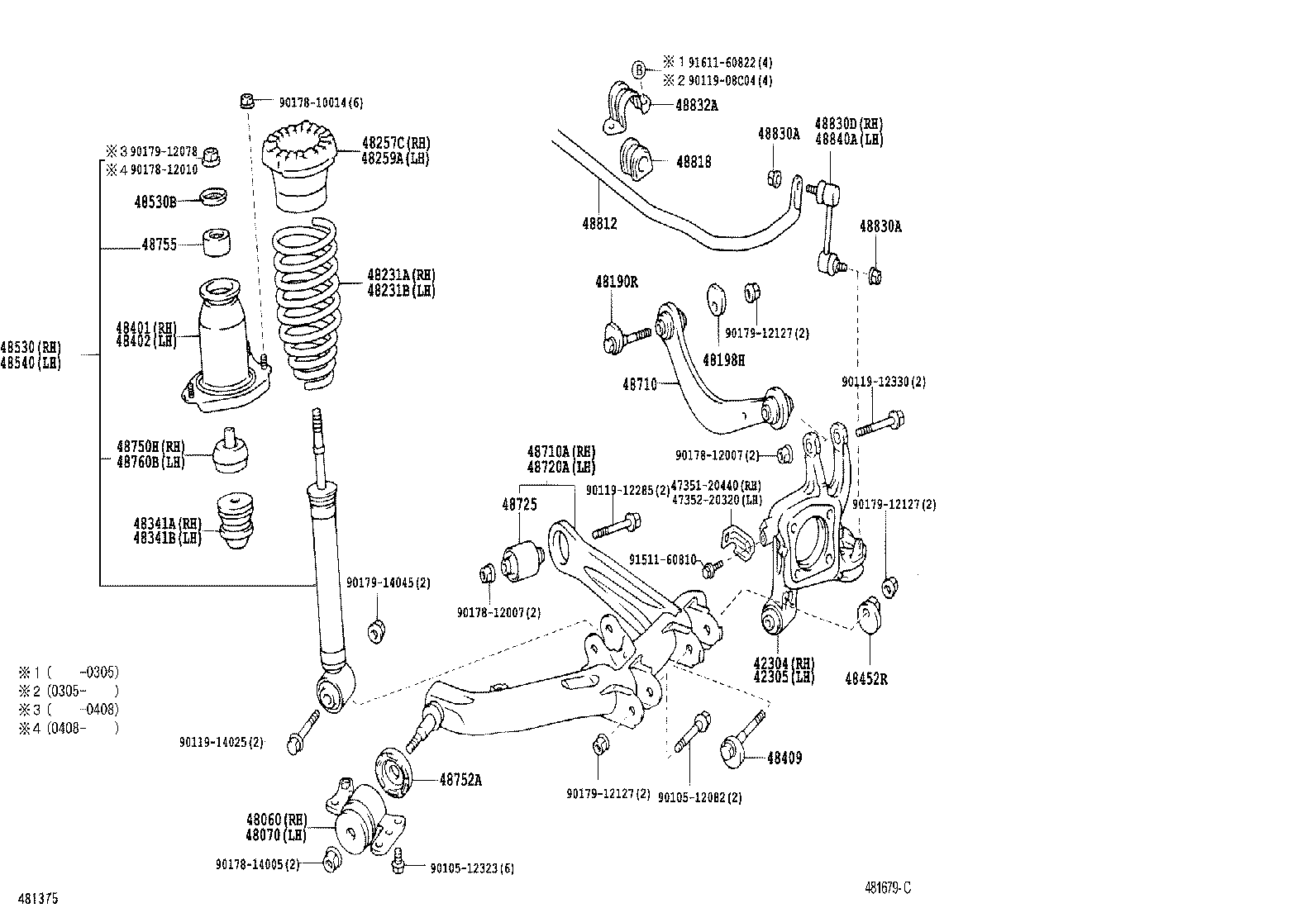

Figure 481206D 481206D 2000-08 → 2001-04 Figure 481207B 481207B 2000-08 → 2001-04 Figure 481374D 481374D 2001-04 → 2004-04 Figure 481374D 481374D 2004-04 → — Figure 481679C 481679C 2001-04 → — Figure 481807A 481807A 2004-04 → —

Part groups

PNCDescription
42110F Beam Assy, Rear Axle
42304 Carrier Sub-assy, Rear Axle, RH
42305 Carrier Sub-assy, Rear Axle, LH
48060 Bracket Assy, Rear Suspension Arm, RH
48070 Bracket Assy, Rear Suspension Arm, LH
48190R Cam Assy, Camber Adjust
48198H Cam, Camber Adjust, NO.2
48231A Spring, Coil, Rear RH
48231B Spring, Coil, Rear LH
48257C Insulator, Rear Coil Spring, Upper RH
48259A Insulator, Rear Coil Spring, Upper LH
48341A Bumper, Rear Spring, NO.1 RH
48341B Bumper, Rear Spring, NO.1 LH
48401 Bracket Sub-assy, Rear Spring, Front RH
48402 Bracket Sub-assy, Rear Spring, Front LH
48409 Cam Sub-assy, Rear Suspension Toe Adjust
48452R Plate, Rear Suspension Toe Adjust, NO.2
48530 Absorber Assy, Shock, Rear RH
48530B Washer, Rear Shock Absorber Cushion, NO.1
48531E Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER RH)
48540 Absorber Assy, Shock, Rear LH
48541E Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER LH)
48690B Damper Assy, Suspension Tower
48710 Arm Assy, Upper Control
48710A Arm Assy, Rear Suspension, NO.1 RH
48720A Arm Assy, Rear Suspension, NO.1 LH
48725 Bush, Lower Control Arm
48725F Bush, Rear Axle Carrier, RH
48725G Bush, Rear Axle Carrier, LH
48750H Support Assy, Rear Suspension, RH
48752A Stopper, Rear Suspension Support
48755 Support, Rear Suspension
48760B Support Assy Rear Suspension, LH
48812 Bar, Stabilizer, Rear
48817U Bolt(FOR REAR STABILIZER)
48818 Bush, Stabilizer, Rear
48830A Nut(FOR REAR STABILIZER LINK)
48830D Link Assy, Rear Stabilizer, RH
48832A Bracket, Rear Stabilizer Bar, NO.1
48840A Link Assy, Rear Stabilizer, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
