Toyota Corolla/Fielder

2000-08 → 2006-09 · chassis CE121,NZE12#,ZZE12# · catalogue 151150 · Japan

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

15 part groups · 5 illustrations

Illustrations

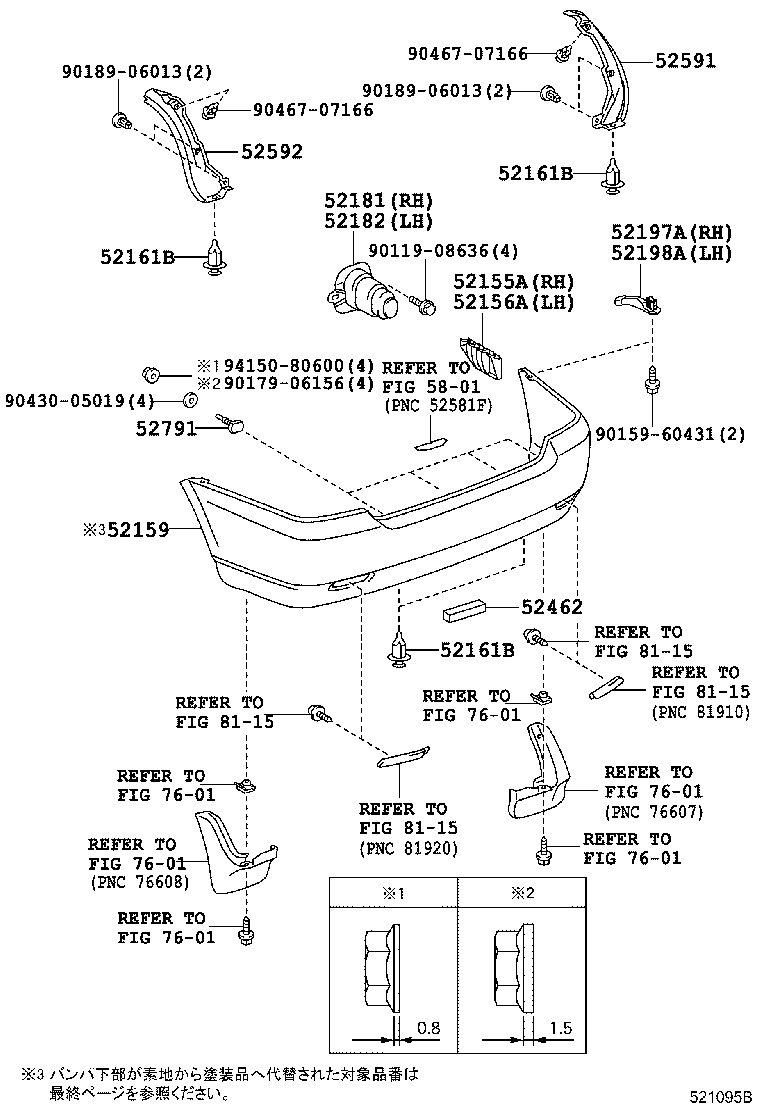

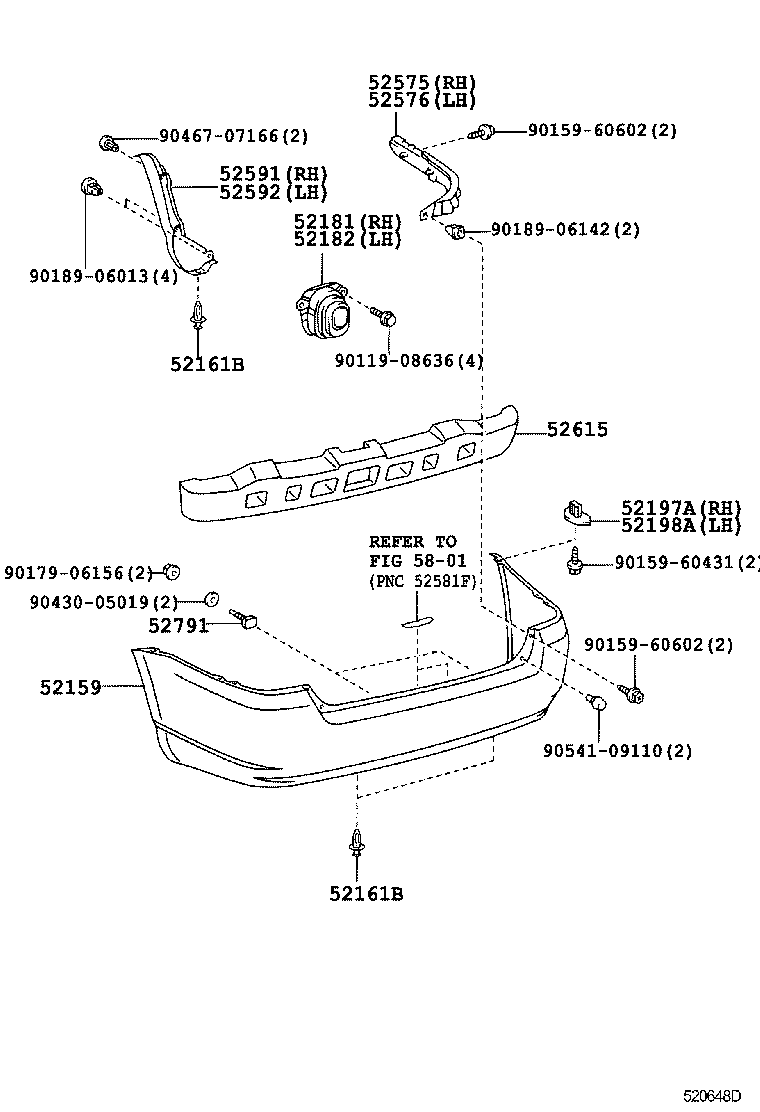

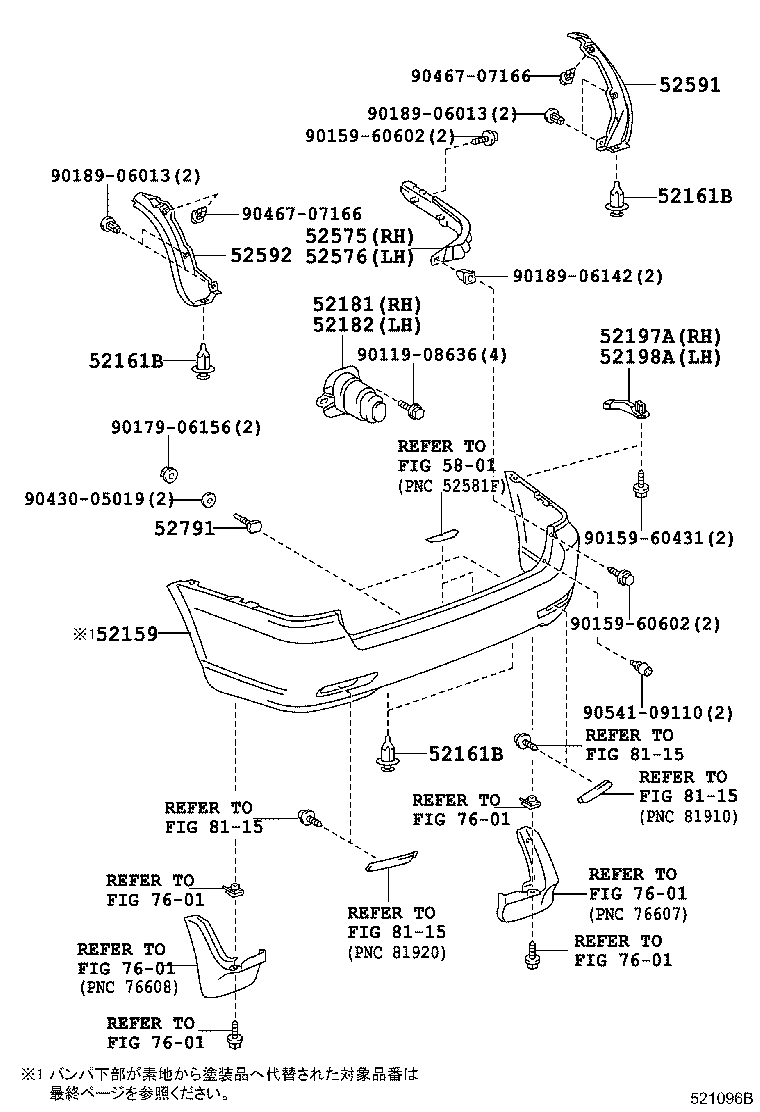

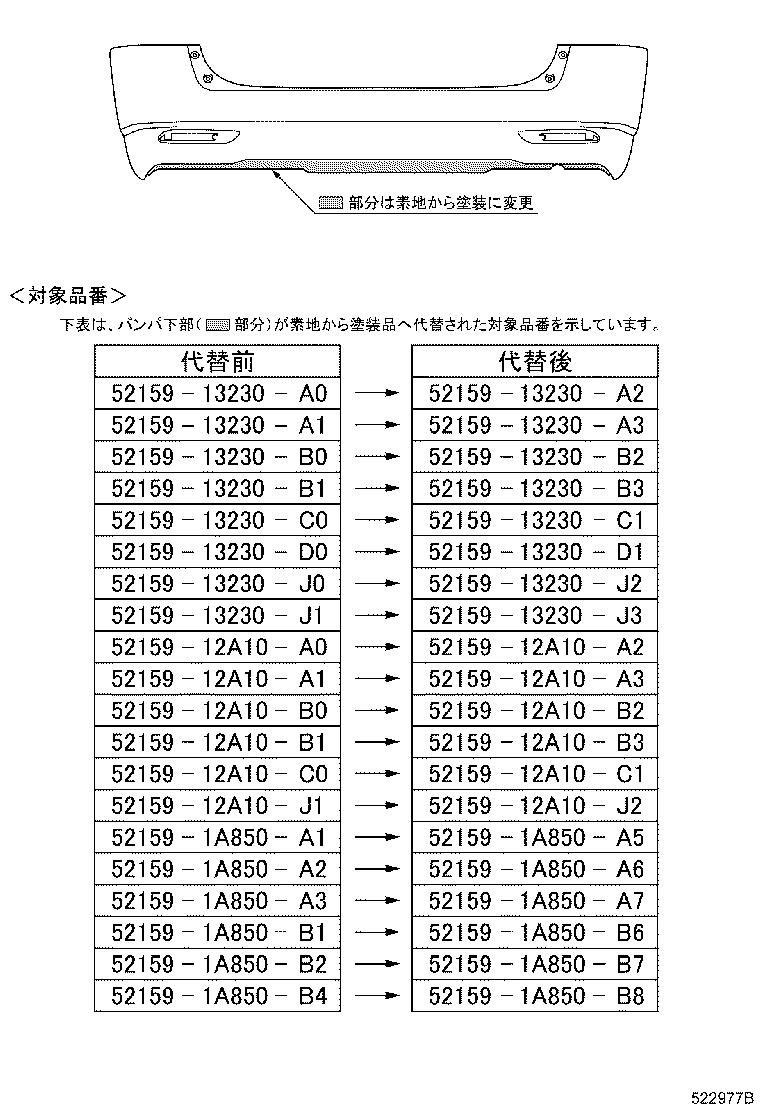

Figure 520647C 520647C 2000-08 → 2004-04 Figure 520648D 520648D 2000-08 → 2004-04 Figure 521095B 521095B 2004-04 → — Figure 521096B 521096B 2004-04 → — Figure 522977B 522977B 2000-08 → —

Part groups

PNCDescription
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52181 Arm, Rear Bumper, RH
52182 Arm, Rear Bumper, LH
52197A Bracket, Rear Bumper Seal, RH
52198A Bracket, Rear Bumper Seal, LH
52462 Pad, Rear Bumper, RH
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
52615 Absorber, Rear Bumper Energy
52791 Bolt, Bumper Moulding Set, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
