Toyota Corolla/Fielder
2000-08 → 2006-09 · chassis CE121,NZE12#,ZZE12# · catalogue 151150 · Japan
Discontinued model
Data version 2007-04

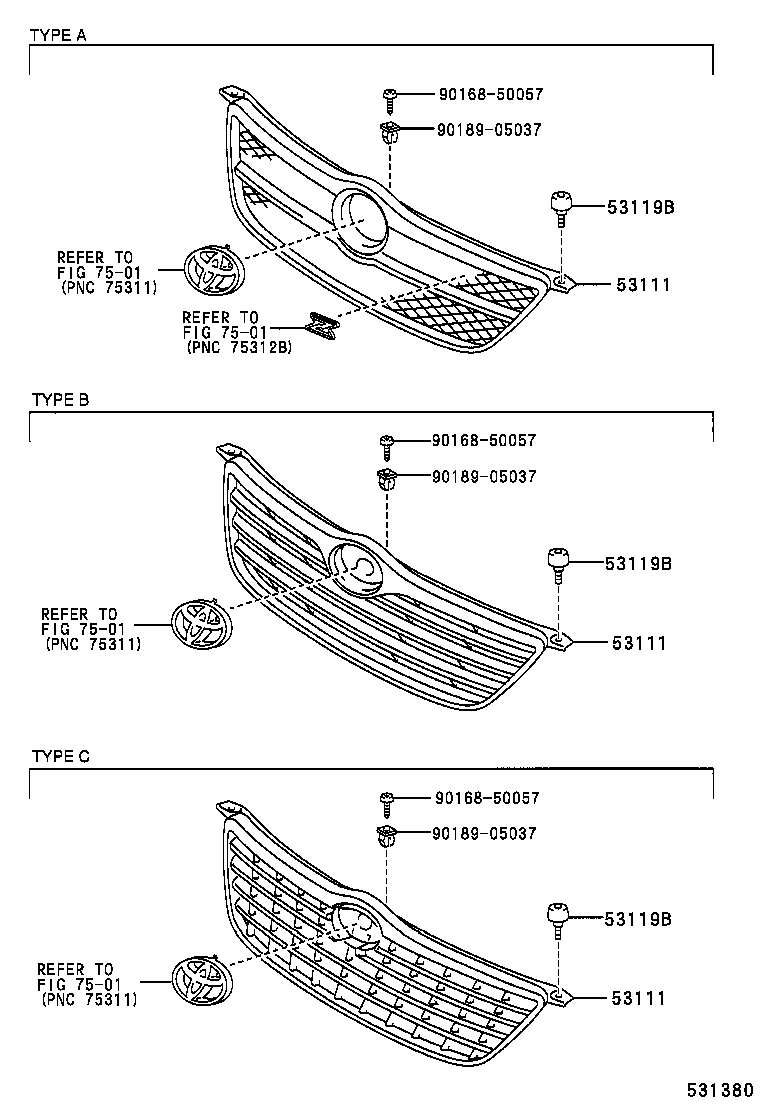

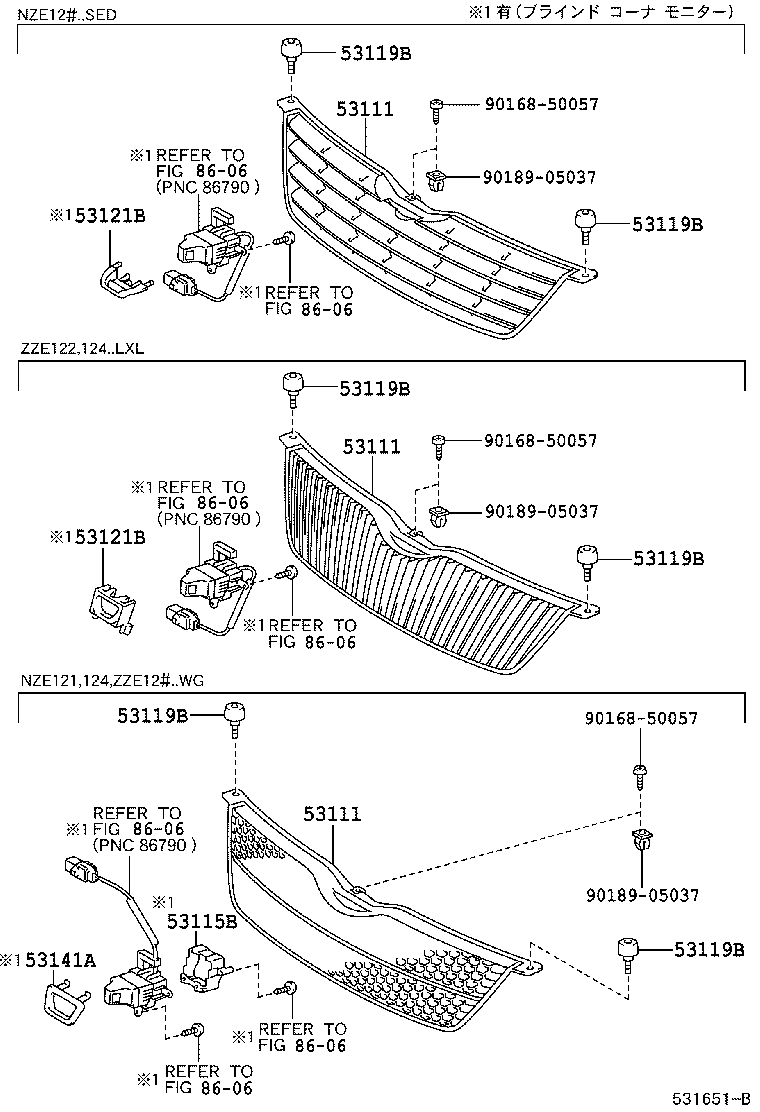

Radiator Grille
5 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 53111 | Grille, Radiator |
| 53115B | Bracket, Radiator Grille |
| 53119B | Protector, Radiator Grille |
| 53121B | Moulding, Radiator Grille, Upper |
| 53141A | Garnish, Radiator Grille, Lower RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
