Toyota Corolla/Fielder
2000-08 → 2006-09 · chassis CE121,NZE12#,ZZE12# · catalogue 151150 · Japan
Discontinued model
Data version 2007-04

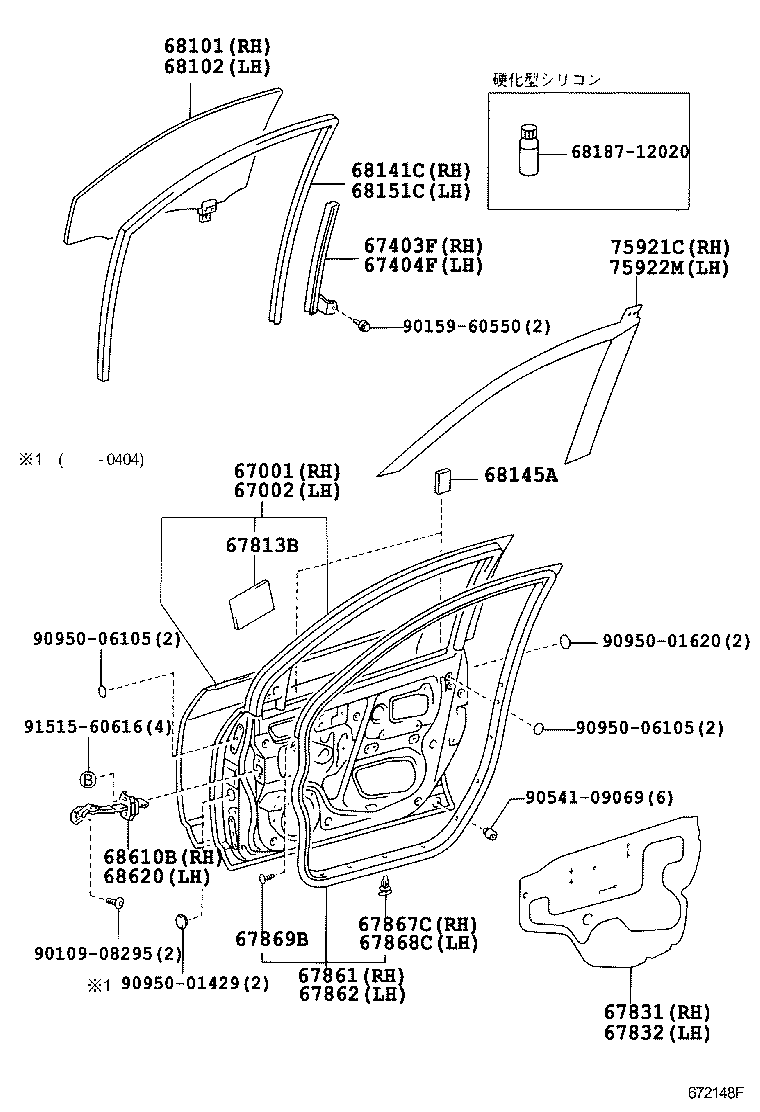

Front Door Panel & Glass
30 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67499 | Retainer, Front Door Lower Frame Bracket Garnish |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601A | Retainer(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67602A | Retainer, Door Trim, LH |
| 67813B | Packing, Door Protector |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 67869B | Clip, Front Door Weatherstrip |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141C | Run, Front Door Glass, RH |
| 68145A | Cushion, Front Door Window |
| 68151C | Run, Front Door Glass, LH |
| 68170 | Weatherstrip Assy, Front Door Glass, Inner |
| 68610B | Check Assy, Front Door, RH |
| 68620 | Check Assy, Front Door, LH |
| 75921C | Tape, Black Out, NO.1 RH |
| 75922M | Tape, Black Out, NO.1 LH |
| 86262E | Cover, Speaker, Front |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
