Toyota Corolla/Fielder

2000-08 → 2006-09 · chassis CE121,NZE12#,ZZE12# · catalogue 151150 · Japan

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

7 part groups · 2 illustrations

Illustrations

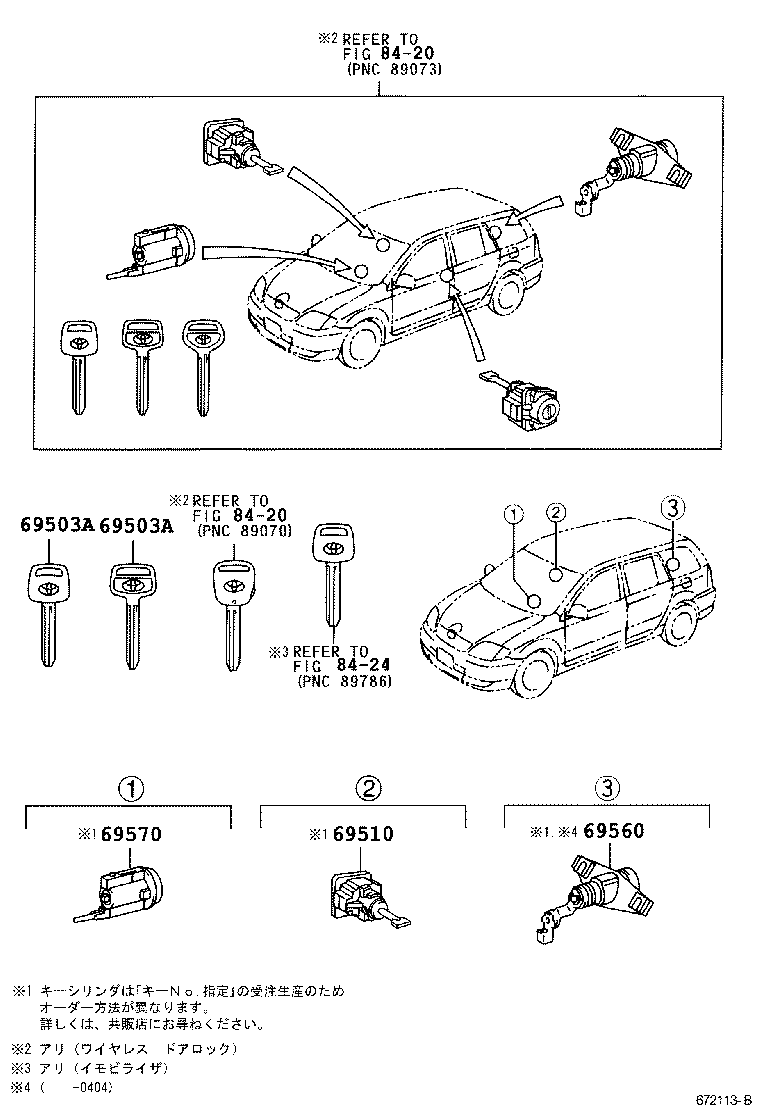

Figure 672112C 672112C 2000-08 → 2006-09 Figure 672113C 672113C 2000-08 → 2006-09

Part groups

PNCDescription
69503 Cylinder Set, Lock
69503A Key, Blank
69510 Cylinder Assy, Front Door Lock, RH
69520 Cylinder Assy, Front Door Lock, LH
69560 Cylinder Assy, Back Door Lock
69560A Cylinder Assy, Luggage Compartment Door Lock
69570 Cylinder Assy, Ignition Switch Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
