Toyota Corolla/Fielder

2000-08 → 2006-09 · chassis CE121,NZE12#,ZZE12# · catalogue 151150 · Japan

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

20 part groups · 4 illustrations

Illustrations

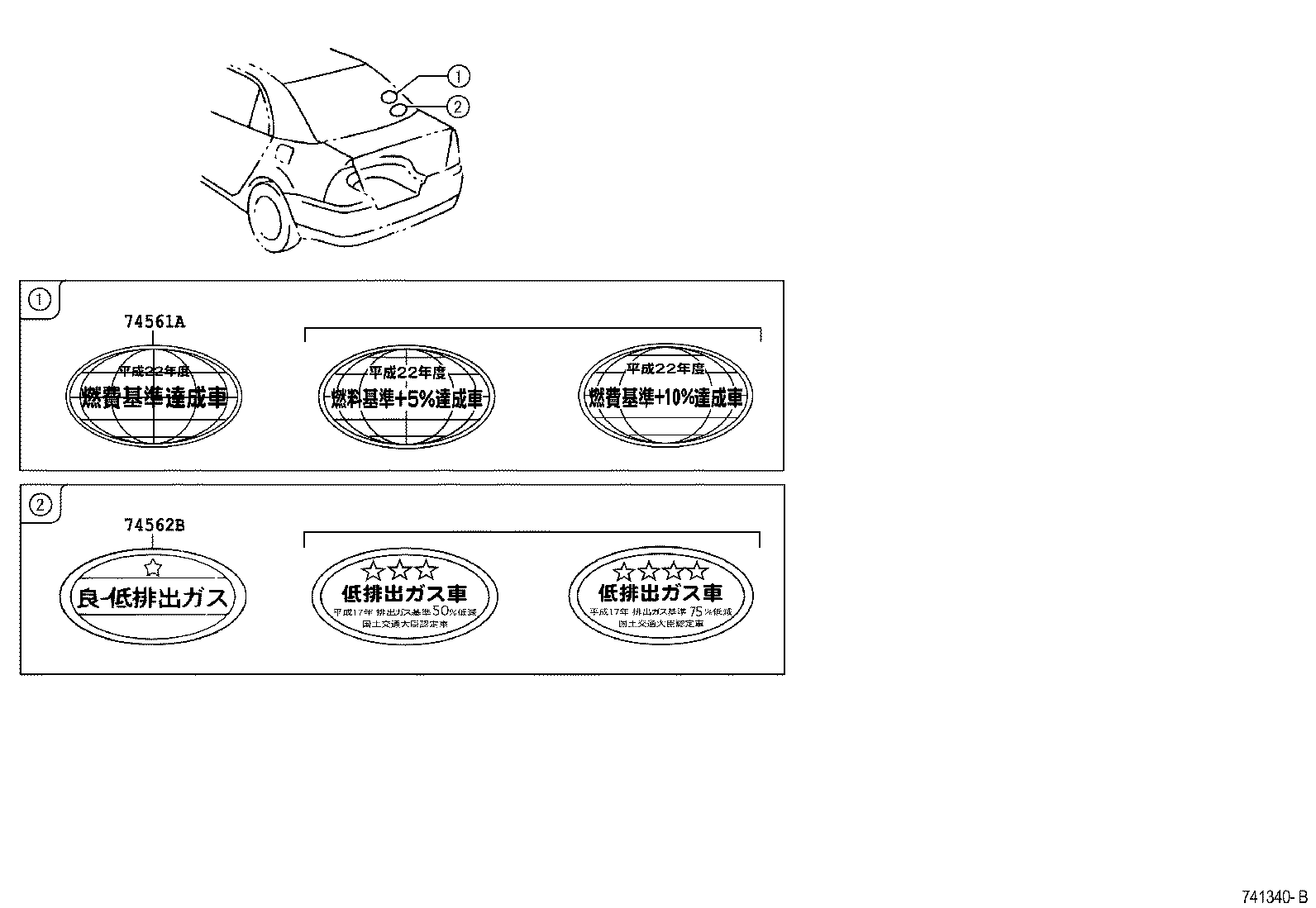

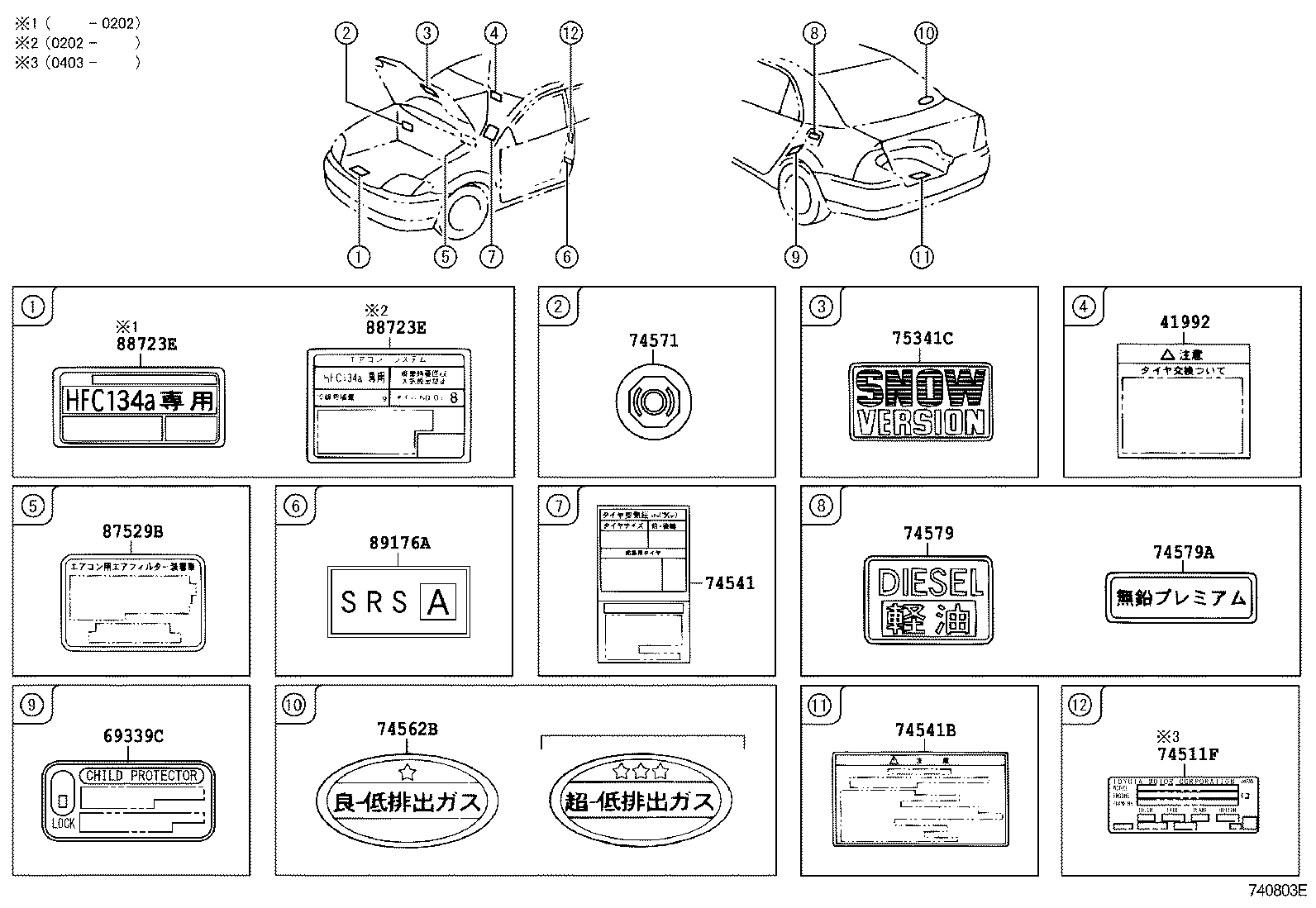

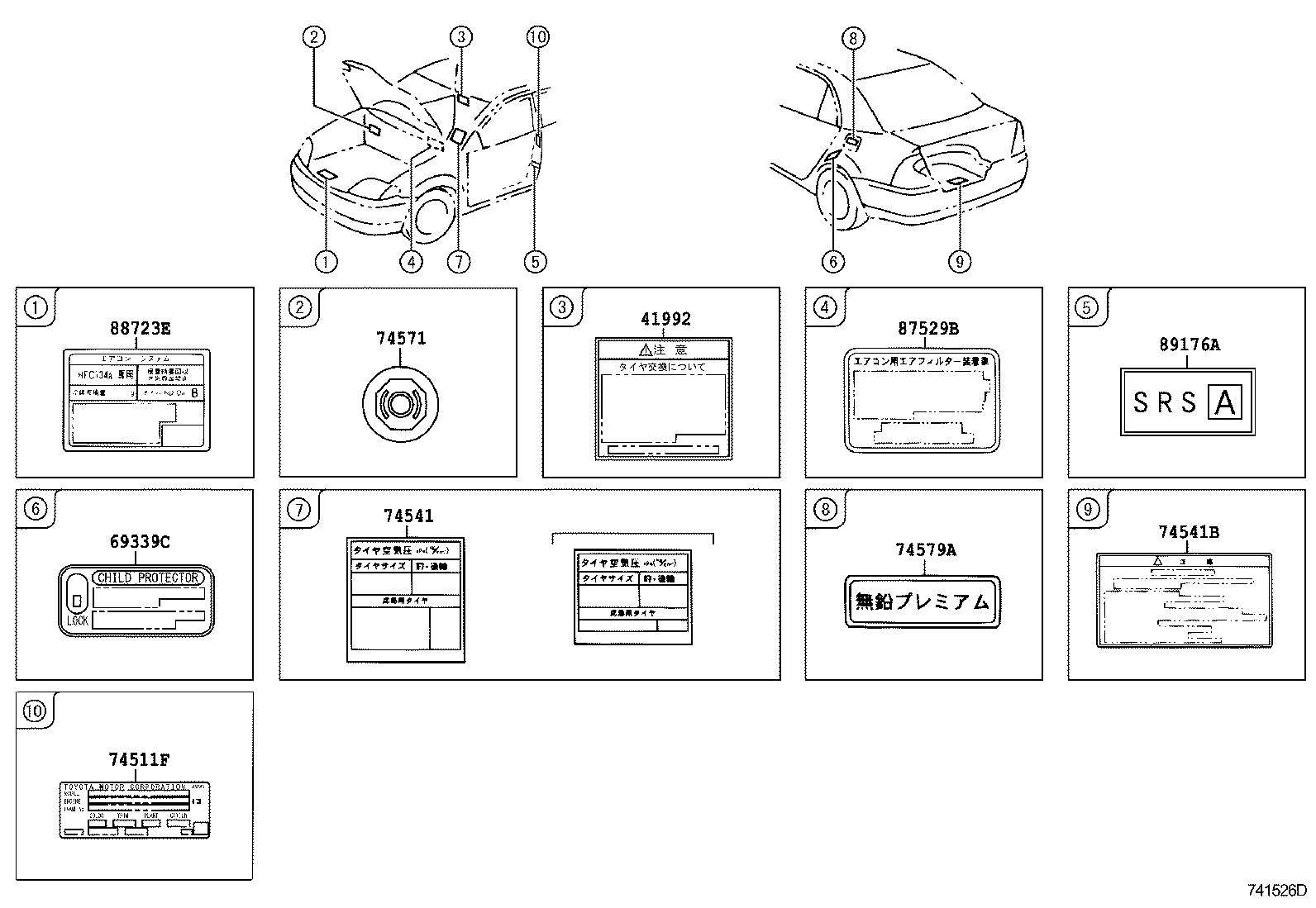

Figure 745520A 745520A 2000-08 → — Figure 740803E 740803E 2000-08 → 2004-04 Figure 741526D 741526D 2004-04 → — Figure 741340B 741340B 2004-04 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11296C Label, Engine Service Information
11296D Label, Engine Service Information
13564 Label, Timing Belt Replacement Information
16793E Label, Cooling Fan Caution
17791A Label, Maintenance Information
41992 Label, Differential Notice
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74541 Plate, Tire Pressure Caution
74541B Plate, Compact Spare Tire Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74571 Plate, Brake Fluid Caution
74579 Plate, Unleaded Fuel Caution
74579A Label, Unleaded Fuel Information
75341C Plate, Hood Name
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
