Factory parts data · Europe

Toyota Corolla/Fielder

2000-08 → 2006-09 · chassis CE121,NZE12#,ZZE12# · catalogue 151150 · Japan

Discontinued model Data version 2007-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

7 part groups · 4 illustrations

Illustrations

Figure 812429A

812429A 2000-08 → 2002-09

Figure 812429A

812429A 2002-09 → 2004-04

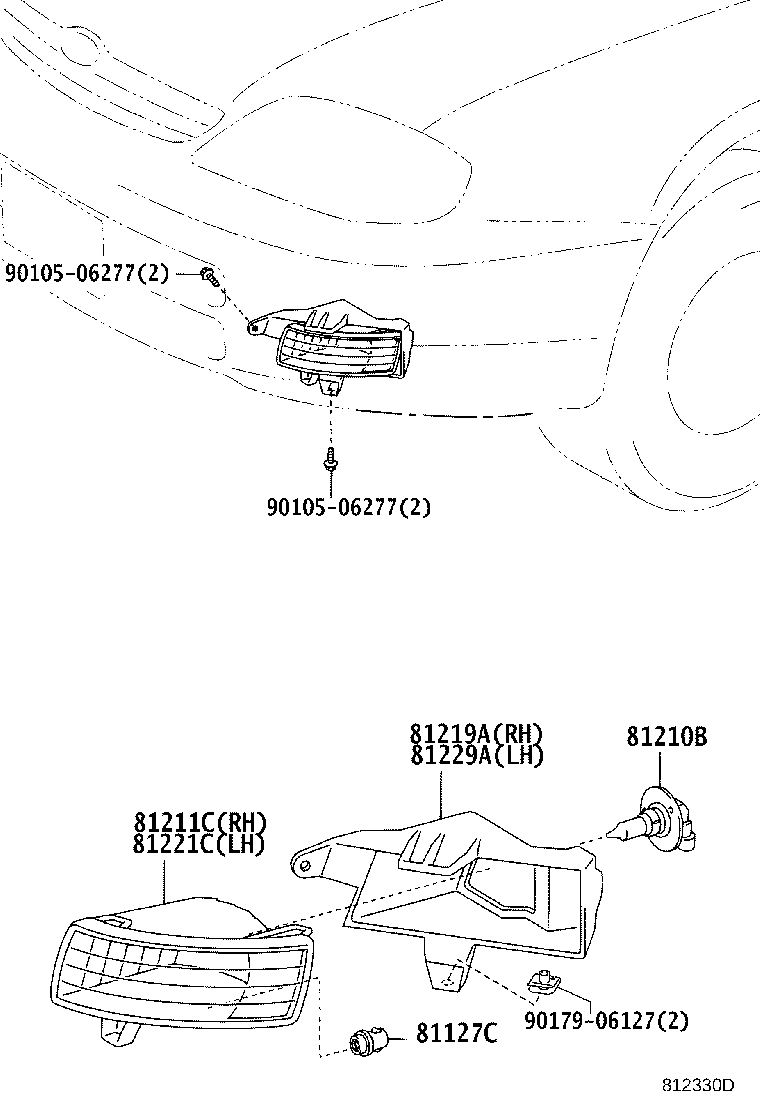

Figure 812330D

812330D 2002-09 → 2004-04

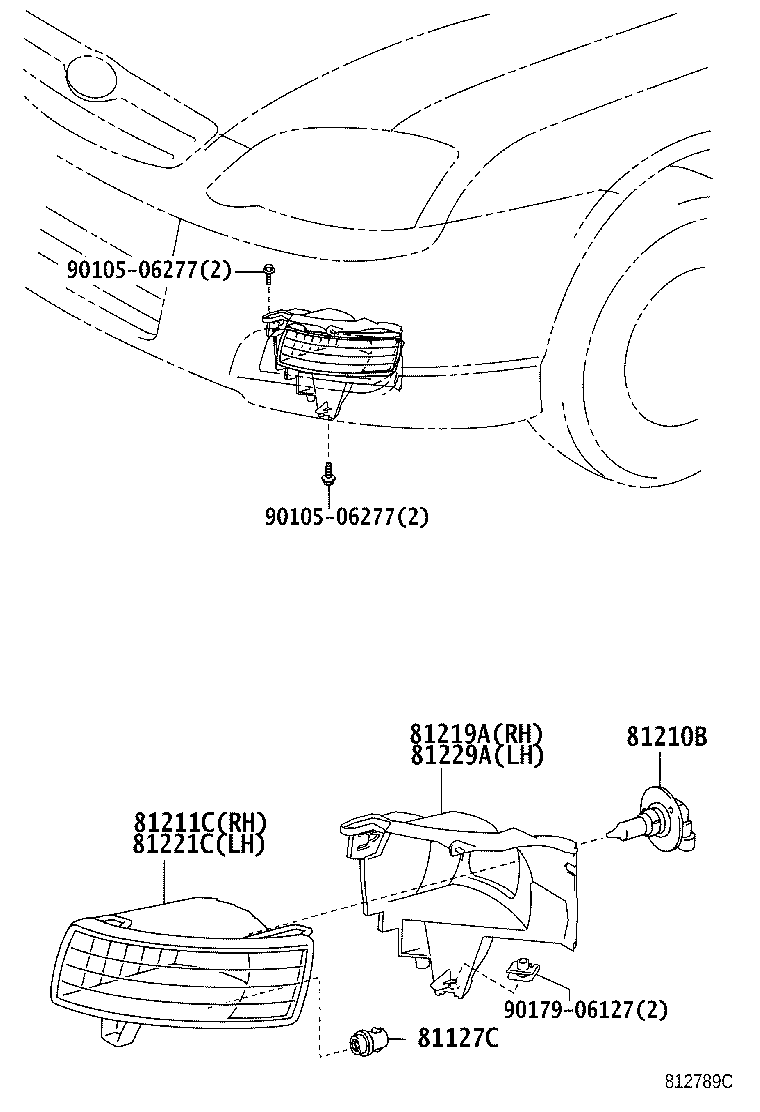

Figure 812789C

812789C 2004-04 → —

Part groups

PNC	Description
81127C	Bearing Fog Lamp
81210B	Bulb, Fog Lamp
81211C	Lamp Unit, Fog Lamp, RH
81219A	Bracket, Fog Lamp, RH
81221C	Lamp Unit, Fog Lamp, LH
81229A	Bracket, Fog Lamp, LH
81481	Bracket, Fog Lamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
