Toyota Corolla/Fielder

2000-08 → 2006-09 · chassis CE121,NZE12#,ZZE12# · catalogue 151150 · Japan

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

13 part groups · 8 illustrations

Illustrations

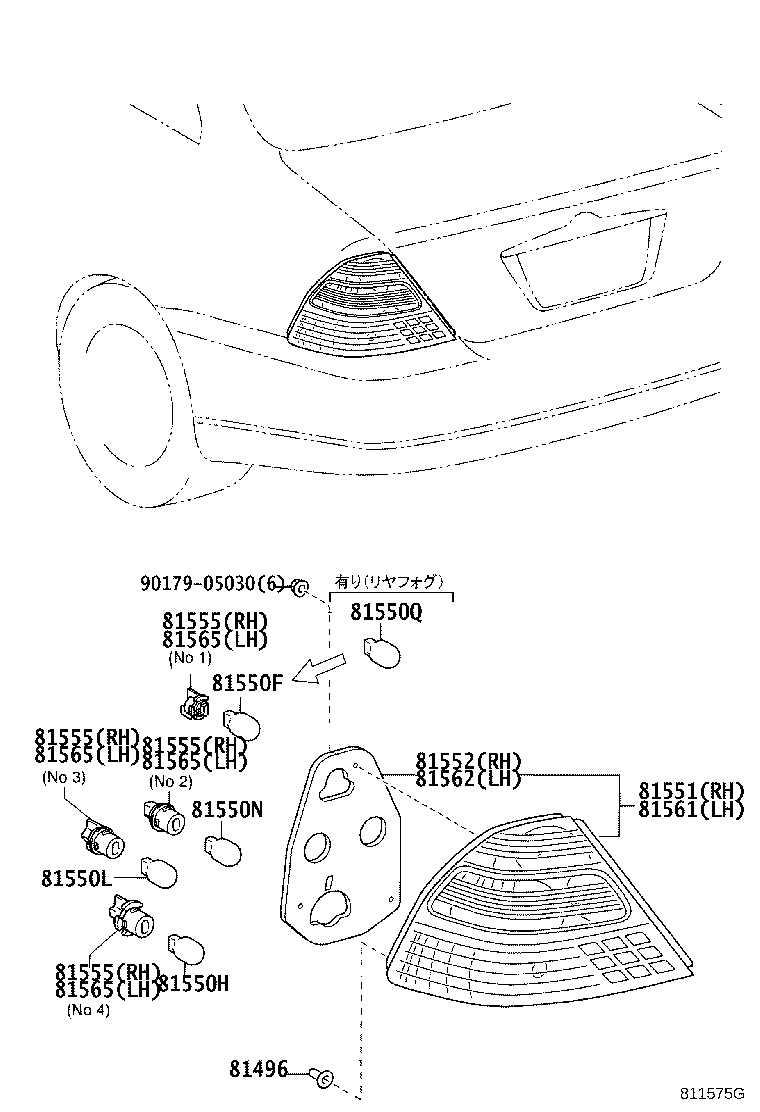

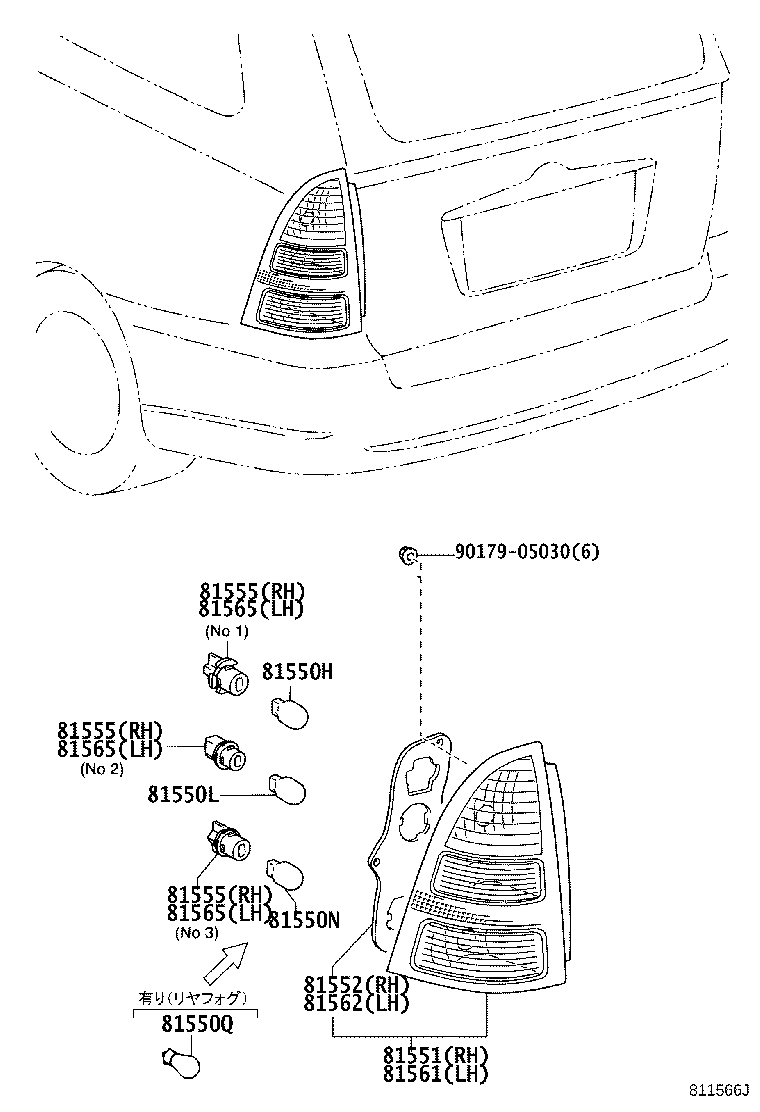

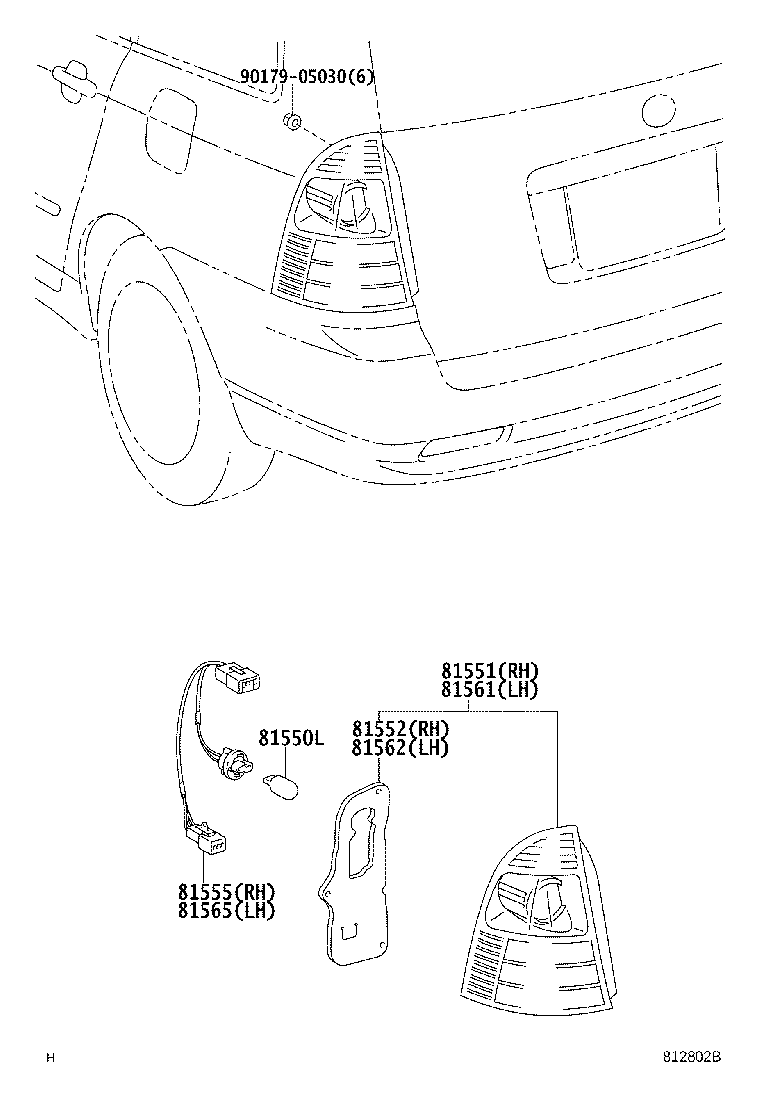

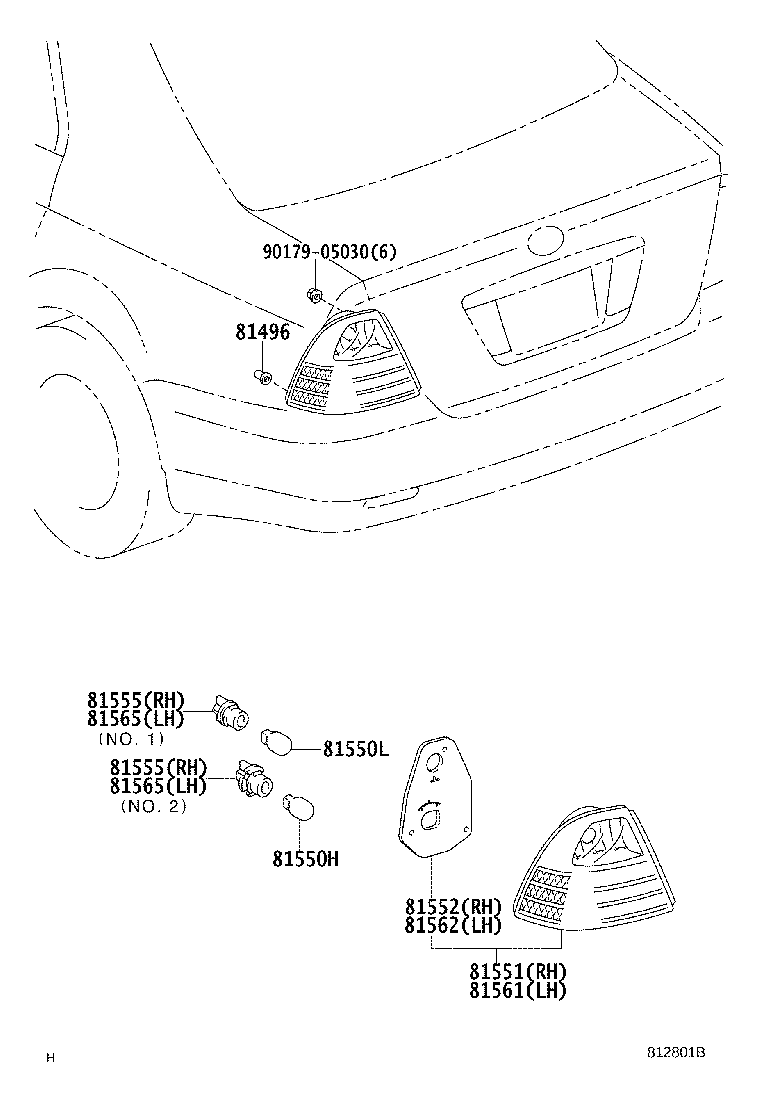

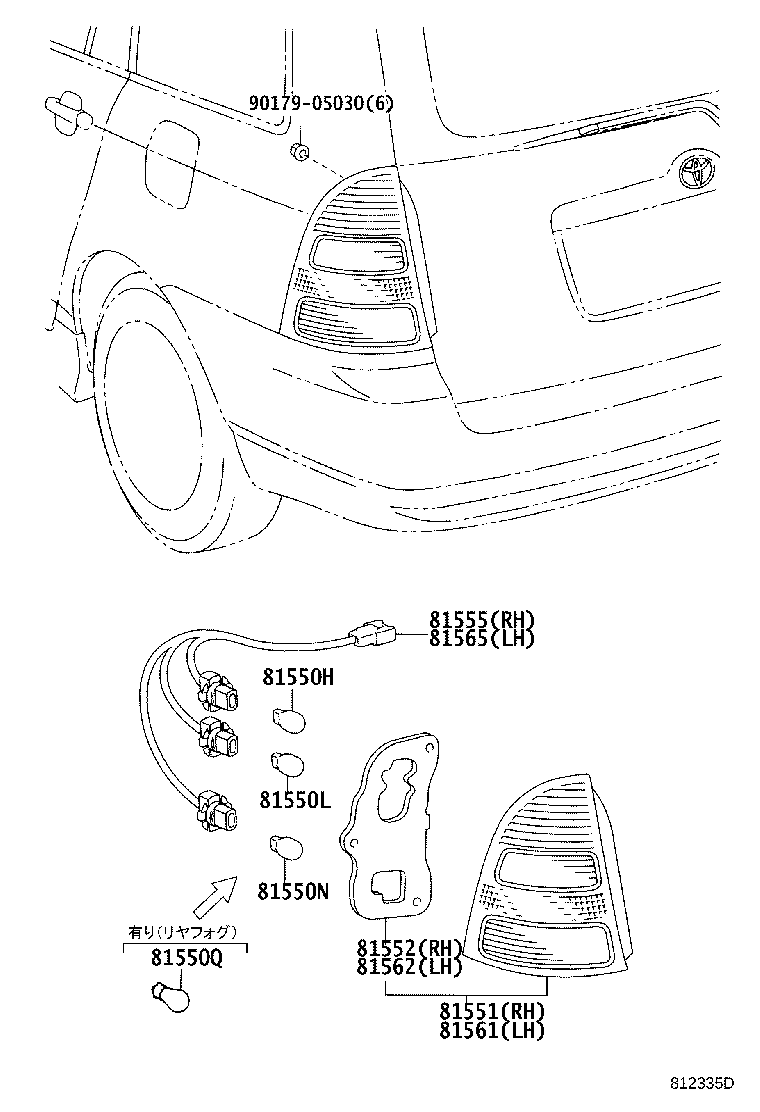

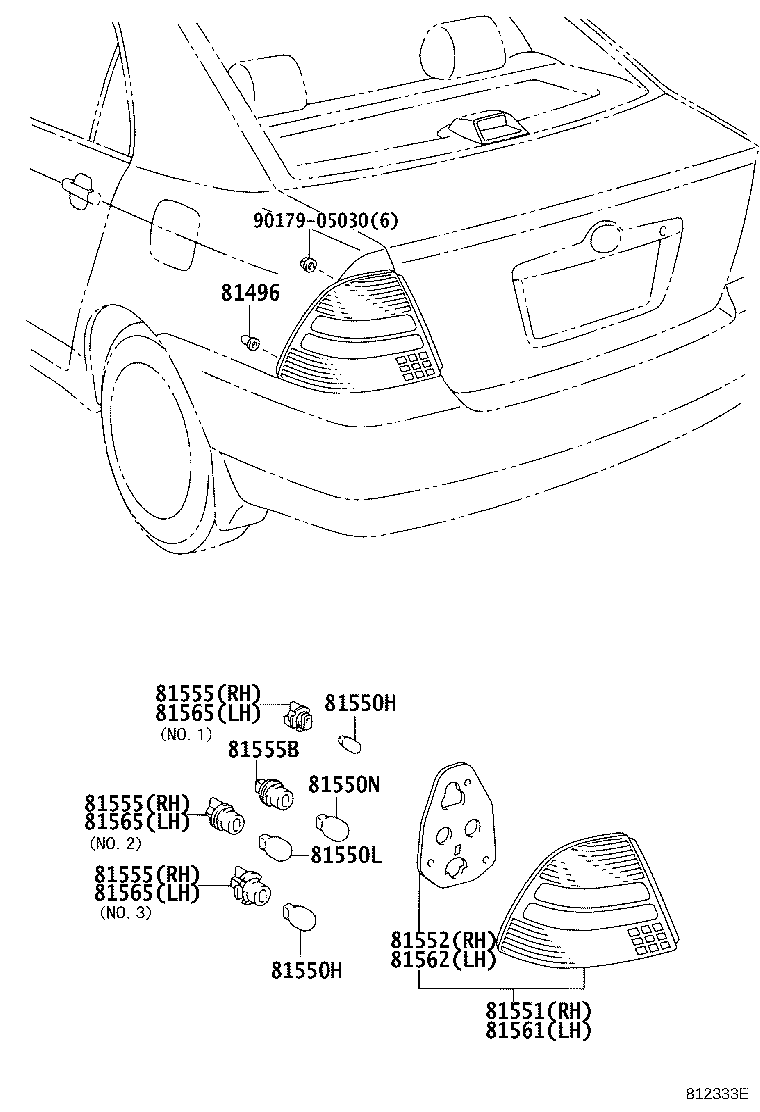

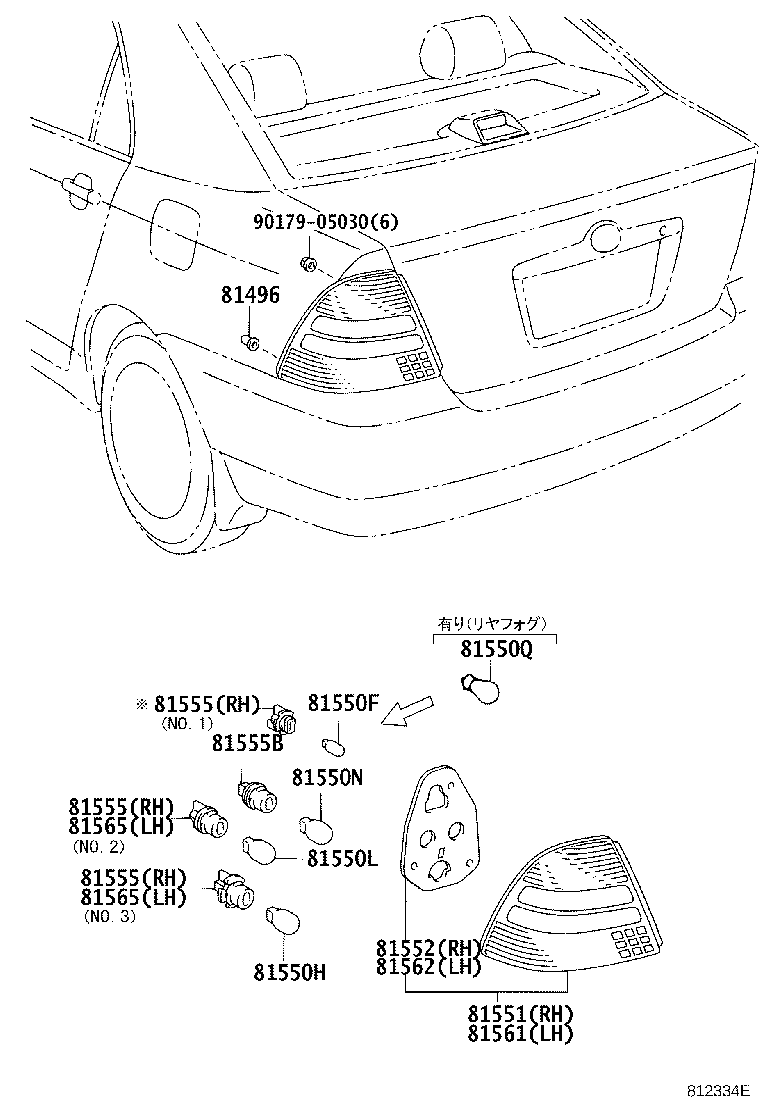

Figure 811565I 811565I 2000-08 → 2002-09 Figure 811575G 811575G 2000-08 → 2002-09 Figure 811566J 811566J 2000-08 → 2002-09 Figure 812333E 812333E 2002-09 → 2004-04 Figure 812334E 812334E 2002-09 → 2004-04 Figure 812335D 812335D 2002-09 → 2004-04 Figure 812801B 812801B 2004-04 → — Figure 812802B 812802B 2004-04 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81550F Bulb, Taillamp
81550H Bulb, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81550Q Bulb, Rear Fog Lamp, NO.1
81551 Lens, Rear Combination Lamp, RH
81552 Gasket, Rear Combination Lamp Lens, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81555B Socket Plug, NO.1
81561 Lens, Rear Combination Lamp, LH
81562 Gasket, Rear Combination Lamp Lens, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
