Toyota Corolla/Fielder

2000-08 → 2006-09 · chassis CE121,NZE12#,ZZE12# · catalogue 151150 · Japan

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back UP Lamp

10 part groups · 2 illustrations

Illustrations

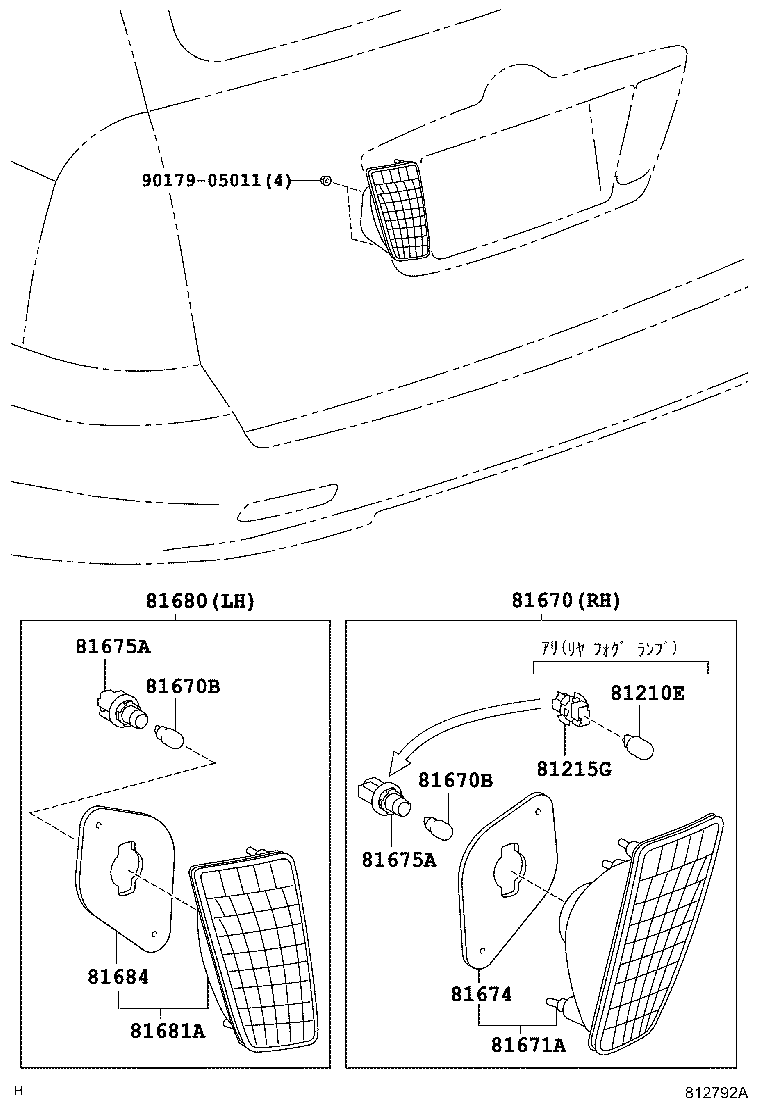

Figure 812791C 812791C 2004-04 → 2006-09 Figure 812792A 812792A 2004-04 → 2006-09

Part groups

PNCDescription
81210E Bulb, Rear Fog Lamp
81215G Socket,Rear Fog Lamp
81670 Lamp Assy, Back-up, RH
81670B Bulb(FOR BACK-UP LAMP)
81671A Lens & Body, Back-up Lamp
81674 Gasket, Back-up Lamp Body, RH
81675A Plug, Socket(FOR BACK-UP LAMP)
81680 Lamp Assy, Back UP, LH
81681A Lens & Body, Back-up Lamp, LH
81684 Gasket, Back UP Lamp Body, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
