Meter

4 part groups · 2 illustrations

Illustrations

Figure 830851A

830851A 2000-08 → —

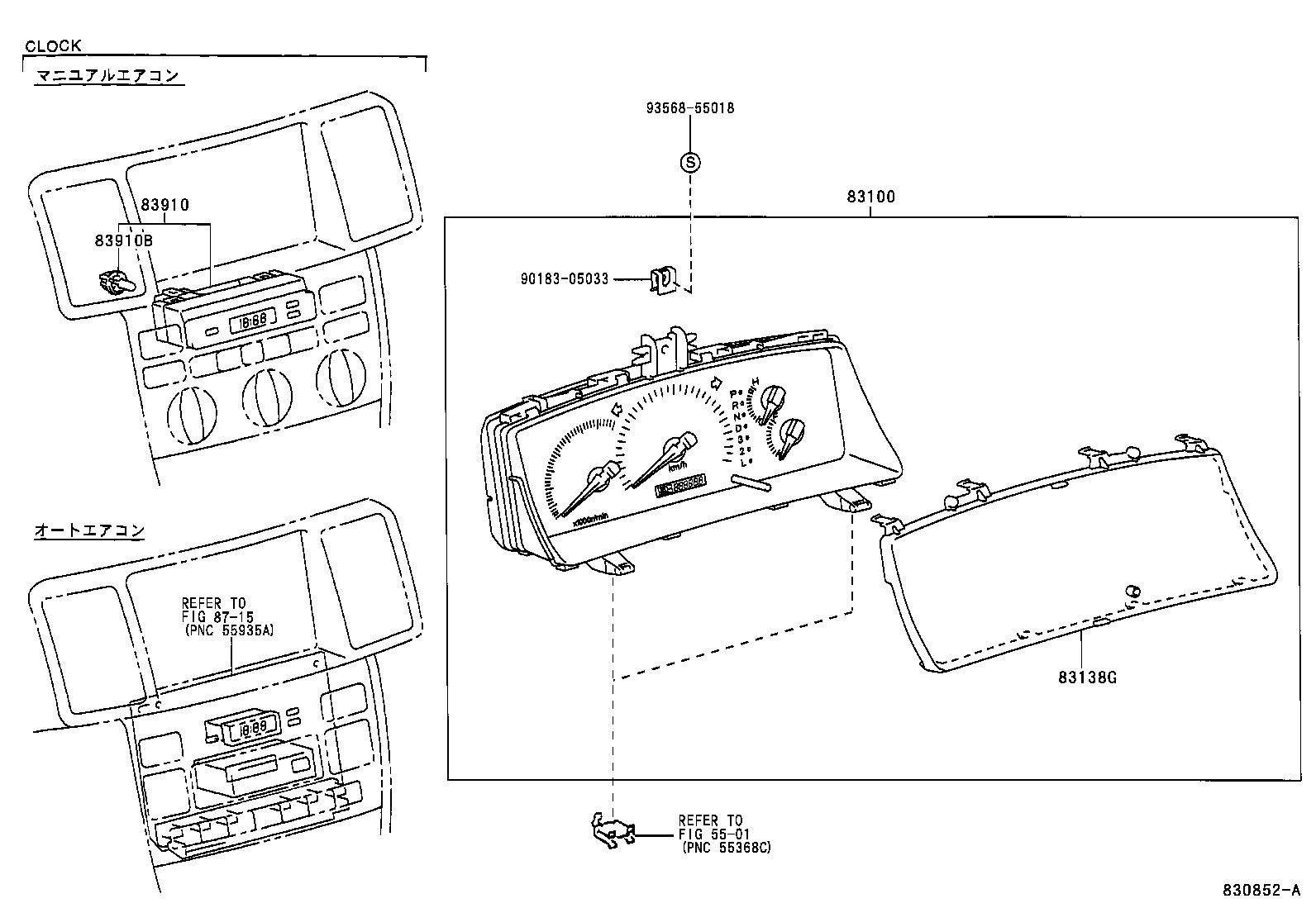

Figure 830852A

830852A 2000-08 → —

Part groups

PNC	Description
83100	Meter Assy, Combination
83138G	Glass, Combination Meter
83910	Clock Assy
83910B	Bulb, Clock Indicator

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
