Toyota Corolla/Fielder
2000-08 → 2006-09 · chassis CE121,NZE12#,ZZE12# · catalogue 151150 · Japan
Discontinued model
Data version 2007-04

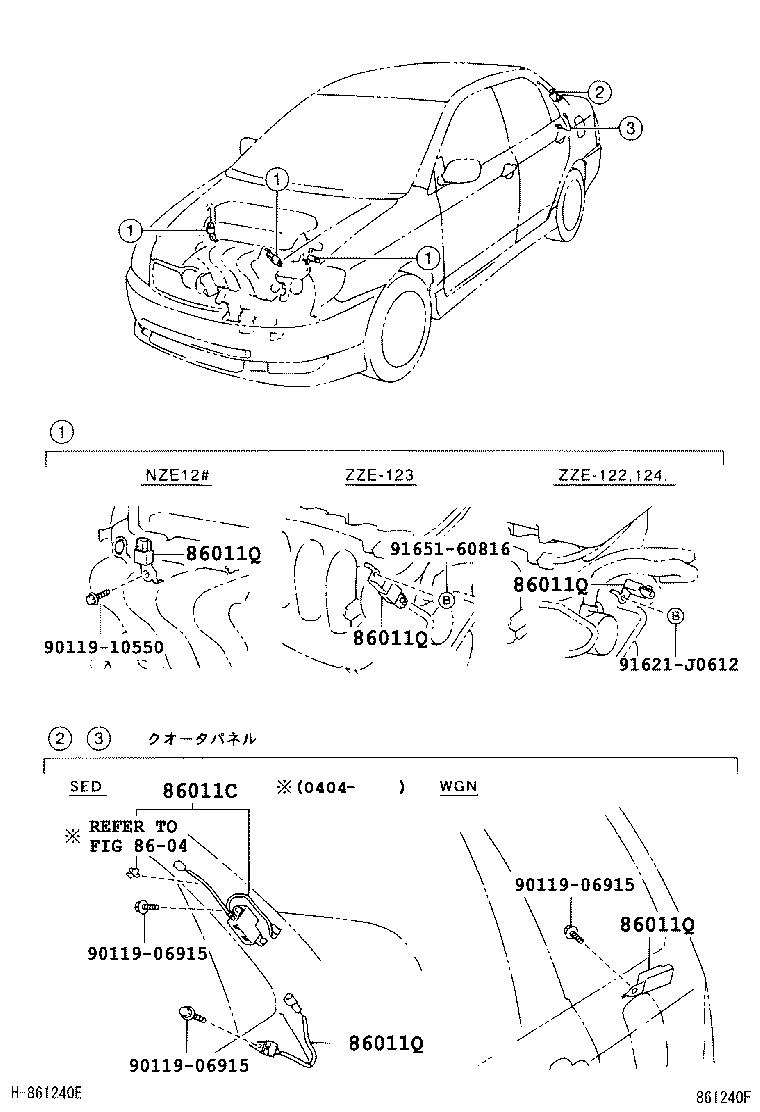

Radio Receiver & Amplifier & Condenser
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011C | Filter, Noise |
| 86011Q | Condenser, Radio Setting |
| 86120 | Receiver Assy, Radio |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86221D | Panel, Radio Receiver |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
