Toyota Corolla/Fielder
2000-08 → 2006-09 · chassis CE121,NZE12#,ZZE12# · catalogue 151150 · Japan
Discontinued model
Data version 2007-04
Antenna
7 part groups · 2 illustrations
Part groups

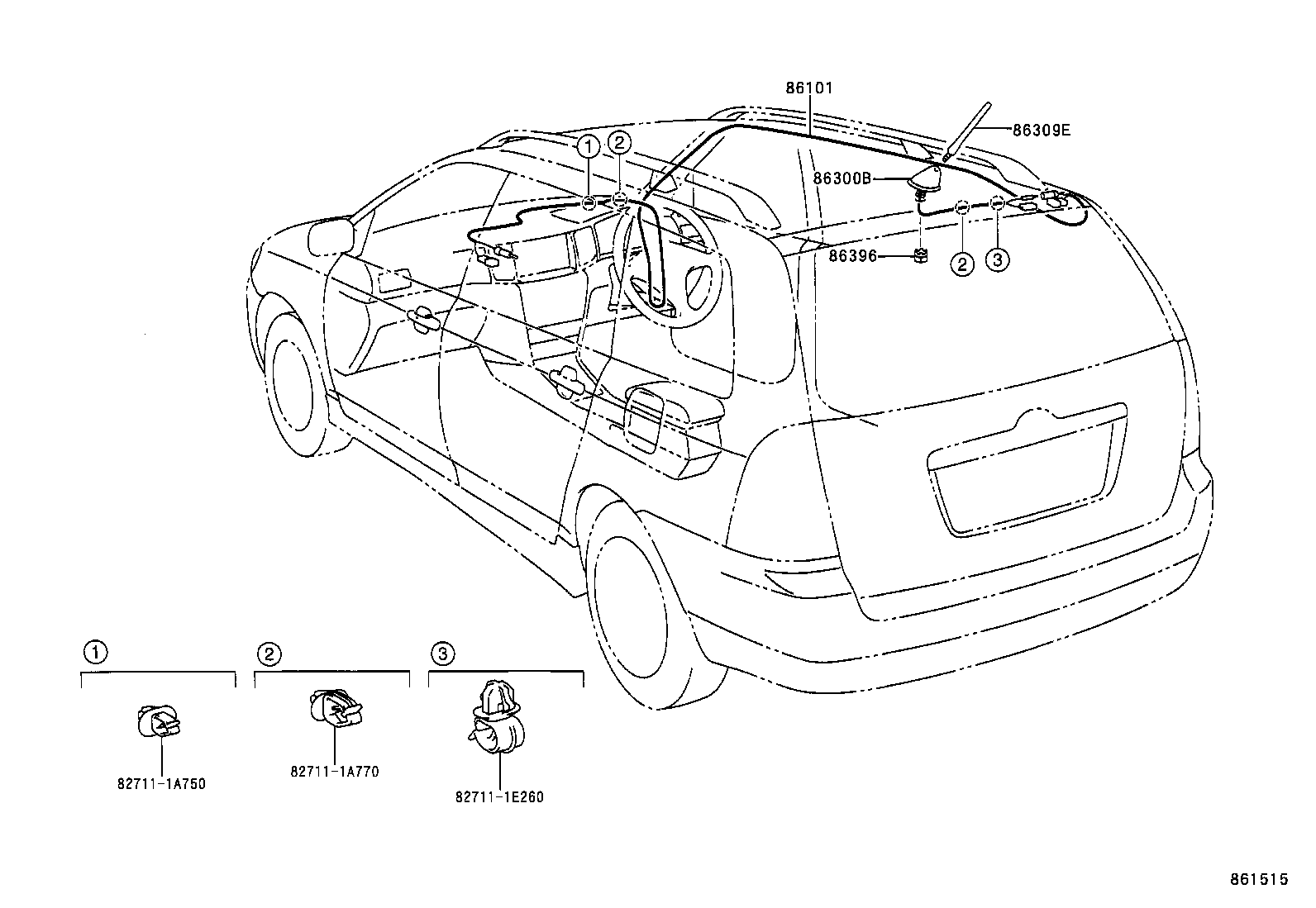

| PNC | Description |
|---|---|
| 86050 | Antenna Assy, Television |
| 86101 | Cord Sub-assy, Antenna |
| 86300 | Antenna Assy, W/Holder |
| 86300B | Antenna Assy, Amplifier, NO.1 |
| 86309E | Pole Sub-assy, Roof Antenna |
| 86396 | Nut, Antenna |
| 86860C | Antenna Assy, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
