Toyota Corolla/Fielder
2000-08 → 2006-09 · chassis CE121,NZE12#,ZZE12# · catalogue 151150 · Japan
Discontinued model
Data version 2007-04

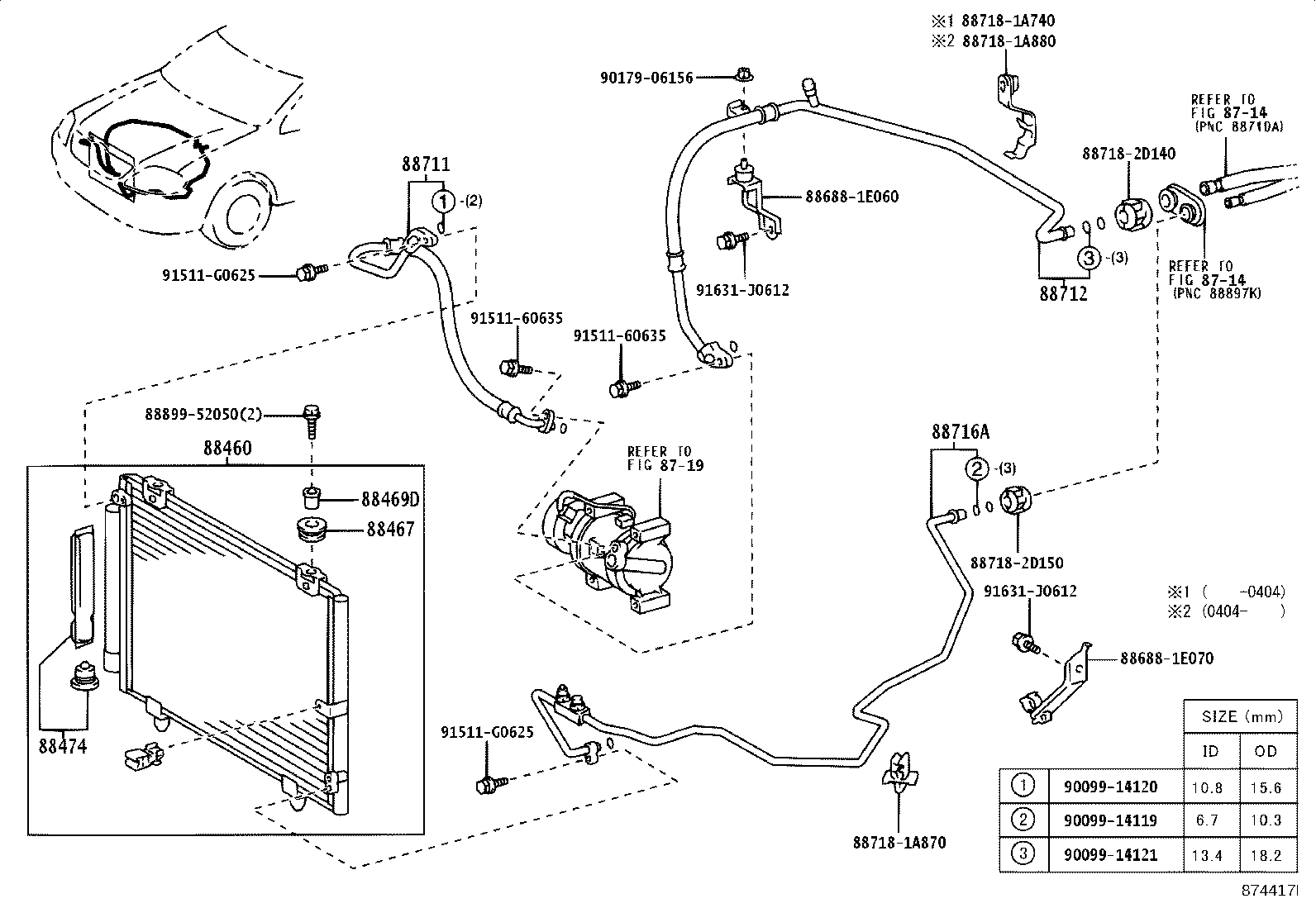

Heating & Air Conditioning - Cooler Piping
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88460 | Condenser Assy, Cooler |
| 88467 | Cushion, Cooler Condenser, NO.1 |
| 88469D | Collar, Condenser Bracket, NO.1 |
| 88474 | Dryer, Cooler |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88717 | Pipe, Cooler Refrigerant Suction, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
