Toyota Corolla Axio/Fielder

2006-09 → 2012-04 · chassis NZE14#,ZRE14# · catalogue 151160 · Japan

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

11 part groups · 2 illustrations

Illustrations

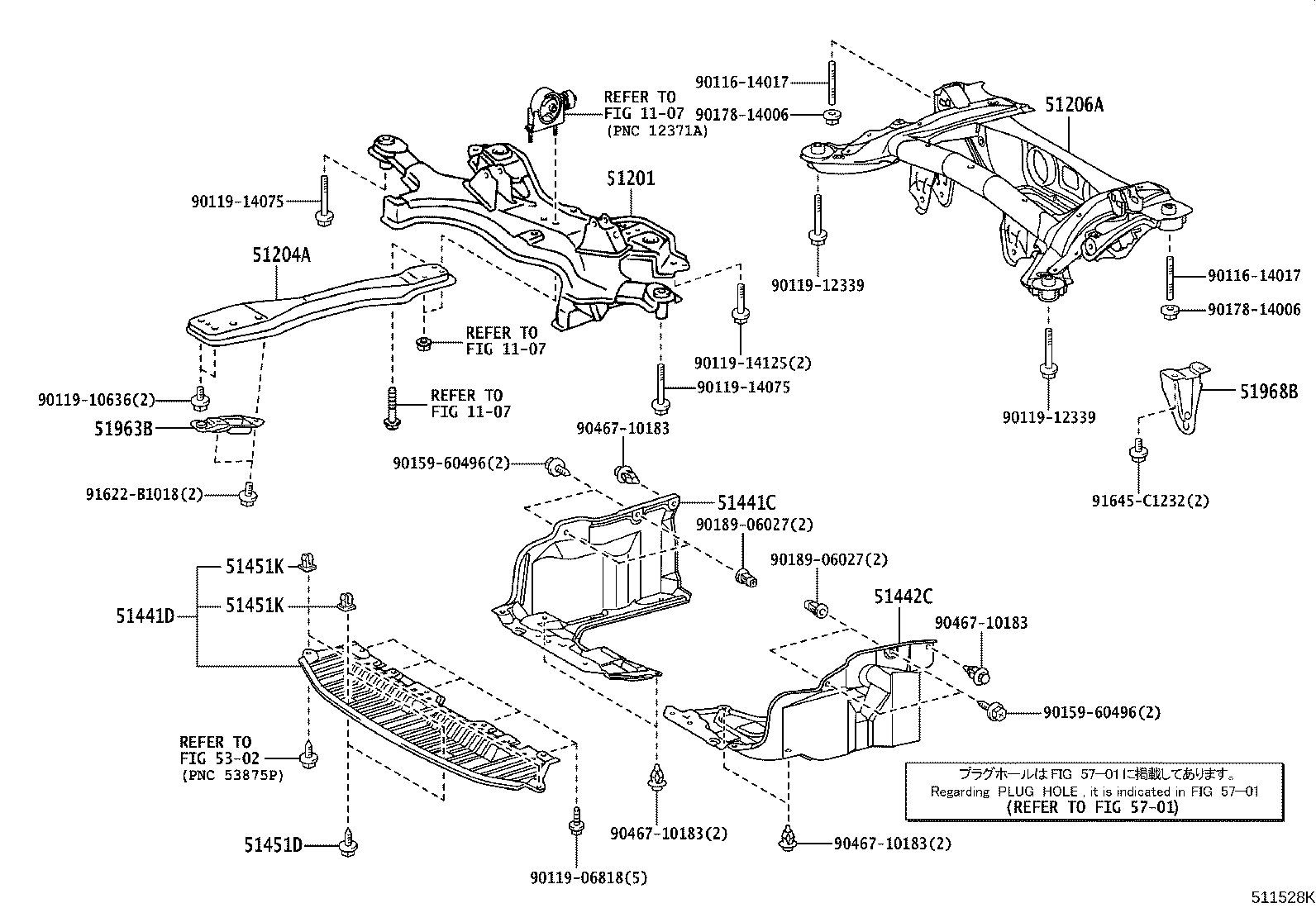

Figure 511527I 511527I 2006-09 → — Figure 511528K 511528K 2006-09 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51204A Member Sub-assy, Engine Mounting, Center
51206A Member Sub-assy, Rear Suspension
51227B Damper, Front Suspension Member Dynamic
51441C Cover, Engine Under, RH
51441D Cover, Engine Under
51442C Cover, Engine Under, LH
51451D Screw, NO.1
51451K Grommet, Screw, NO.1
51963B Hook, Transport, Front RH
51968B Hook, Transport, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
