Toyota Corolla Axio/Fielder
2006-09 → 2012-04 · chassis NZE14#,ZRE14# · catalogue 151160 · Japan
Supported model
Data version 2012-04

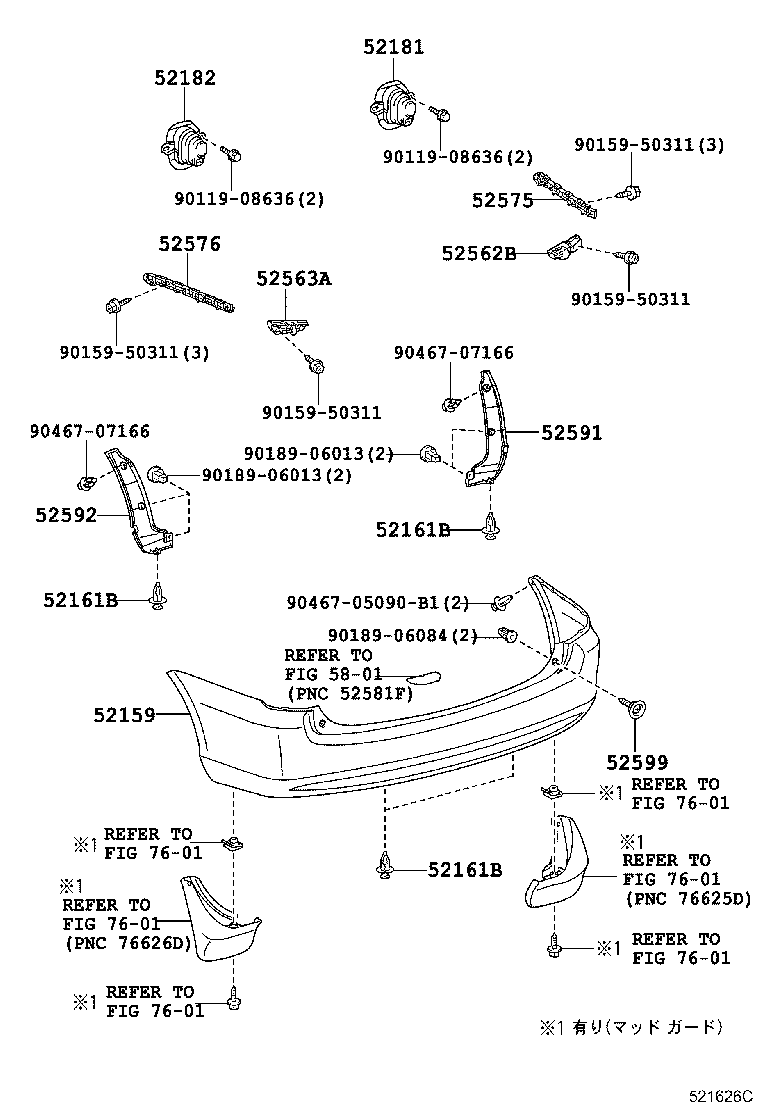

Rear Bumper & Bumper Stay
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52159 | Cover, Rear Bumper |
| 52161B | Piece, Rear Bumper |
| 52181 | Arm, Rear Bumper, RH |
| 52182 | Arm, Rear Bumper, LH |
| 52562B | Retainer, Rear Bumper, Upper RH |
| 52563A | Retainer, Rear Bumper, Upper LH |
| 52575 | Retainer, Rear Bumper Side, RH |
| 52576 | Retainer, Rear Bumper Side, LH |
| 52591 | Seal, Rear Bumper Side, RH |
| 52592 | Seal, Rear Bumper Side, LH |
| 52599 | Stopper, Rear Bumper, Upper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
