Toyota Corolla Axio/Fielder

2006-09 → 2012-04 · chassis NZE14#,ZRE14# · catalogue 151160 · Japan

Supported model Data version 2012-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

5 part groups · 2 illustrations

Illustrations

Figure 532349H

532349H 2006-09 → 2008-10

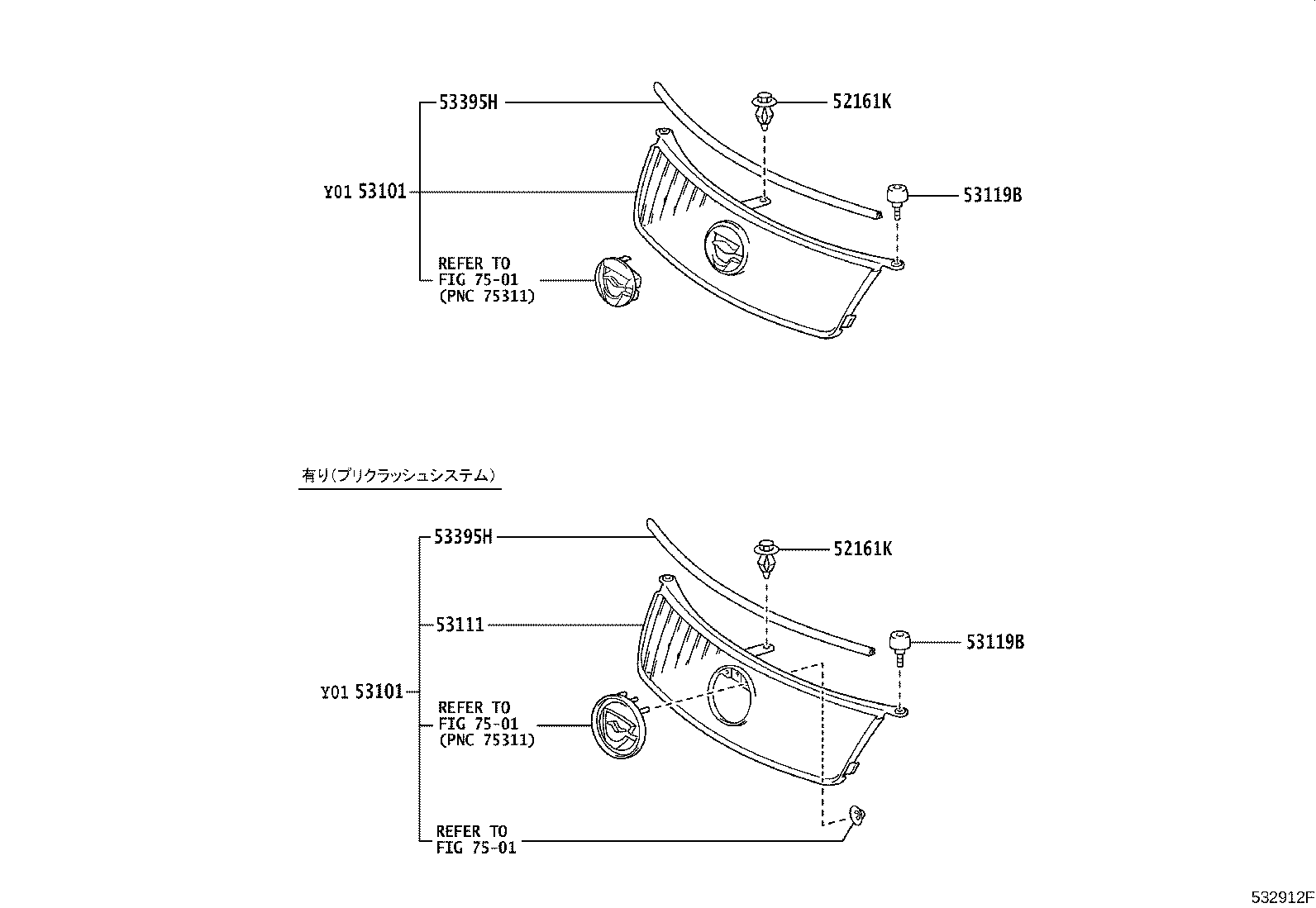

Figure 532912F

532912F 2008-10 → —

Part groups

PNC	Description
52161K	Piece, Front Bumper
53101	Grille Sub-assy, Radiator
53111	Grille, Radiator
53119B	Protector, Radiator Grille
53395H	Seal, Hood TO Radiator Grille

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
