Toyota Corolla Axio/Fielder
2006-09 → 2012-04 · chassis NZE14#,ZRE14# · catalogue 151160 · Japan
Supported model
Data version 2012-04
Floor Pan & Lower Back Panel

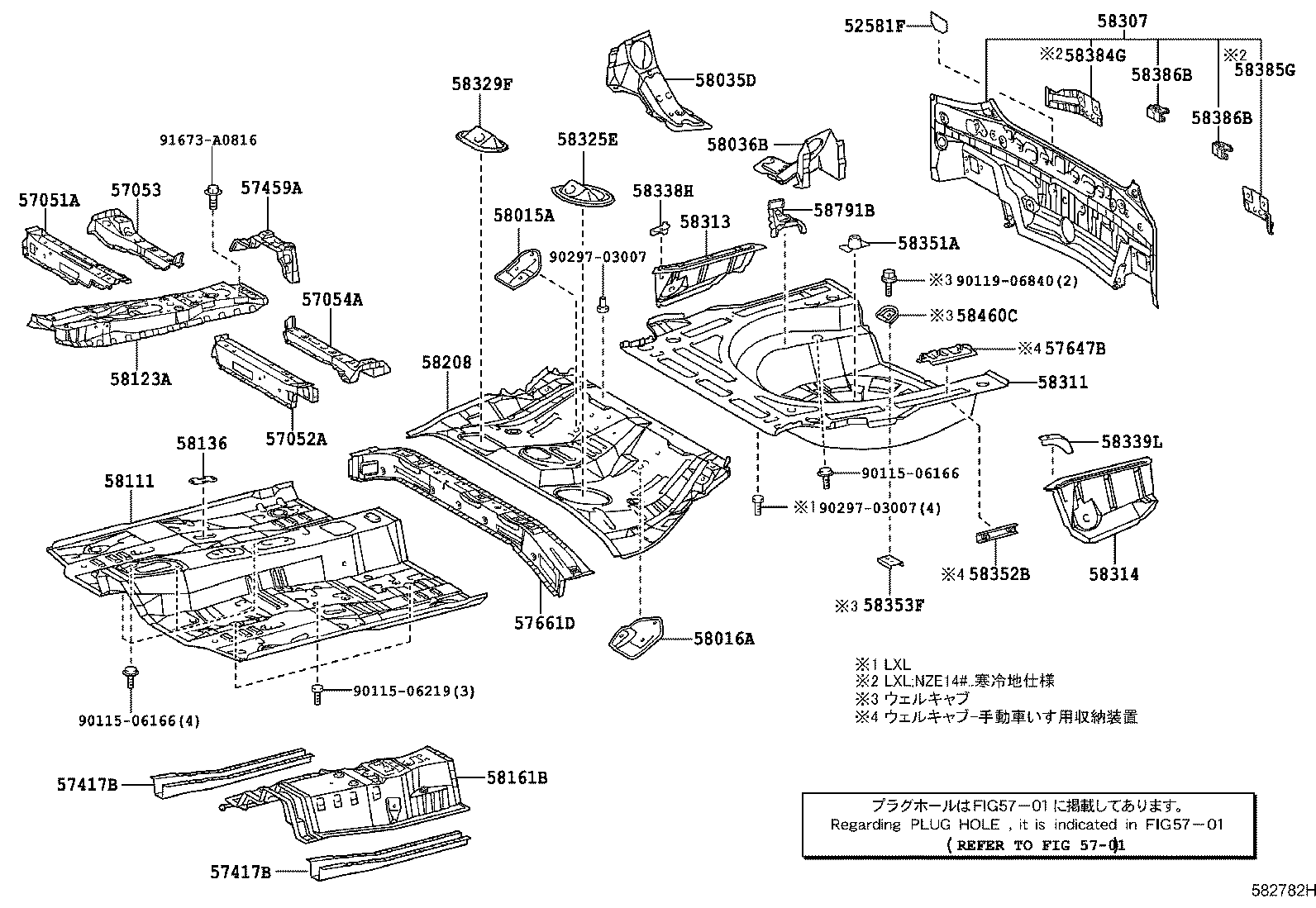

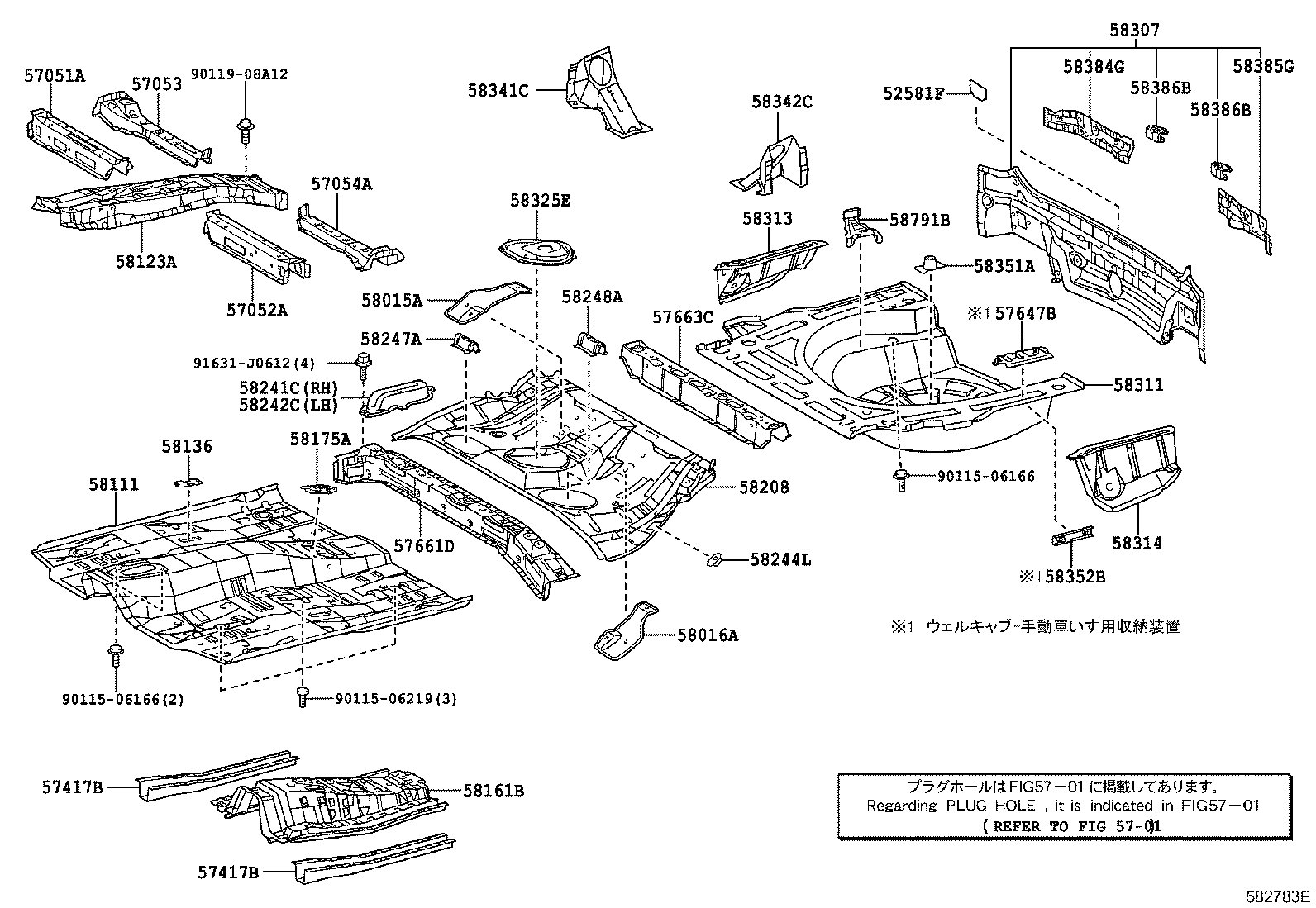

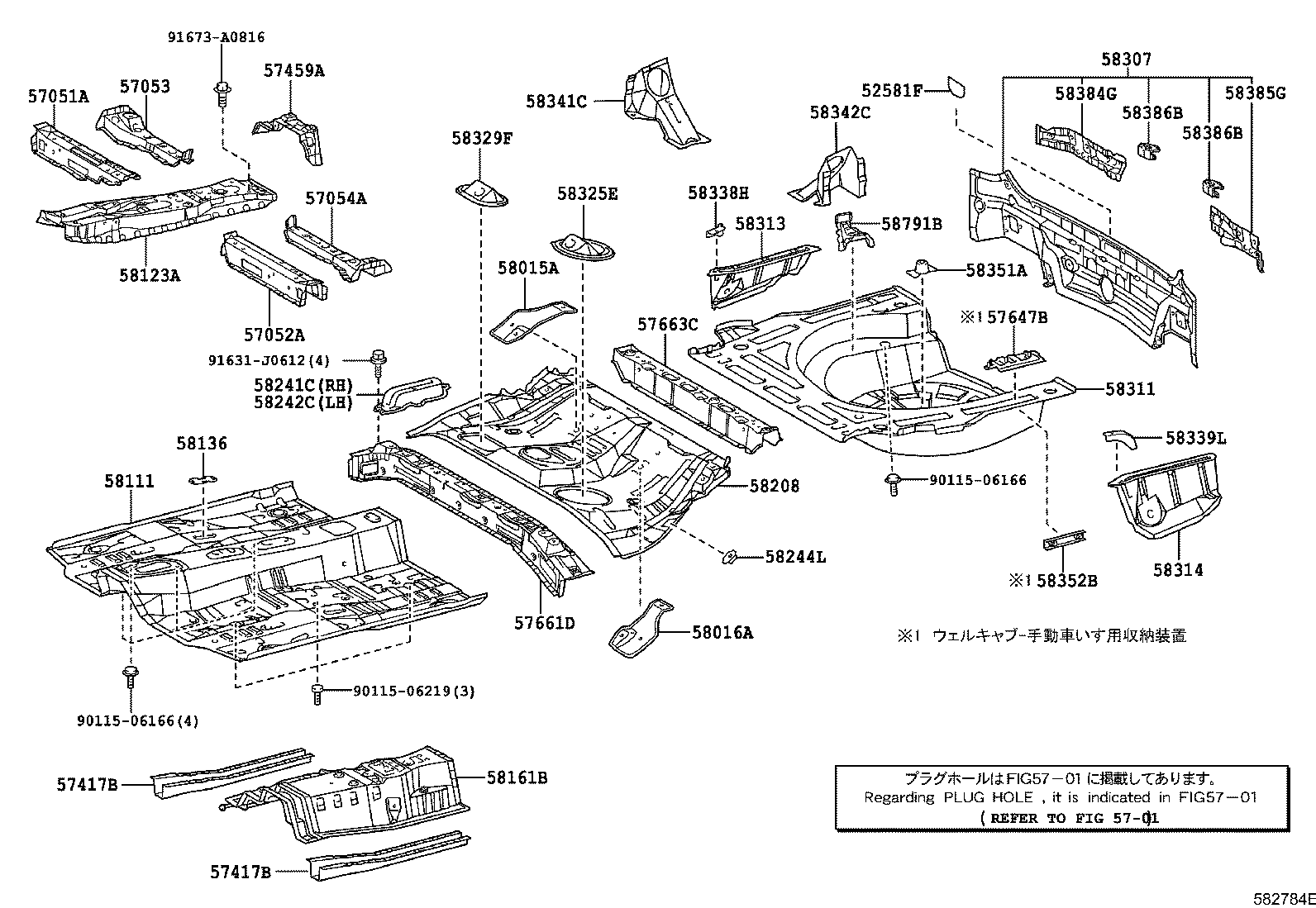

45 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52581F | Protector, Rear Bumper |
| 57051A | Member Sub-assy, Front Floor Cross, RH |
| 57052A | Member Sub-assy, Front Floor Cross, LH |
| 57053 | Reinforcement Sub-assy, Front Floor Crossmember, RH |
| 57054A | Reinforcement Sub-assy, Front Floor Crossmember, LH |
| 57417B | Reinforcement, Front Floor Under |
| 57459A | Member, Front Floor Cross, NO.2 |
| 57647B | Reinforcement, Rear Side Member TO Body, LH |
| 57661D | Member, Rear Floor Cross, Front |
| 57663C | Member, Rear Floor Cross, Center |
| 58015A | Reinforce Sub-assy, Belt Anchor, NO.3 RH |
| 58016A | Reinforce Sub-assy, Belt Anchor, NO.3 LH |
| 58035D | Extension Sub-assy, Rear Floor Side Panel, RH |
| 58036B | Extension Sub-assy, Rear Floor Side Panel, LH |
| 58111 | Pan, Front Floor |
| 58123A | Support, Shift & Select Lever |
| 58136 | Cover, Front Floor Hole |
| 58161B | Reinforcement, Belt Anchor TO Floor Pan |
| 58175A | Reinforcement, Parking Brake Base, NO.1 |
| 58208 | Pan, Center Floor |
| 58241C | Panel, Floor Side, RH |
| 58242C | Panel, Floor Side, LH |
| 58244L | Bracket, Rear Seat Cushion Mounting, RH |
| 58247A | Reinforcement, Rear Seat Cushion Hinge, RH |
| 58248A | Reinforcement, Rear Seat Cushion Hinge, LH |
| 58305 | Bracket Sub-assy, Spare Wheel Clamp |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58313 | Panel, Rear Floor Side, RH |
| 58314 | Panel, Rear Floor Side, LH |
| 58325E | Cover, Rear Floor Service Hole |
| 58329F | Cover, Rear Floor Service Hole, NO.2 |
| 58338A | Reinforcement, Rear Floor Pan, NO.2 |
| 58338H | Reinforcement, Rear Floor Pan, NO.2 RH |
| 58339L | Reinforcement, Rear Floor Pan, NO.2 LH |
| 58341C | Bracket, Rear Absorber Mounting, NO.1 RH |
| 58342C | Bracket, Rear Absorber Mounting, NO.1 LH |
| 58351A | Bracket, Spare Wheel Carrier |
| 58352B | Reinforcement, Rear Floor Panel, LH |
| 58353F | Reinforcement, Rear Floor Panel, NO.3 |
| 58384G | Gusset, Lower Back, Upper RH |
| 58385G | Gusset, Lower Back, Upper LH |
| 58386B | Bracket, Rear Bumper Cover, NO.2 |
| 58460C | Striker Assy, Luggage Hold Belt |
| 58791B | Carrier, Jack |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
