Toyota Corolla Axio/Fielder

2006-09 → 2012-04 · chassis NZE14#,ZRE14# · catalogue 151160 · Japan

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

14 part groups · 3 illustrations

Illustrations

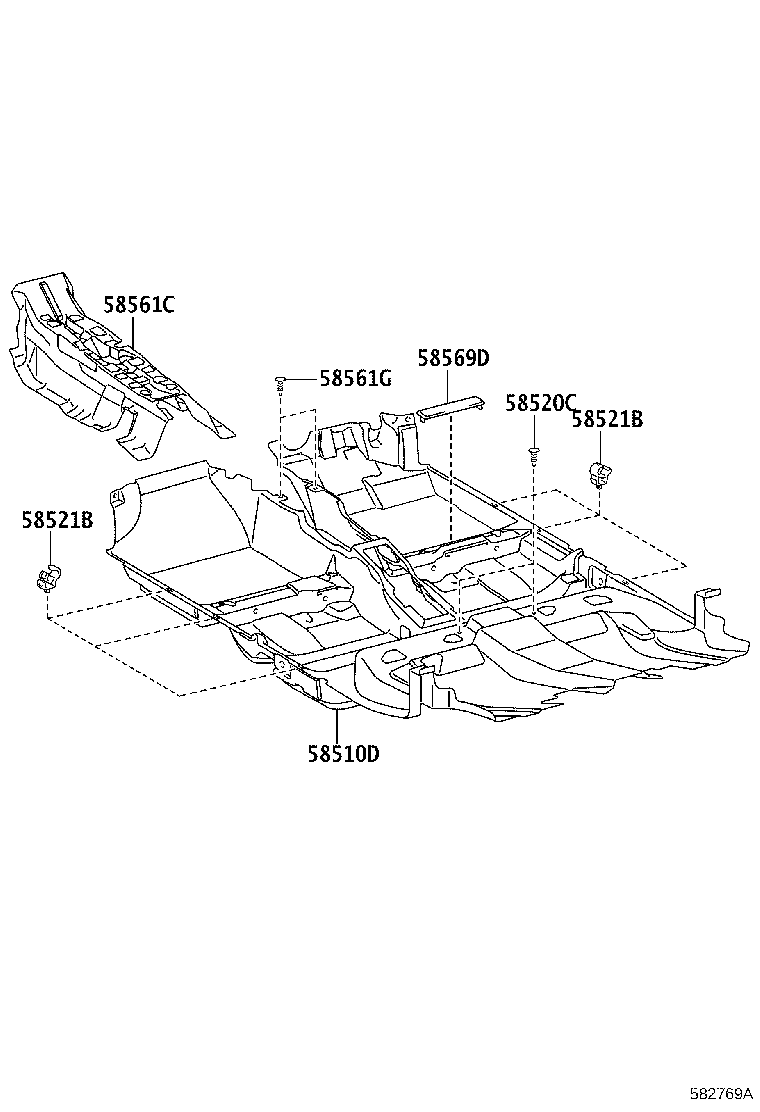

Figure 582768A 582768A 2006-09 → — Figure 582769A 582769A 2006-09 → — Figure 583851B 583851B 2009-10 → —

Part groups

PNCDescription
58510D Carpet Assy, Floor, Front
58510E Retainer, Floor Carpet
58511H Mat, Floor, Front RH
58512B Mat, Floor, Front LH
58513C Mat, Floor, Front Center
58514C Mat, Froor, Rear
58514G Mat, Floor, Rear RH
58515F Mat, Floor, Rear LH
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58561 Retainer, Floor Mat, NO.1
58561C Silencer, Front Floor, NO.1
58561G Clip(FOR FRONT FLOOR SILENCER)
58569D Cover, Front Floor Caution Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
