Toyota Corolla Axio/Fielder

2006-09 → 2012-04 · chassis NZE14#,ZRE14# · catalogue 151160 · Japan

Supported model Data version 2012-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

126 part groups · 13 illustrations

Illustrations

714647L 2006-09 → 2008-10

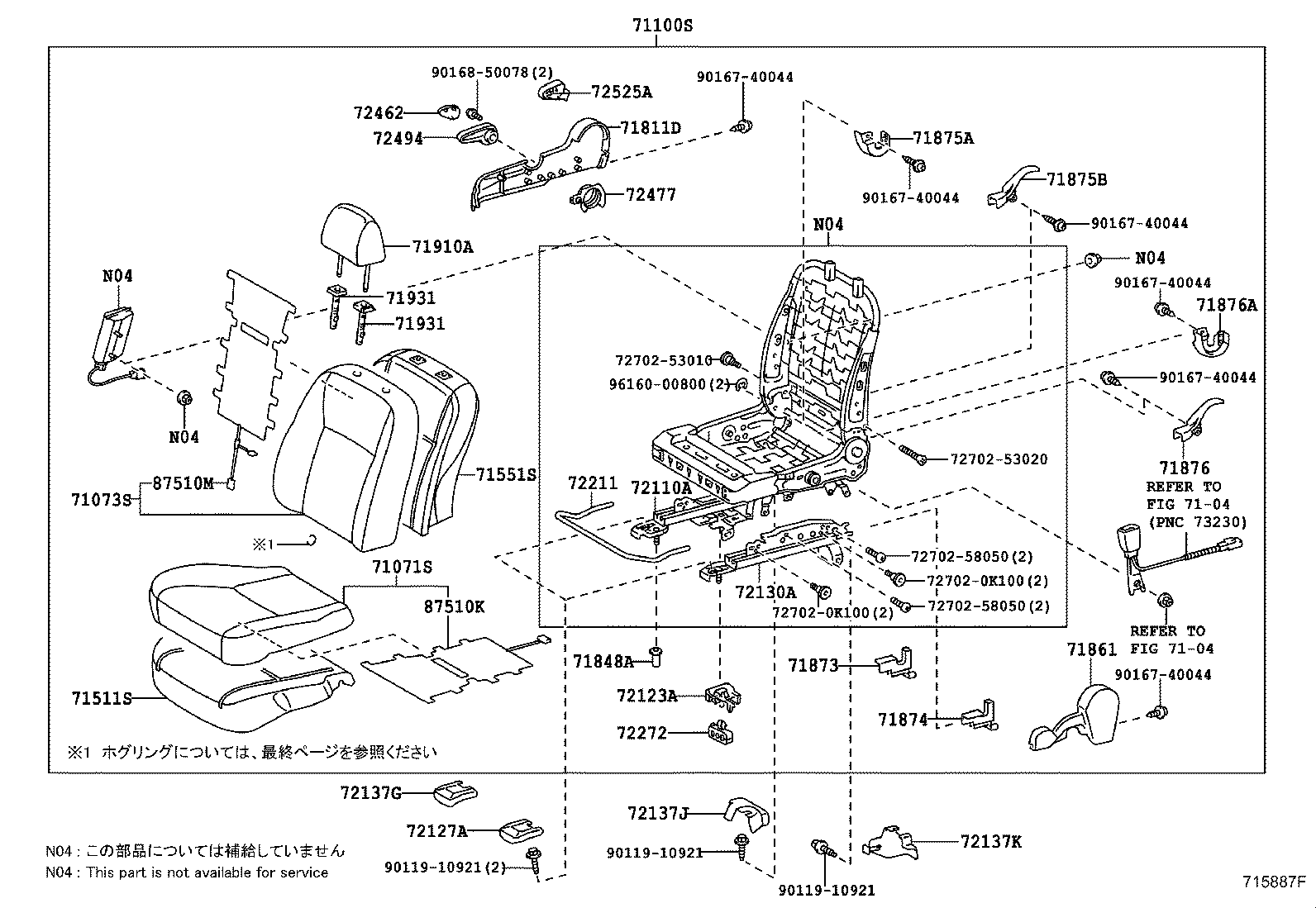

715887F 2008-10 → —

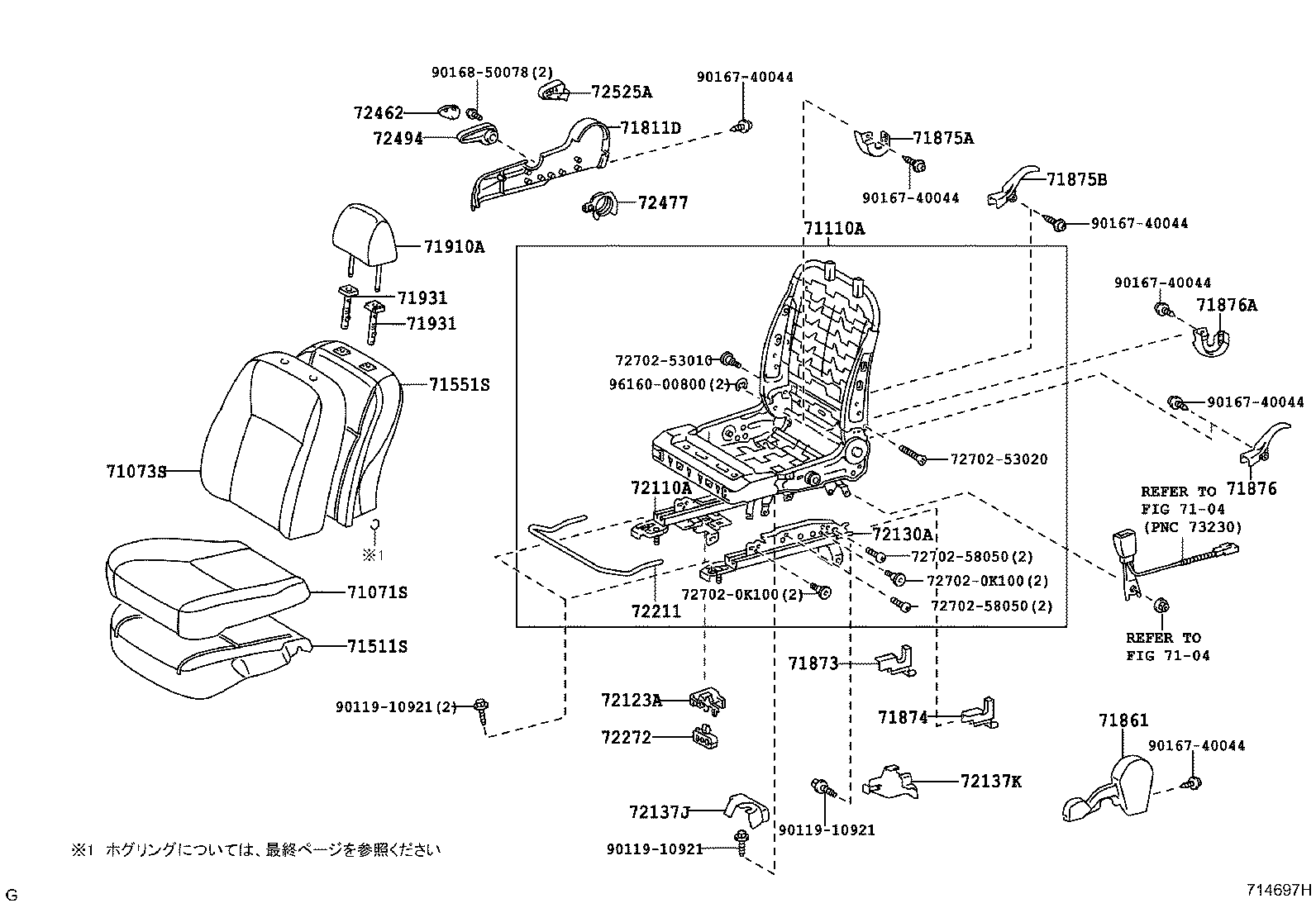

714697H 2006-09 → 2008-10

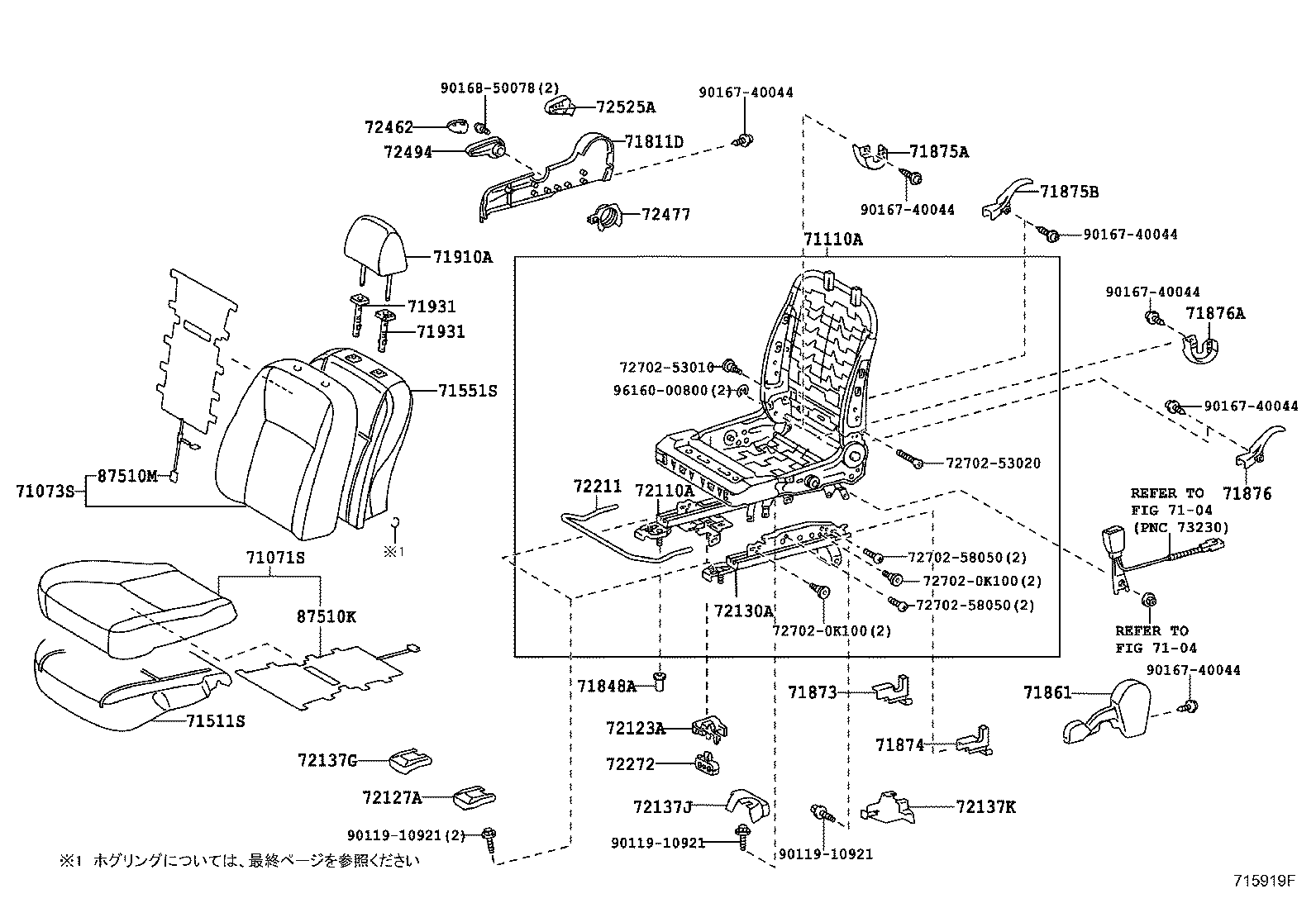

715919F 2008-10 → —

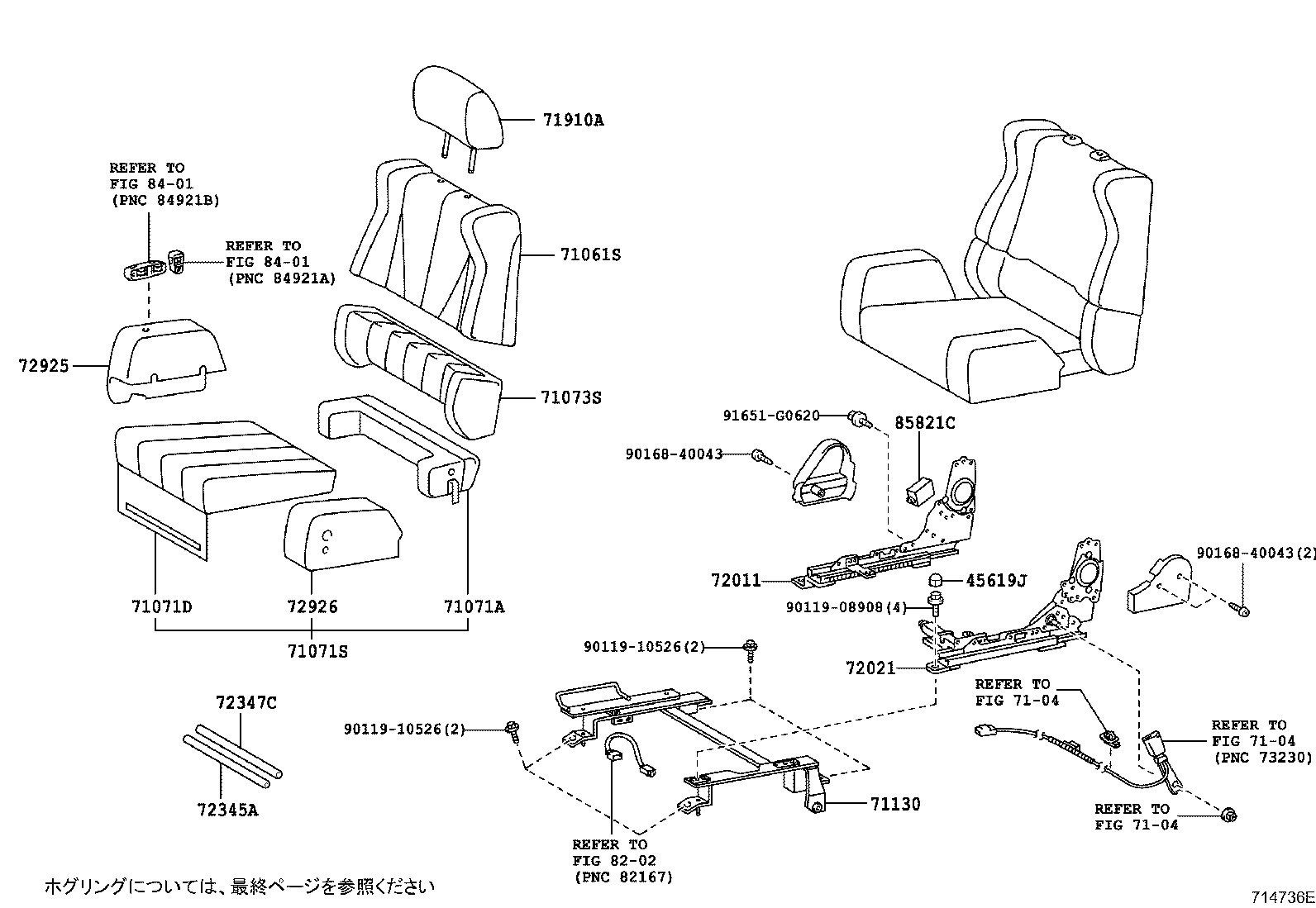

714736E 2006-09 → 2008-10

716035C 2008-10 → —

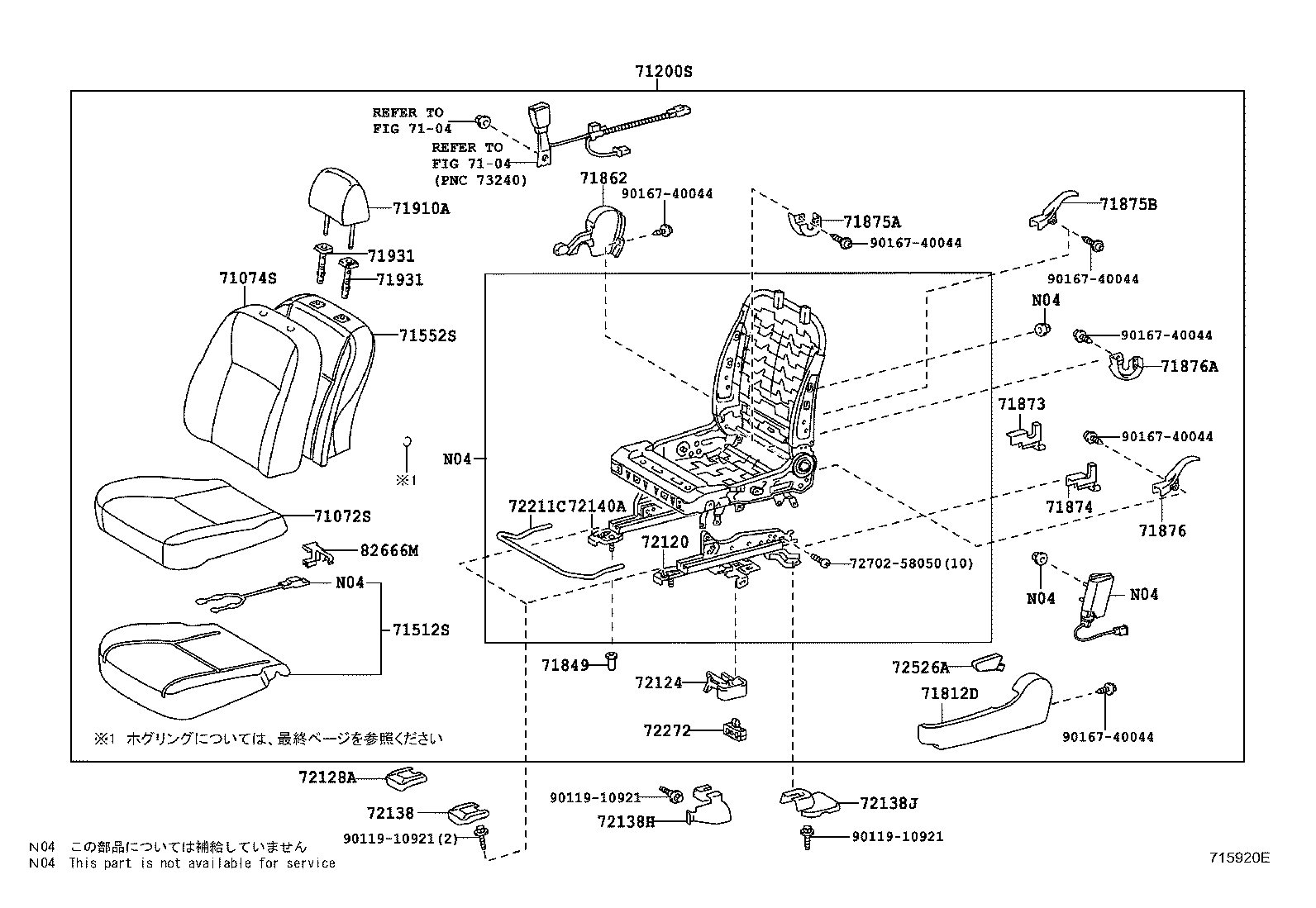

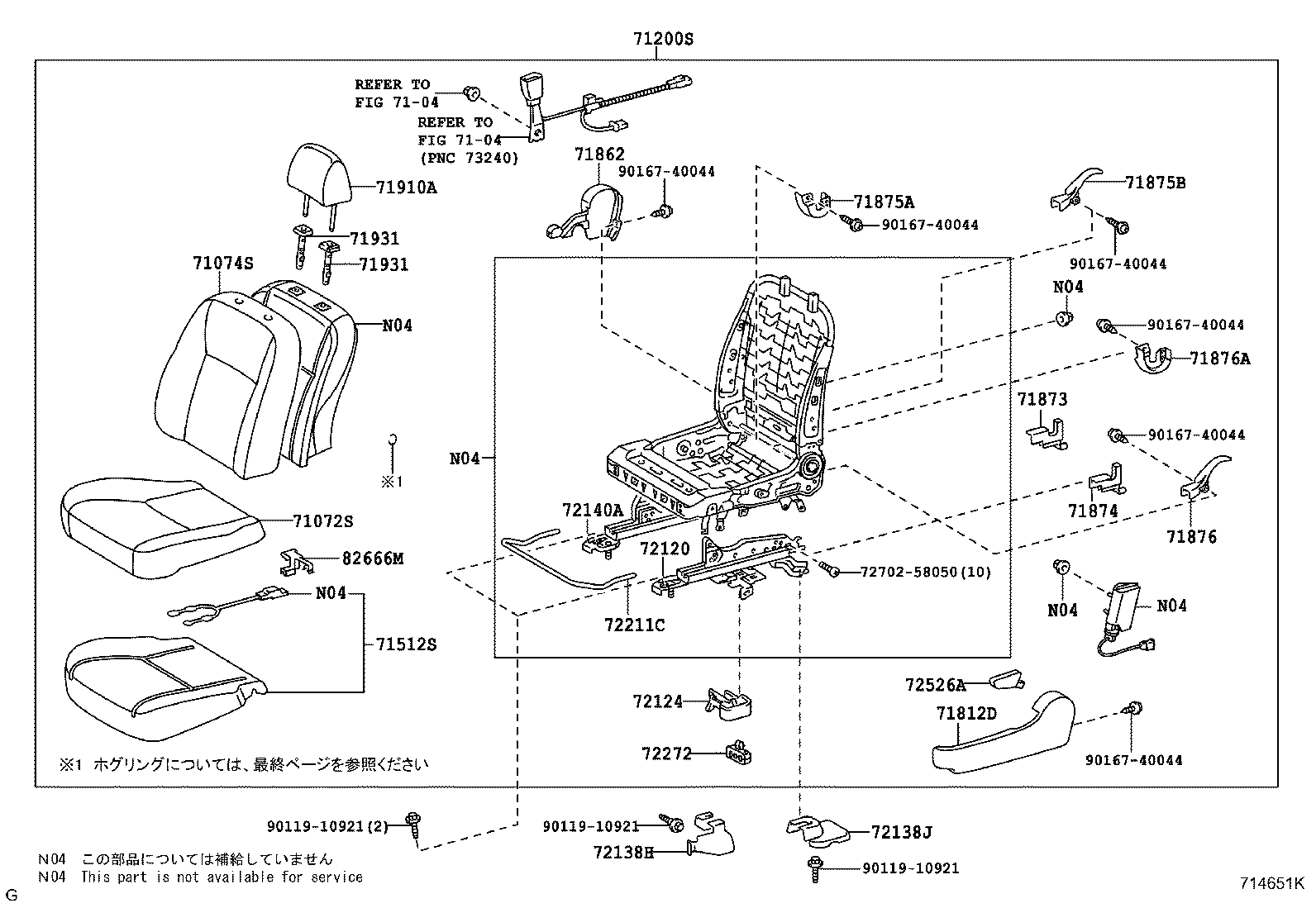

714651K 2006-09 → 2008-10

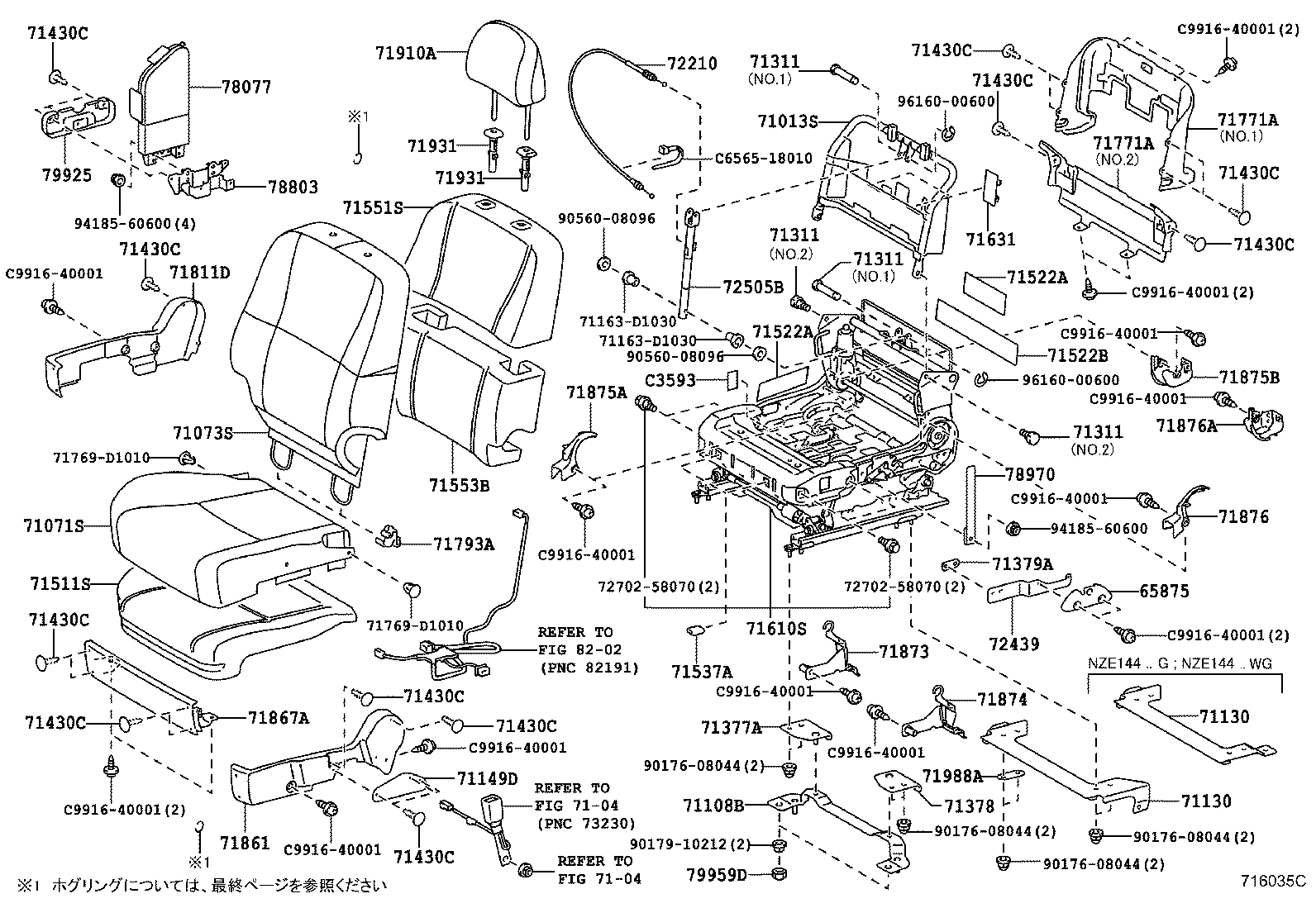

715920E 2008-10 → —

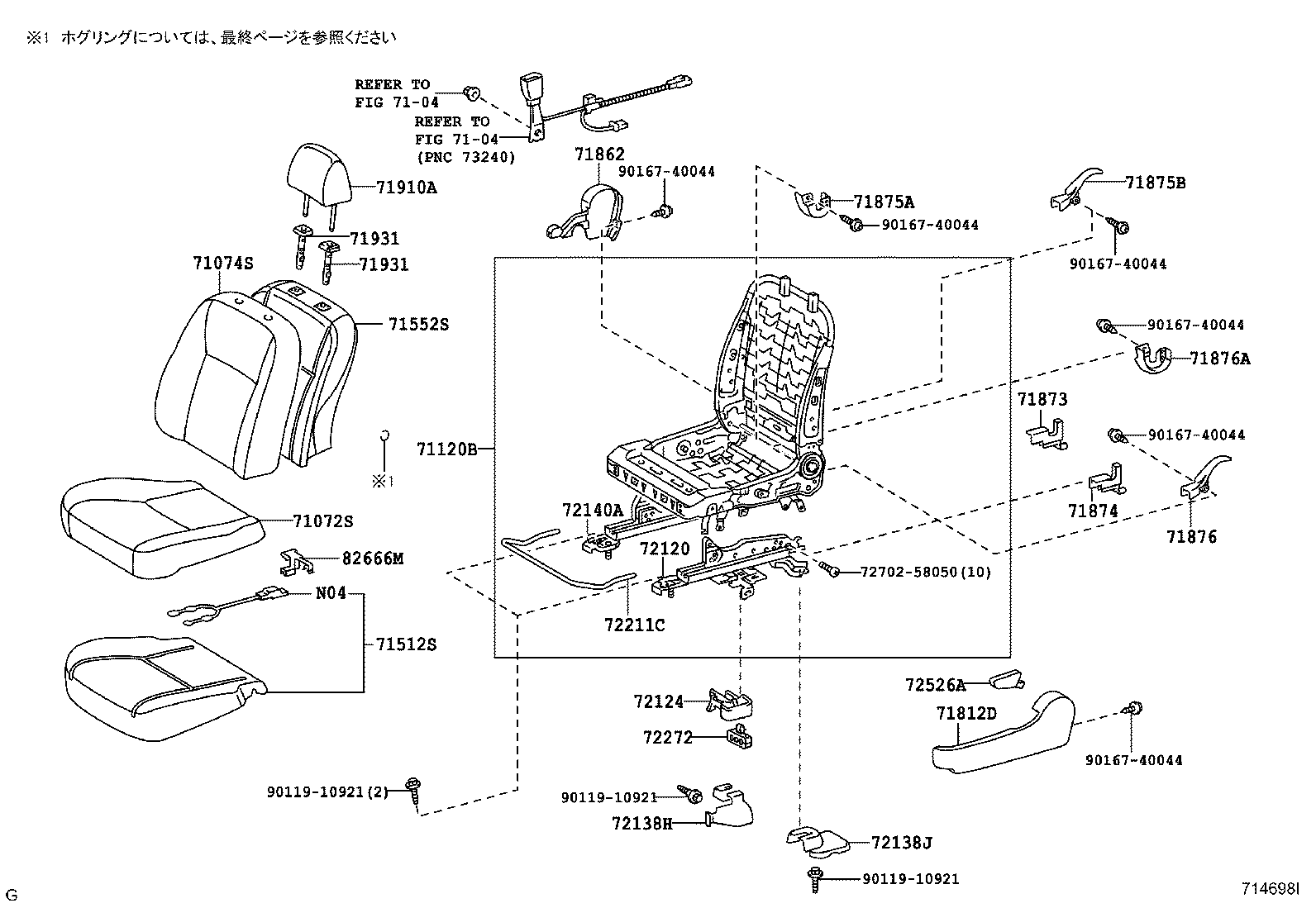

714698I 2006-09 → 2008-10

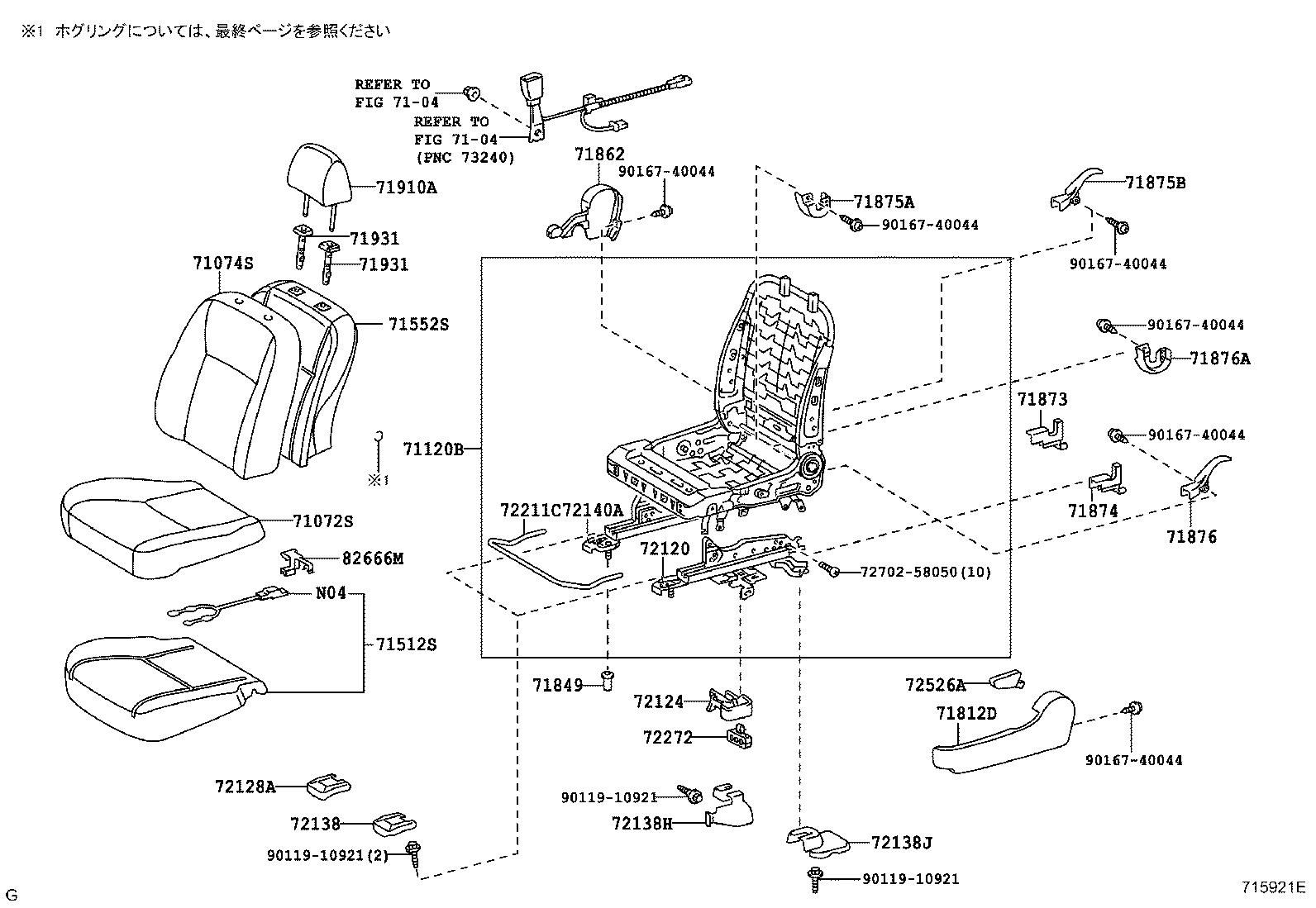

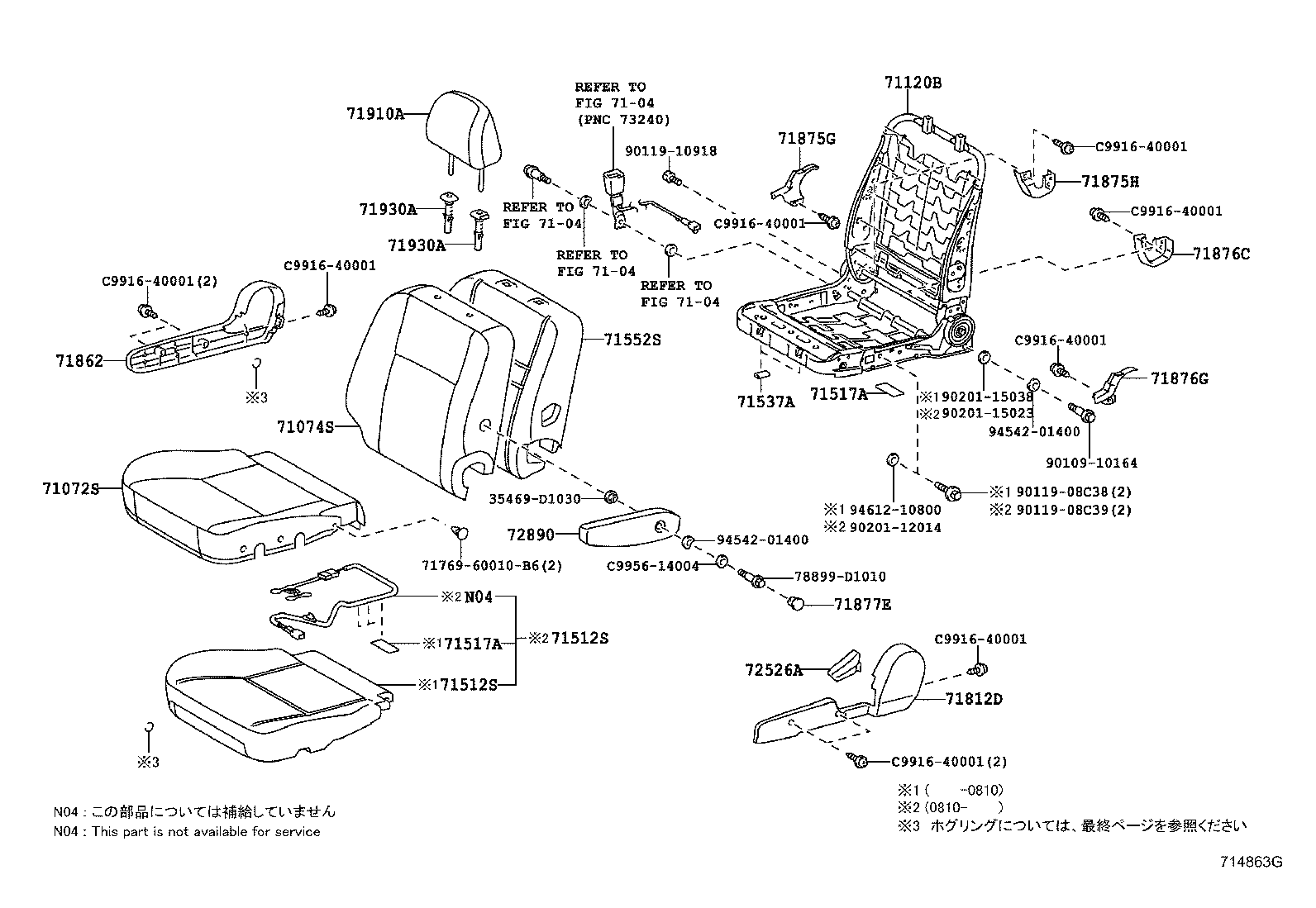

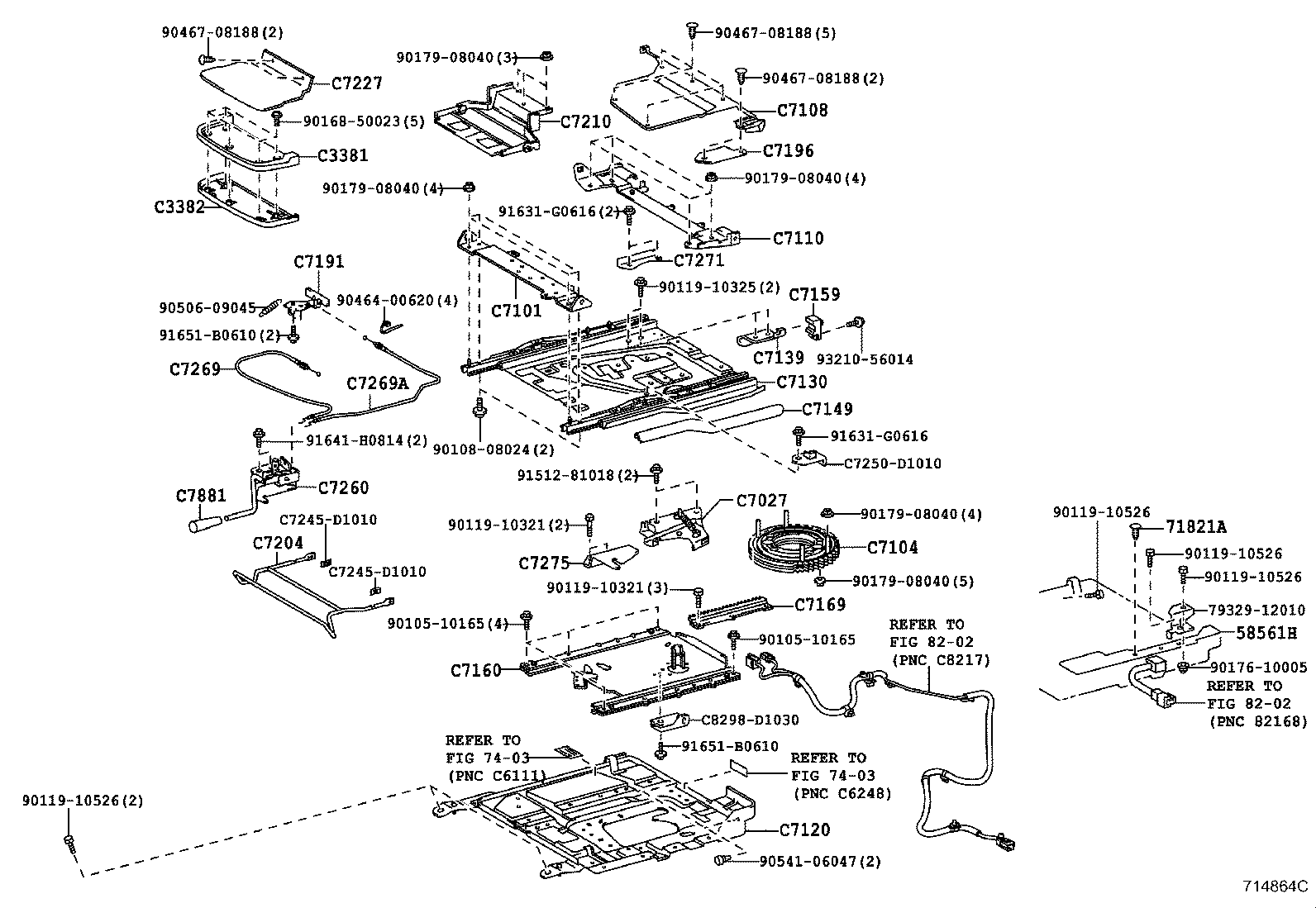

Part groups

PNC	Description
45619J	Cover, Knuckle Stopper
58561H	Carpet, Front Floor Side, LH
65875	Cover, Side Upper Panel End
71013S	Frame Sub-assy, Front Seatback, RH
71061S	Cover Sub-assy, Front Seatback, Upper RH
71071A	Cover, Front Seat Cushion, NO.2(FOR SEPARATE TYPE)
71071D	Cover, Front Seat Cushion, NO.1(FOR SEPARATE TYPE)
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71100S	Seat Assy, Front RH
71108B	Leg Sub-assy, Front Seat, RH
71110A	Frame Assy, Front Seat W/Adjuster, RH
71120B	Frame Assy, Front Seat W/Adjuster, LH
71130	Leg Assy, Front Seat, RH
71149D	Cover, Front Seat Leg, Inner (FOR RH SEAT)
71200S	Seat Assy, Front LH
71311	Pin, Front Seat Hinge
71377A	Bracket, Front Seat, RH
71378	Bracket, Front Seat, LH
71379A	Stopper, Front Seat Vertical Handle
71430C	Clip
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71517A	Pad, Front Seat Cushion Cover
71522A	Pad, Front Seat Cushion Silencer, B
71522B	Pad, Front Seat Cushion Silencer, B
71537A	Protector, Front Seat Cushion
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71553B	Pad, Front Seatback, B
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71631	Hook, Front Seatback
71771A	Board, Front Seatback
71793A	Clip, Front Seatback Pocket
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71821A	Clip (FOR FRONT SEAT SIDE SHIELD)
71848A	Cap, Seat Adjuster Cover, RH
71849	Cap, Seat Adjuster Cover, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71867A	Shield, Front Seat Cushion, Inner NO.1 RH
71873	Shield, Front Seat Cushion, Lower RH
71874	Shield, Front Seat Cushion, Lower LH
71875A	Cover, Reclining Adjuster Inside, RH
71875B	Cover, Reclining Adjuster Inside, RH
71875G	Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71875H	Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876	Cover, Reclining Adjuster Inside, LH
71876A	Cover, Reclining Adjuster Inside, LH
71876C	Cover, Reclining Adjuster Inside, LH
71876G	Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71877E	Cover, Seat Armrest Hole, LH
71910A	Headrest Assy, Front Seat
71930A	Support Assy, Front Seat Headrest
71931	Support, Front Seat Headrest
71988A	Plate, Front Seat Leg, NO.2
72011	Adjuster Sub-assy, Front Seat, Outer RH
72021	Adjuster Sub-assy, Front Seat, Inner RH
72110A	Track Assy, Front Seat, Outer RH
72120	Track Assy, Front Seat, Outer LH
72123A	Cover, Seat Track Bracket, Outer Front RH
72124	Cover, Seat Track Bracket, Outer Front LH
72127A	Cover, Seat Track Bracket, Inner Front RH
72128A	Cover, Seat Track Bracket, Inner Front LH
72130A	Track Assy, Front Seat, Inner RH
72137G	Cover, Seat Track, Outer RH
72137J	Cover, Front Seat Track, RH Rear Outer
72137K	Cover, Front Seat Track, RH Rear Inner
72138	Cover, Seat Track, Outer LH
72138H	Cover, Front Seat Track, LH Rear Inner
72138J	Cover, Front Seat Track, LH Rear Outer
72140A	Track Assy, Front Seat,Inner LH
72210	Cable Assy, Seat Track Control
72211	Handle, Seat Track Adjusting
72211C	Handle, Seat Track Adjusting
72272	Clamp, Seat Track Control Cable
72345A	Pipe, Reclining Connecting
72347C	Cover, Reclining Connecting Hook
72439	Plate, Front Seat Adjuster, LH
72462	Cover, Vertical Adjuster RH
72477	Spacer, Vertical Adjuster
72494	Handle, Vertical Adjusting, RH
72505B	Lock Sub-assy, Front Seatback, RH
72525A	Handle, Reclining Adjuster Release, RH
72526A	Handle, Reclining Adjuster Release, LH
72890	Armrest Assy, Seat, C LH
72925	Cover, Front Seat Cushion
72926	Cover, Front Seat Cushion, NO.1
78077	Board Sub-assy, Sub Seat Cushion
78803	Leg Sub-assy, Sub Seat
78970	Band Assy, Seat Lock
79925	Board, Seat Leg Garnish
79959D	Cover, Seat Leg
82666M	Holder, Connector
85821C	Motor Assy, Power Seat
87510K	Heater Assy, Front Seat Cushion, RH
87510M	Heater Assy, Front Seatback, RH
C3381	Cover, Slide Step, NO.1
C3382	Cover, Slide Step, NO.2
C3593	Silencer, Rear Floor, NO.3
C7027	Lock Sub-assy, Welcab Seat Turn
C7101	Bracket Sub-assy, Seat Holder, Front
C7104	Plate Sub-assy, Seat Turn
C7108	Cover Assy, Turn Table
C7110	Bracket Sub-assy, Seat Holder, Rear
C7120	Leg, Welcab Seat, NO.1
C7130	Panel Assy, Turn Table
C7139	Bracket, Hook
C7149	Protector, Turn Table Panel Edge, LH
C7159	Cushion, Welcab Seat Leg Stopper
C7160	Panel Assy, Slide Table
C7169	Gear, Slide Table Rack
C7191	Bracket, Seat Holder Link
C7196	Cover, Turn Table, NO.1
C7204	Handle Sub-assy, Welcab Seat Track
C7210	Footrest Assy, Welcab Seat
C7227	Carpet, Welcab Seat Footrest Step
C7260	Handle Assy, Seat Turn Lock
C7269	Cable, Seat Turn Lock Release
C7269A	Cable, Seat Turn Lock Release, NO.1
C7271	Bracket, Interlock, Upper
C7275	Plate, Lock Striker, NO.1
C7881	Grip, Control Link

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
