Toyota Corolla Axio/Fielder

2006-09 → 2012-04 · chassis NZE14#,ZRE14# · catalogue 151160 · Japan

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Slope & Power Lift

27 part groups · 3 illustrations

Illustrations

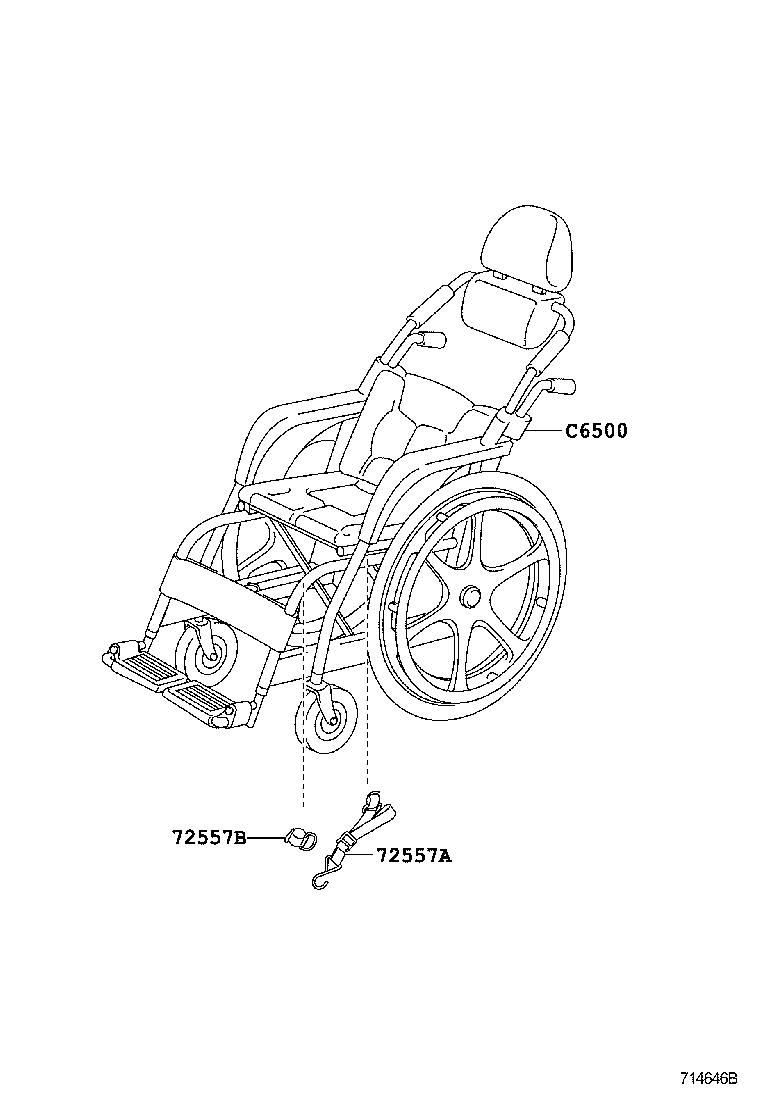

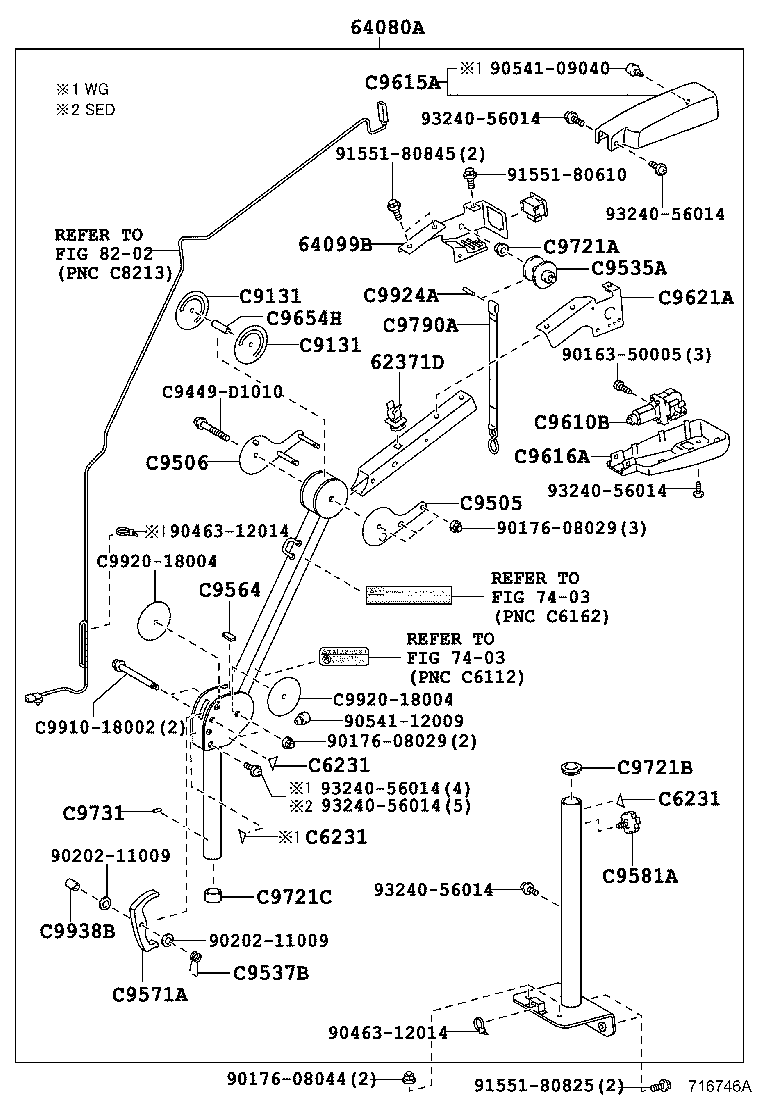

Figure 714645C 714645C 2006-09 → 2008-10 Figure 716746A 716746A 2008-10 → — Figure 714646B 714646B 2007-01 → —

Part groups

PNCDescription
62371D Catch, Lock
64080A Arm Assy, Power Lift
64099B Base Sub-assy, Power Lift Arm Guide
72557A Hook, Front Seat Cushion Catch
72557B Hook, Front Seat Cushion Catch
C6231 Mark, Side
C6500 Wheel Chair Assy
C9131 Plate, Chair Lift Arm
C9505 Support Sub-assy, Return Spring Pipe, RH
C9506 Support Sub-assy, Return Spring Pipe, LH
C9535A Pulley, Power Lift
C9537B Spring, Power Lift Return
C9564 Protector, Power Lift Cylinder Cover
C9571A Lever, Power Lift Arm Lock
C9581A Handle, Power Lift Lock
C9610B Motor Assy, Power Lift
C9615A Cover, Power Lift Motor, NO.1
C9616A Cover, Power Lift Motor, NO.2
C9621A Base, Power Lift Motor
C9654H Collar, Power Lift Cylinder
C9721A Bearing, NO.2 Winch, NO.1
C9721B Bearing, NO.2 Winch, NO.2
C9721C Bearing, NO.2 Winch, NO.3
C9731 Pin, Winch Roller, NO.1
C9790A Belt Assy, Winch
C9924A Pin
C9938B Collar
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
