Toyota Corolla Axio/Fielder

2006-09 → 2012-04 · chassis NZE14#,ZRE14# · catalogue 151160 · Japan

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

26 part groups · 3 illustrations

Illustrations

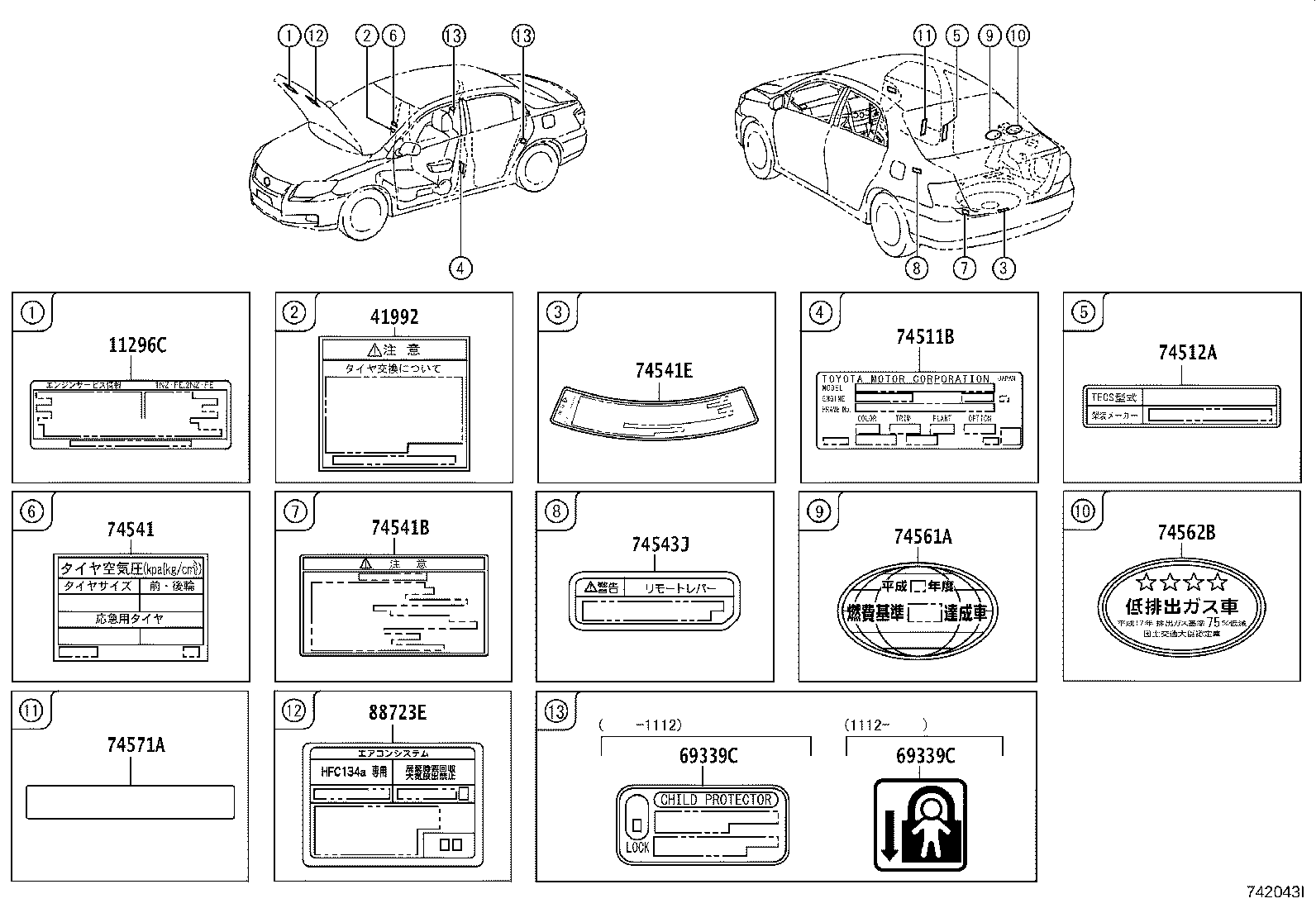

Figure 745461 745461 2006-09 → — Figure 742043I 742043I 2006-09 → — Figure 742044G 742044G 2006-09 → —

Part groups

PNCDescription
11296C Label, Engine Service Information
16793E Label, Cooling Fan Caution
41992 Label, Differential Notice
69339C Label, Child Protector Information
74511B Plate, Name
74512A Plate, Identification Number
74541 Plate, Tire Pressure Caution
74541B Plate, Compact Spare Tire Caution
74541E Plate, Compact Spare Tire Caution
74543J Label, Rear Seat Caution
74543P Label, Rear Seat Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74571A Film, Label Cover
86793B Label, Television Camera Information
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
89616 Label, Push Start Information
C6111 Plate, Safety Caution
C6111A Plate, Safety Caution
C6112 Label, Safety Information, NO.2
C6161 Label, Power Lift Caution
C6162 Label, Power Lift Caution, NO.2
C6184 Label, Front Seat Caution
C6248 Label, Body Number
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
