Toyota Corolla Axio/Fielder

2006-09 → 2012-04 · chassis NZE14#,ZRE14# · catalogue 151160 · Japan

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

15 part groups · 2 illustrations

Illustrations

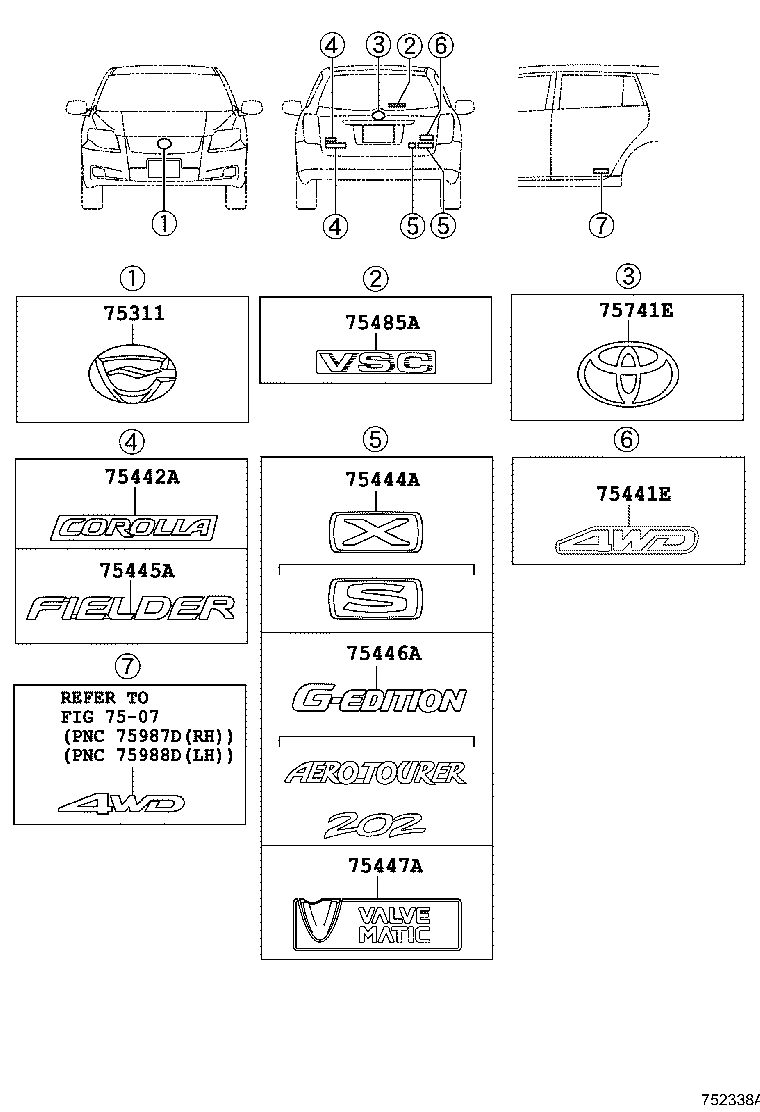

Figure 751772H 751772H 2006-09 → — Figure 752338A 752338A 2006-09 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75441D Plate, Luggage Compartment Door Name, NO.1
75441E Plate, Back Door Name, NO.1
75442 Plate, Luggage Compartment Door Name, NO.2
75442A Plate, Back Door Name, NO.2
75444 Plate, Luggage Compartment Door, NO.4
75444A Plate, Back Door Name, NO.4
75445 Plate, Luggage Compartment Door Name, NO.5
75445A Plate, Back Door Name, NO.5
75446A Plate, Back Door Name, NO.6
75447 Plate, Luggage Compartment Door Name, NO.7
75447A Plate, Back Door Name, NO.7
75485 Plate, Back Window Name
75485A Plate, Back Window Name
75741E Emblem, Symbol
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
