Toyota Corolla Axio/Fielder
2006-09 → 2012-04 · chassis NZE14#,ZRE14# · catalogue 151160 · Japan
Supported model
Data version 2012-04
Mudguard & Spoiler
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161L | Piece, Front Spoiler |
| 65631D | Plate, Rear Wheel House, Front RH |
| 65632D | Plate, Rear Wheel House, Front LH |
| 75851E | Moulding, Body Rocker Panel, RH |
| 75852B | Moulding, Body Rocker Panel, LH |
| 75895F | Tape, Moulding, NO.1 |

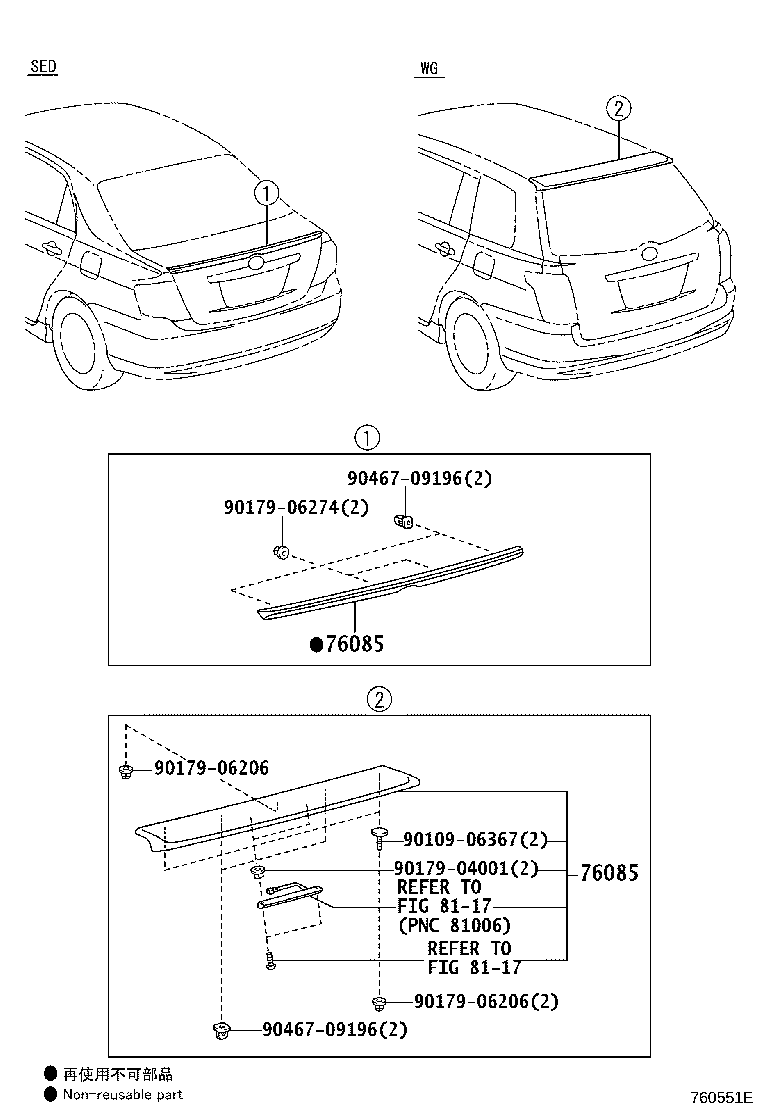

| 76085 | Spoiler Sub-assy, Rear |
| 76621C | Mudguad, Front Fender, RH |
| 76622C | Mudguard, Front Fender, LH |
| 76625D | Mudguard, Quarter Panel, Rear RH |
| 76626D | Mudguard, Quarter Panel, Rear LH |
| 76851A | Cover, Front Spoiler, RH |
| 76852A | Cover, Front Spoiler, LH |
| 76877D | Protector, Front Spoiler Side, RH |
| 76878A | Protector, Front Spoiler Side, LH |
| 76901 | Mudguard Sub-assy, Side, RH |
| 76902 | Mudguard Sub-assy, Side, LH |
| 76915F | Mudguard, Side, FR RH |
| 76916F | Mudguard, Side, FR LH |
| 76924A | Retainer, Side Mudguard, NO.2 |
| 76924C | Retainer, Side Mudguard, NO.2 |
| 76925D | Protector, Side Mudguard, RH |
| 76926D | Protector, Side Mudguard, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
