Toyota Corolla Axio/Fielder

2006-09 → 2012-04 · chassis NZE14#,ZRE14# · catalogue 151160 · Japan

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

10 part groups · 4 illustrations

Illustrations

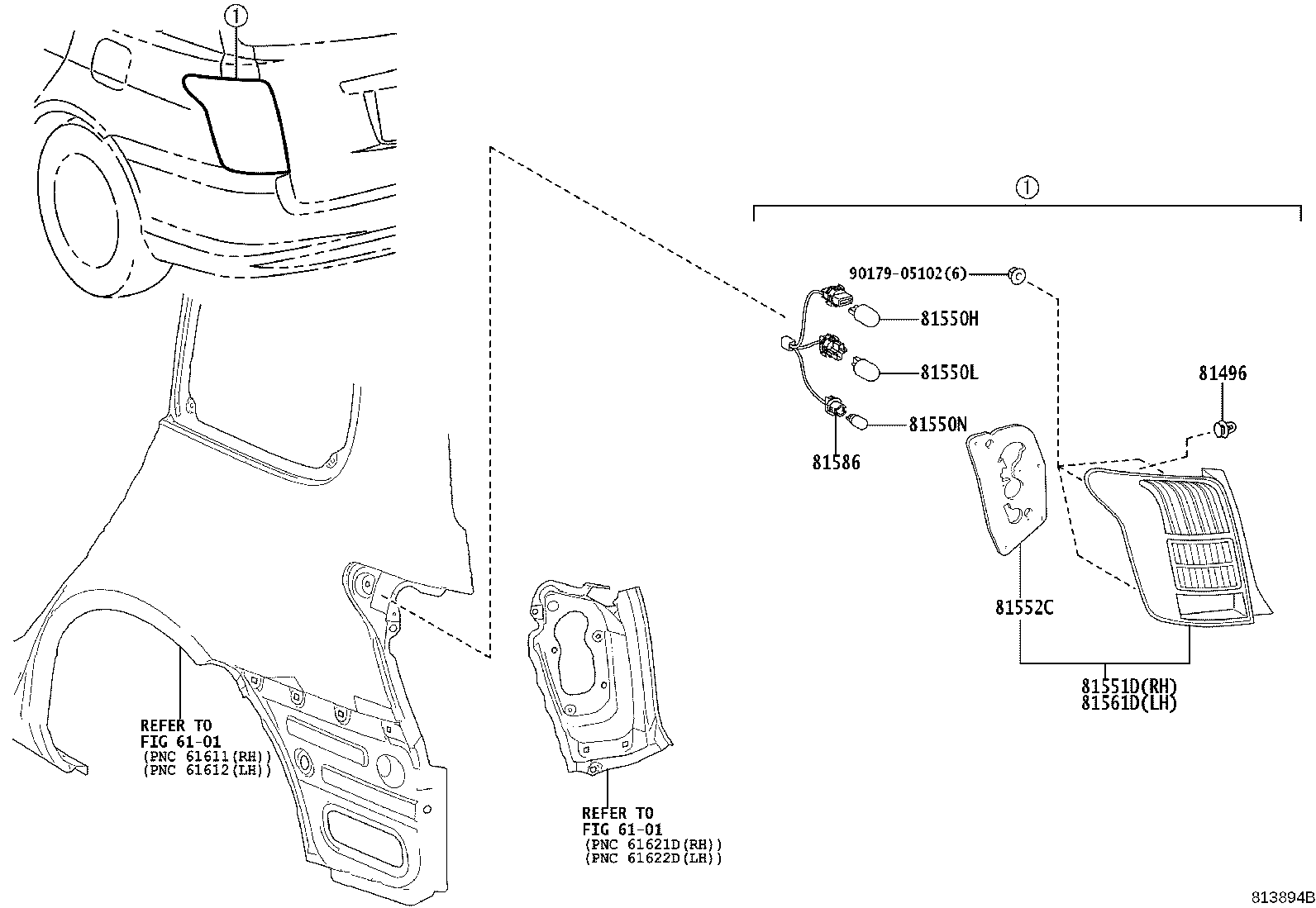

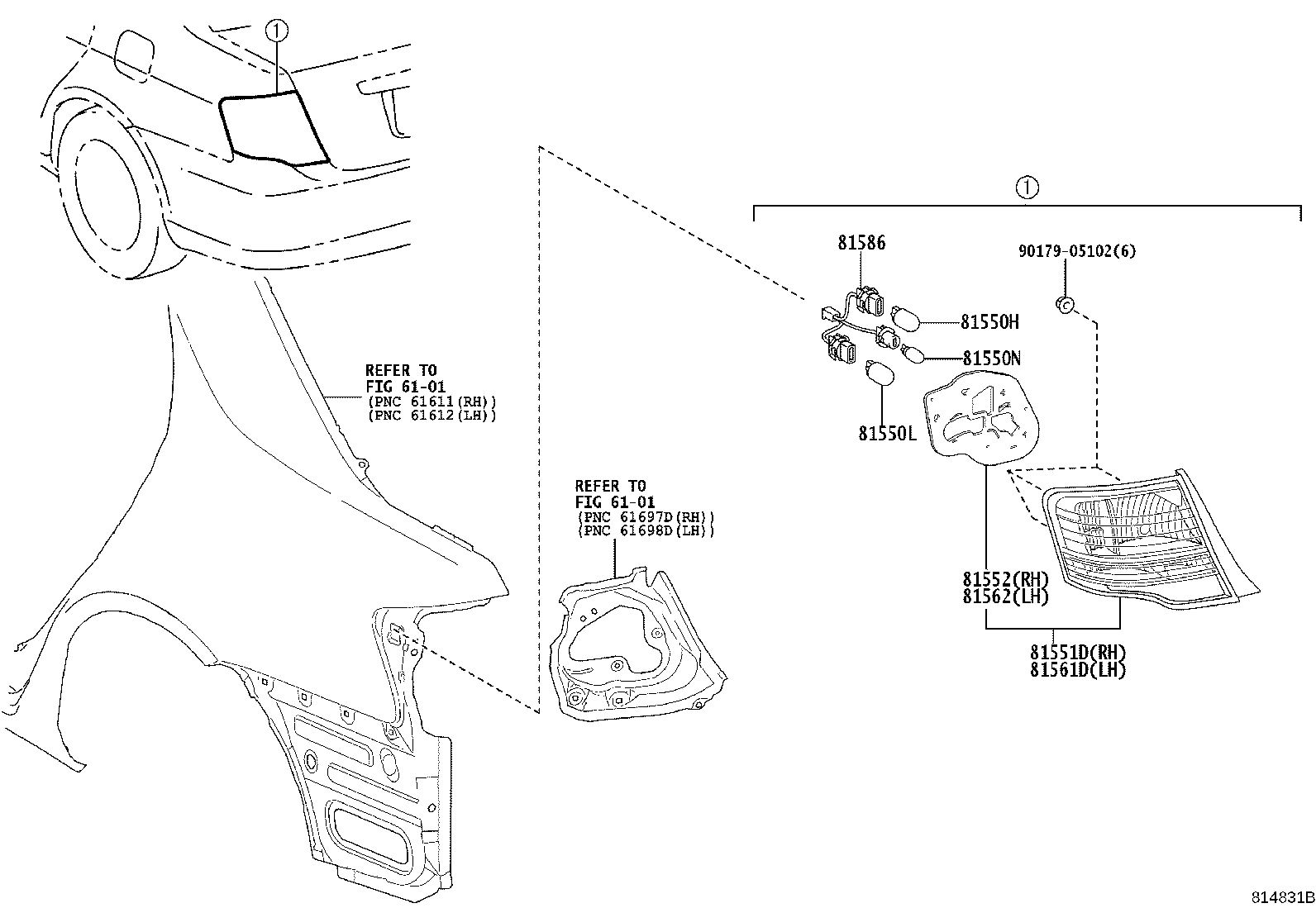

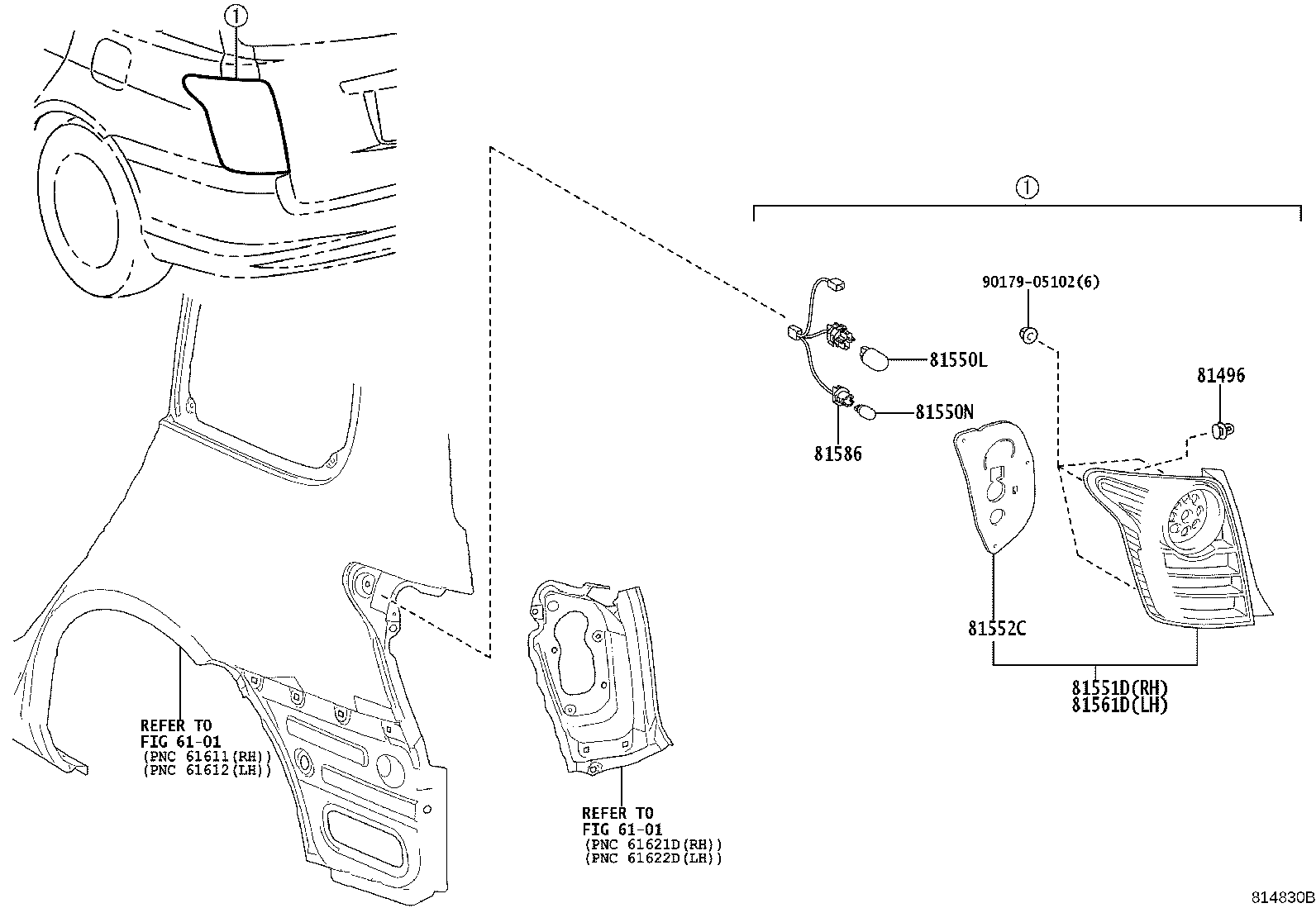

Figure 813893C 813893C 2006-09 → 2008-10 Figure 813894B 813894B 2006-09 → 2008-10 Figure 814831B 814831B 2008-10 → — Figure 814830B 814830B 2008-10 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81550H Bulb, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81551D Lens & Body, Rear Combination Lamp, RH
81552 Gasket, Rear Combination Lamp Lens, RH
81552C Gasket, Rear Combination Lamp
81561D Lens & Body, Rear Combination Lamp, LH
81562 Gasket, Rear Combination Lamp Lens, LH
81586 Cord, Rear Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
