Toyota Corolla Axio/Fielder

2006-09 → 2012-04 · chassis NZE14#,ZRE14# · catalogue 151160 · Japan

Supported model Data version 2012-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

10 part groups · 2 illustrations

Illustrations

Figure 848219G

848219G 2006-09 → —

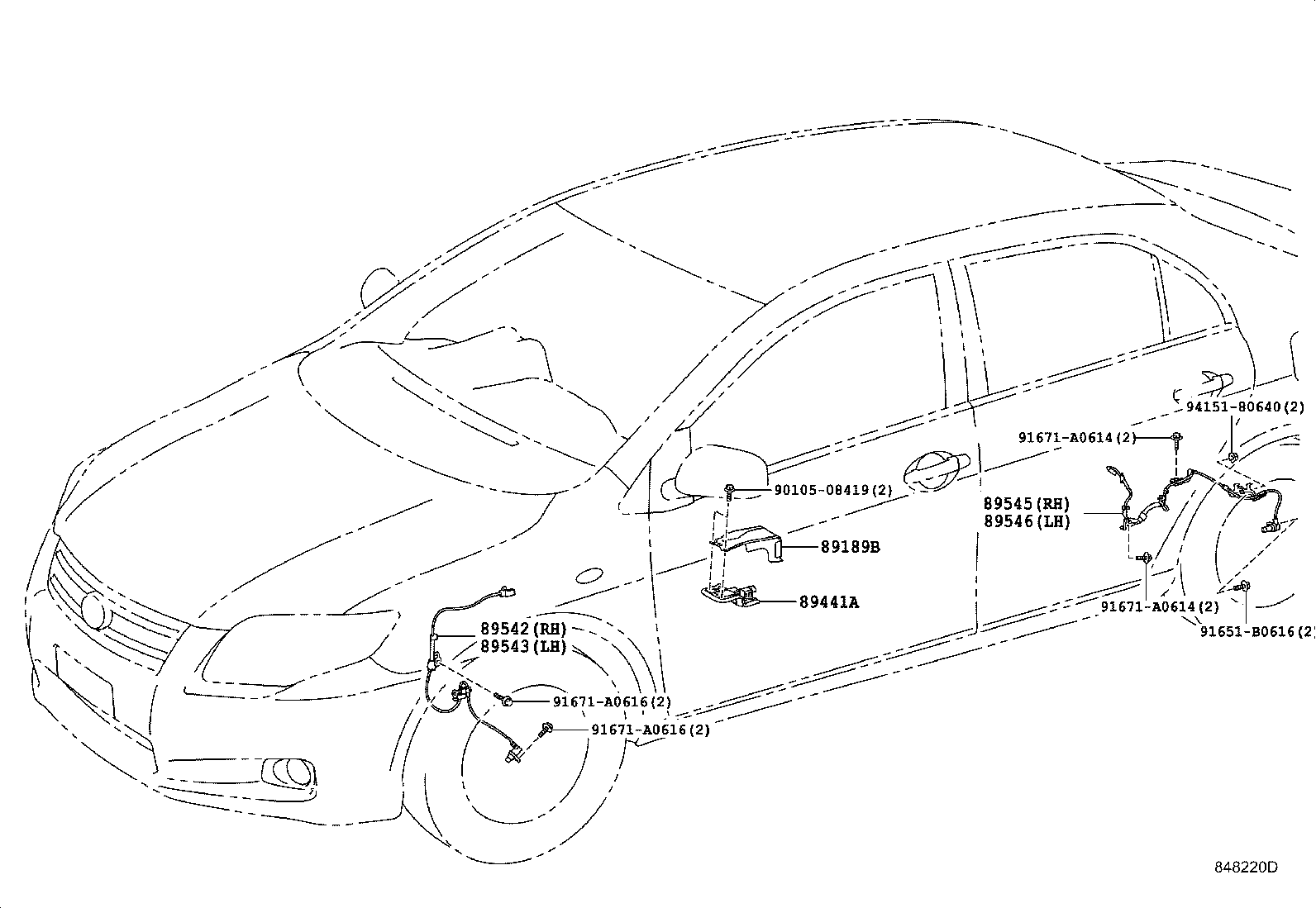

Figure 848220D

848220D 2006-09 → —

Part groups

PNC	Description
86652A	Buzzer Assy, Skid Control
89183A	Sensor, Yawrate
89189B	Bracket, Yawrate Sensor
89441A	Sensor, Deceleration
89516C	Wire, Skid Control Sensor, RH
89516D	Wire, Skid Control Sensor, LH
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH
89545	Sensor, Speed, Rear RH
89546	Sensor, Speed, Rear LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
