Toyota Corolla Axio/Fielder

2006-09 → 2012-04 · chassis NZE14#,ZRE14# · catalogue 151160 · Japan

Supported model Data version 2012-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

5 part groups · 2 illustrations

Illustrations

Figure 862973A

862973A 2006-09 → —

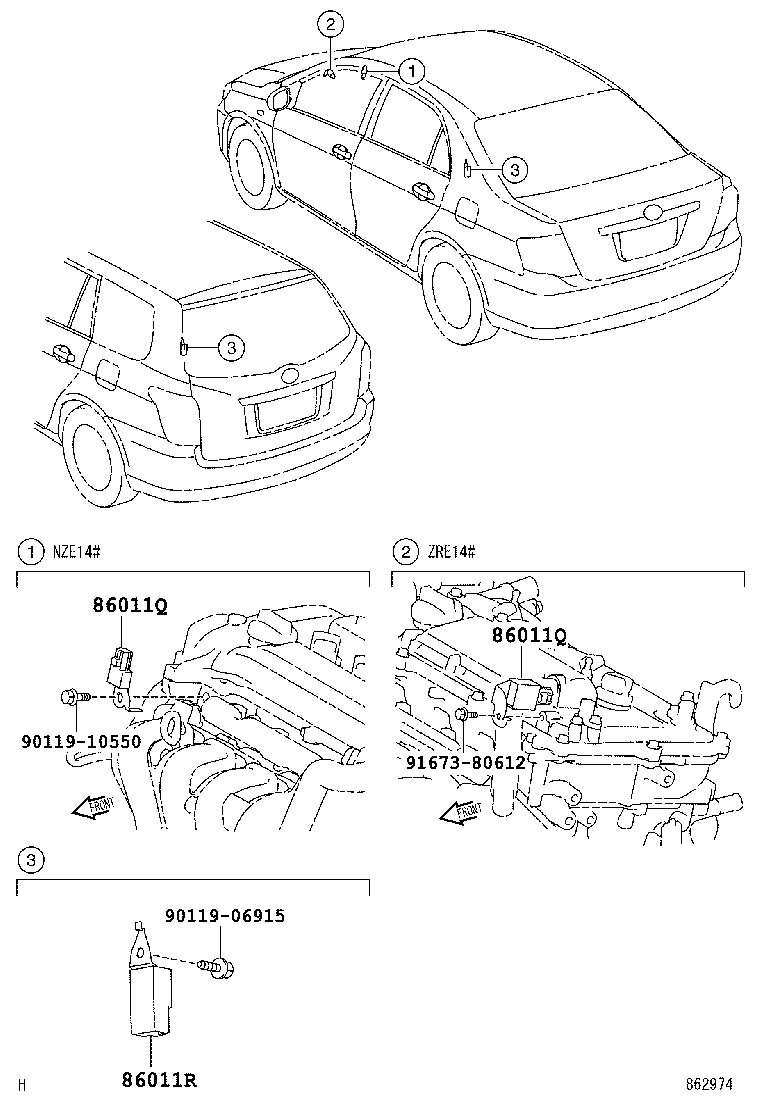

862974 2006-09 → —

Part groups

PNC	Description
86011Q	Condenser, Radio Setting
86011R	Condenser, Radio Setting
86120	Receiver Assy, Radio
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
