Toyota Corolla Axio/Fielder

2006-09 → 2012-04 · chassis NZE14#,ZRE14# · catalogue 151160 · Japan

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

6 part groups · 2 illustrations

Illustrations

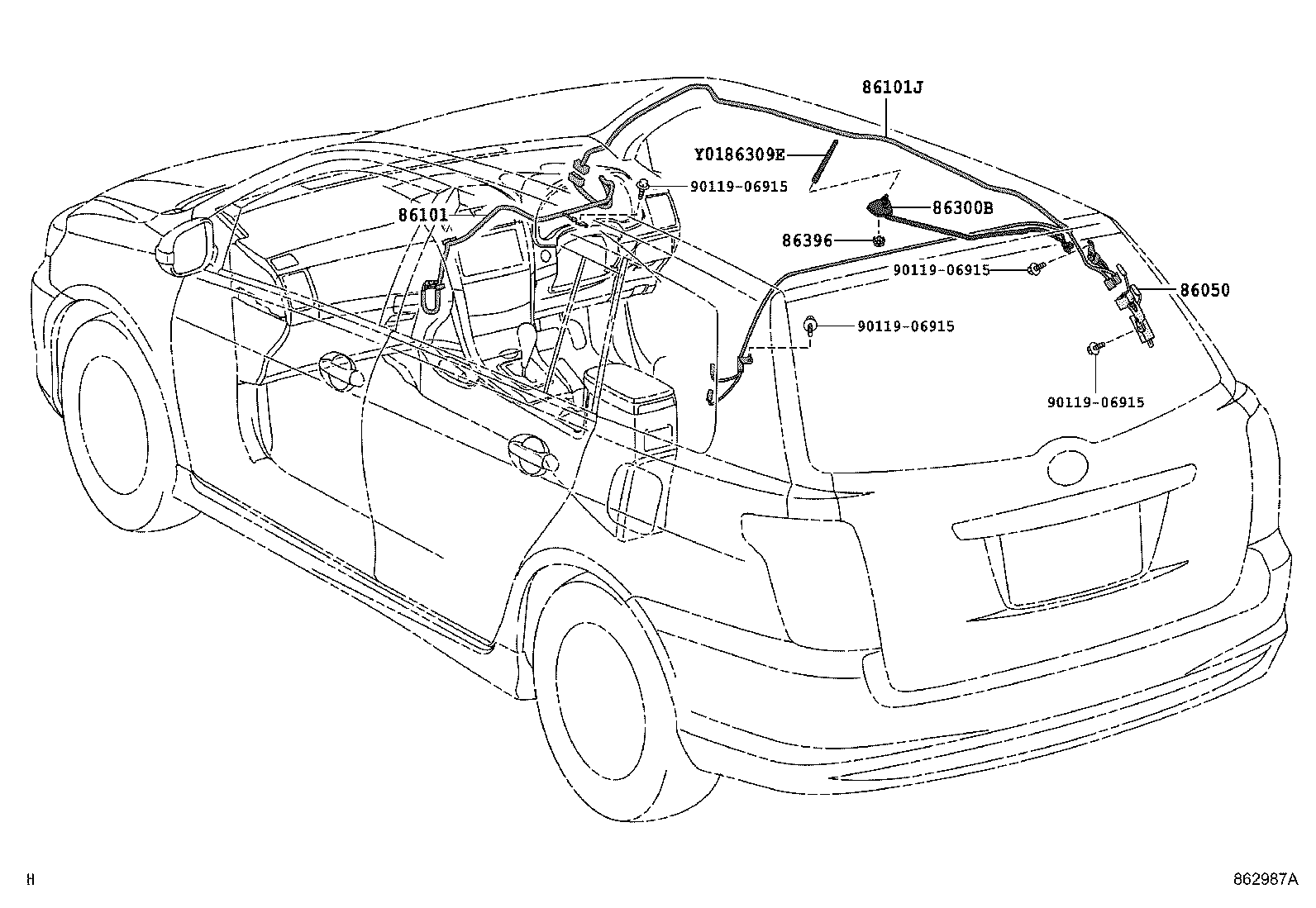

Figure 862986 862986 2006-09 → — Figure 862987A 862987A 2006-09 → —

Part groups

PNCDescription
86050 Antenna Assy, Television
86101 Cord Sub-assy, Antenna
86101J Cord Sub-assy, Antenna, NO.2
86300B Antenna Assy, Amplifier, NO.1
86309E Pole Sub-assy, Roof Antenna
86396 Nut, Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
