Toyota Corolla Axio/Fielder

2012-04 → present · chassis NKE165,NRE16#,NZE16#,ZRE162 · catalogue 151170 · Japan

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

5 part groups · 3 illustrations

Illustrations

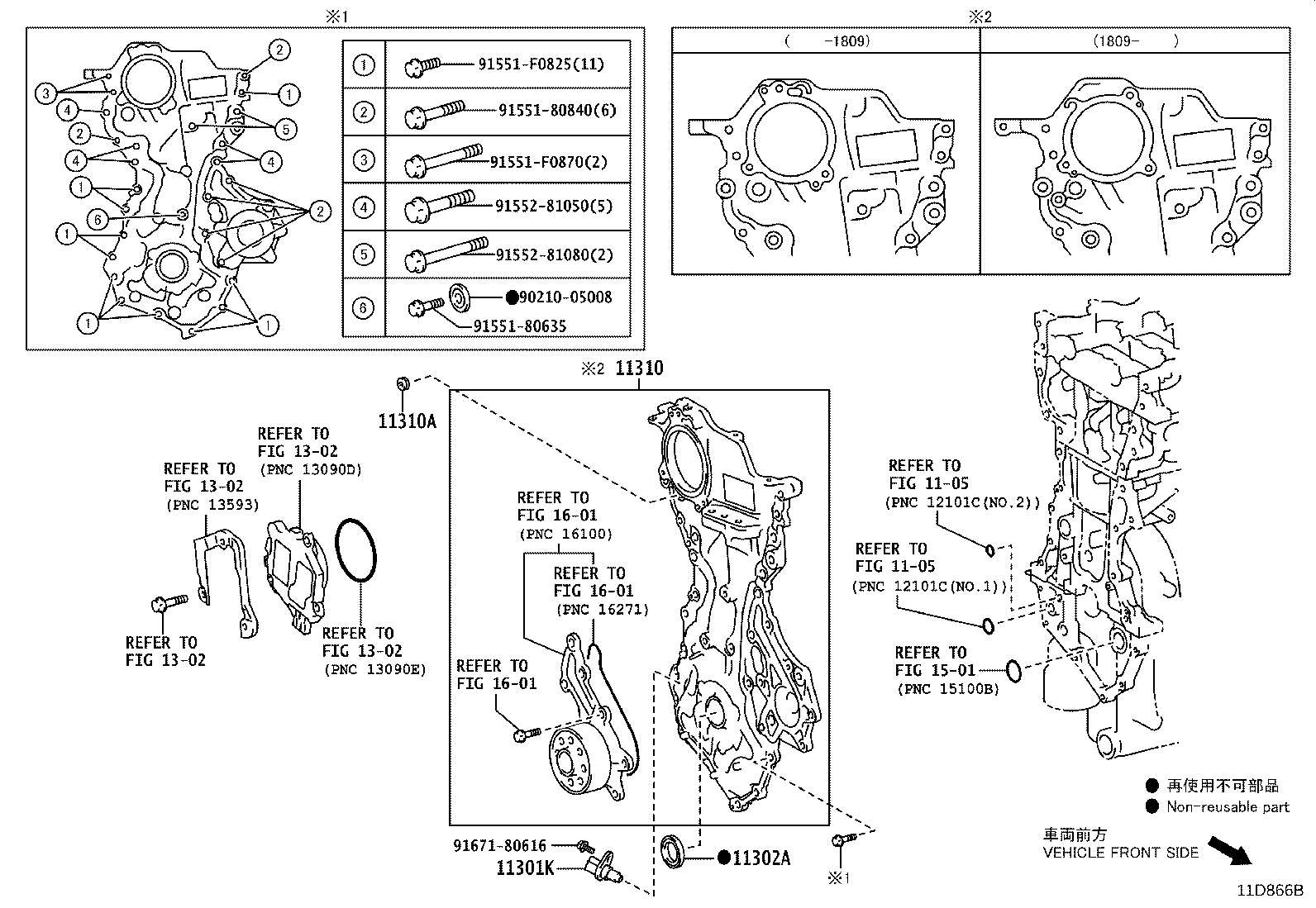

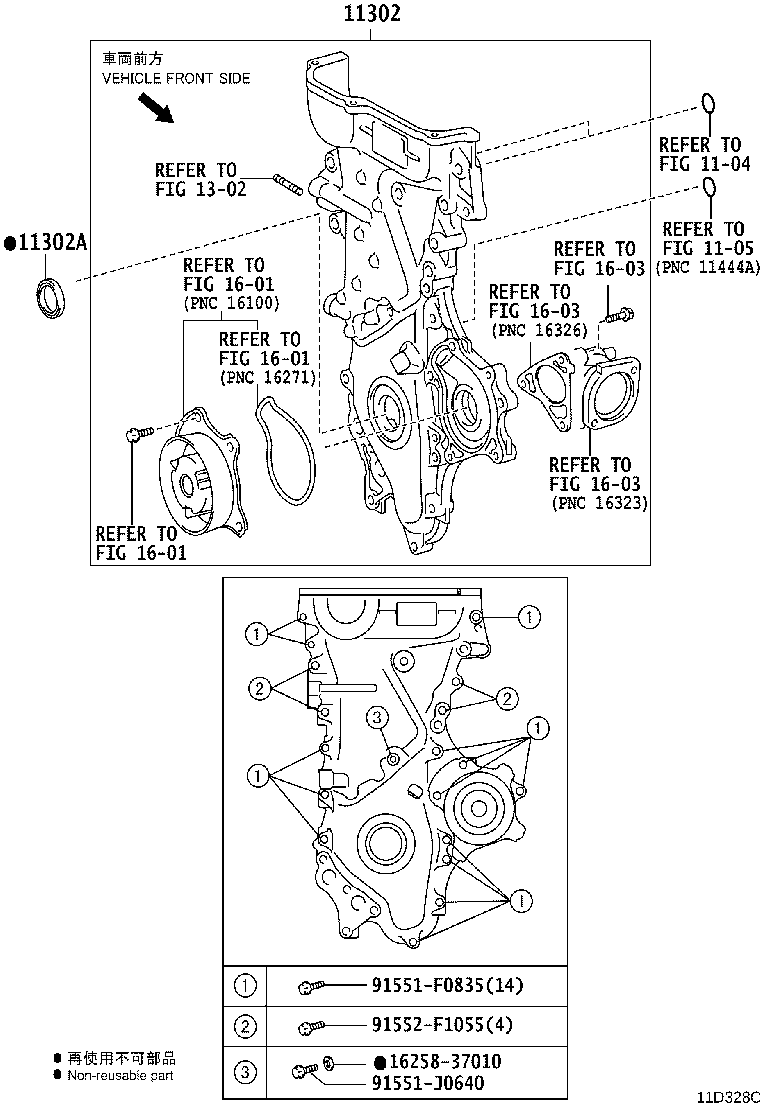

Figure 117499E 117499E 2012-04 → — Figure 11D866B 11D866B 2015-03 → — Figure 11D328C 11D328C 2012-04 → —

Part groups

PNCDescription
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11310 Cover Assy, Timing Chain
11310A Plug, Taper Screw(FOR TIMING CHAIN COVER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
