Toyota Corolla Axio/Fielder

2012-04 → present · chassis NKE165,NRE16#,NZE16#,ZRE162 · catalogue 151170 · Japan

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

14 part groups · 5 illustrations

Illustrations

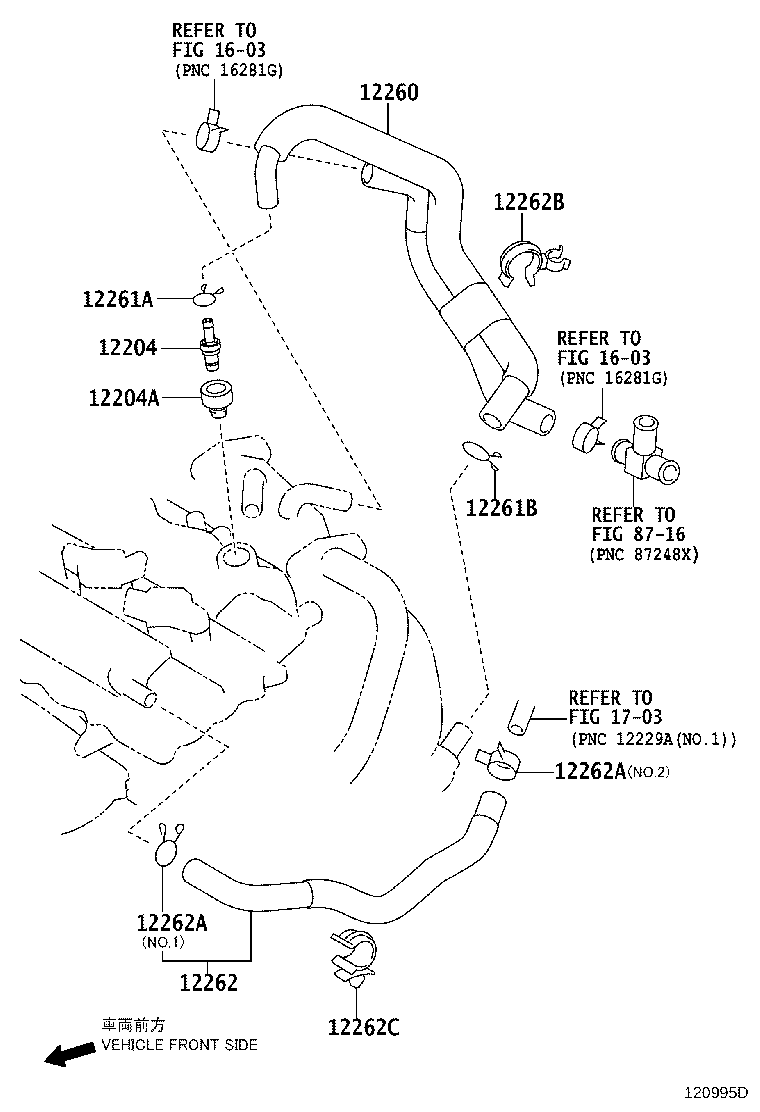

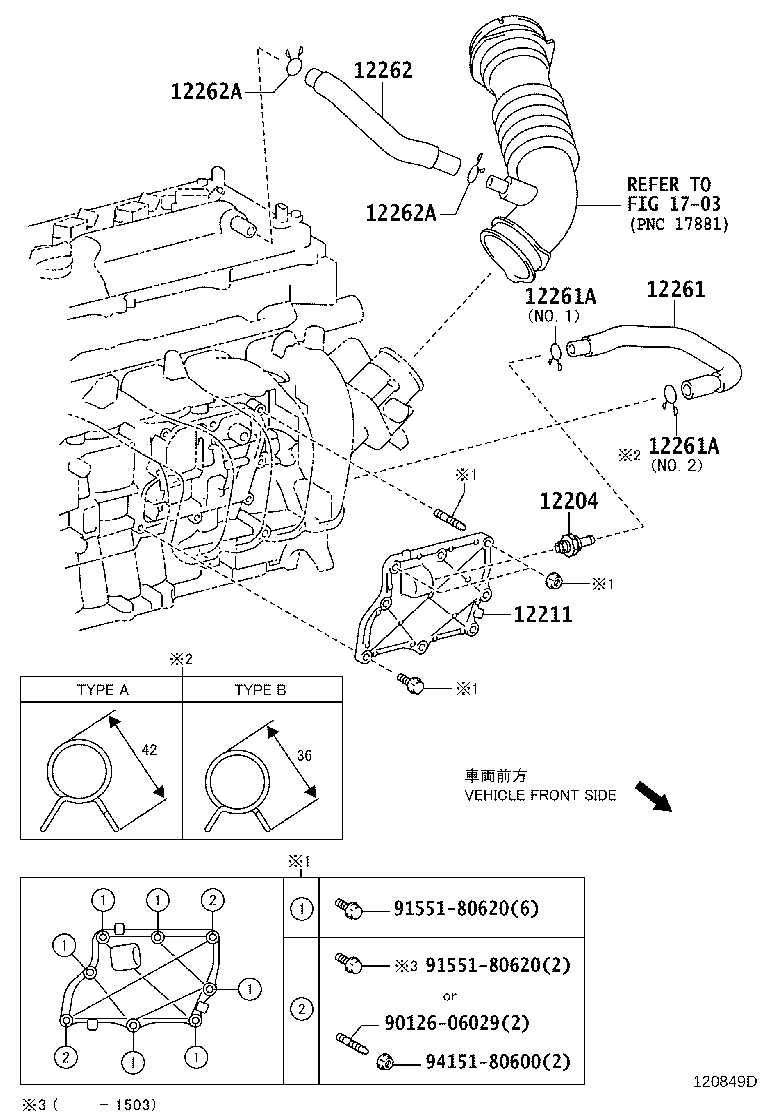

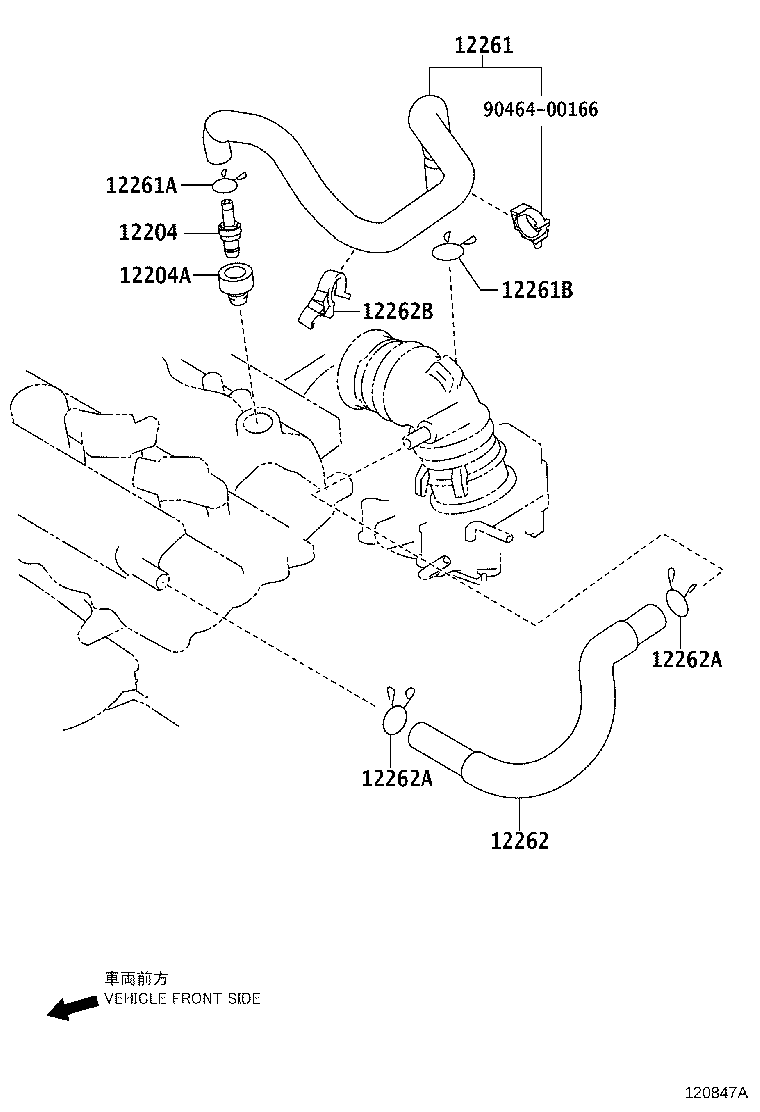

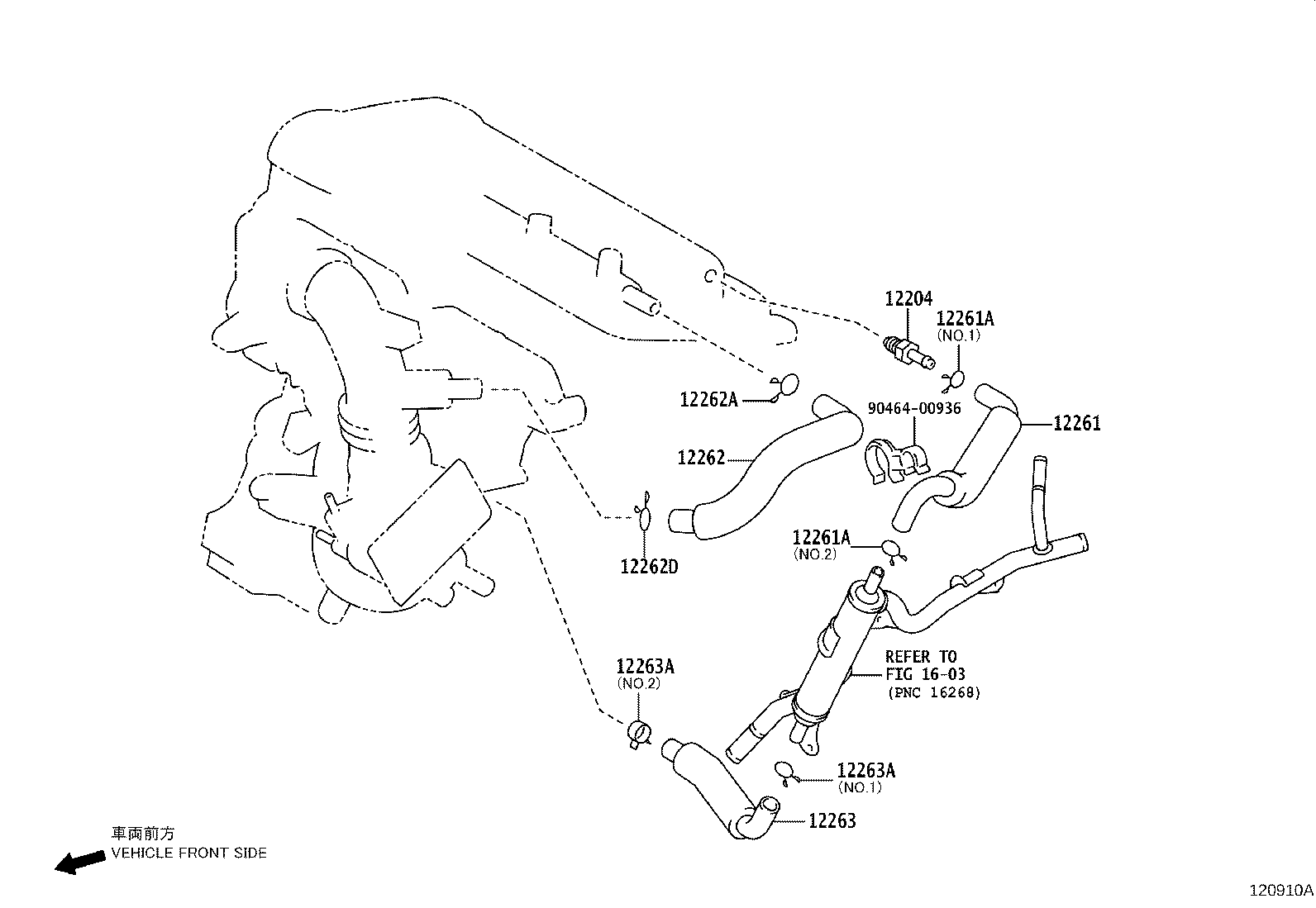

Figure 120846A 120846A 2012-04 → — Figure 120847A 120847A 2012-04 → — Figure 120910A 120910A 2013-07 → — Figure 120995D 120995D 2015-03 → — Figure 120849D 120849D 2012-04 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12211 Case, Ventilation, NO.1
12260 Hose Assy, Ventilation
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12261B Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12262B Clamp(FOR VENTILATION HOSE)
12262C Clamp, Ventilation Hose, NO.2
12262D Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
