Toyota Corolla Axio/Fielder

2012-04 → present · chassis NKE165,NRE16#,NZE16#,ZRE162 · catalogue 151170 · Japan

Supported model Data version 2018-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

4 part groups · 5 illustrations

Illustrations

Figure 164787G

164787G 2012-04 → —

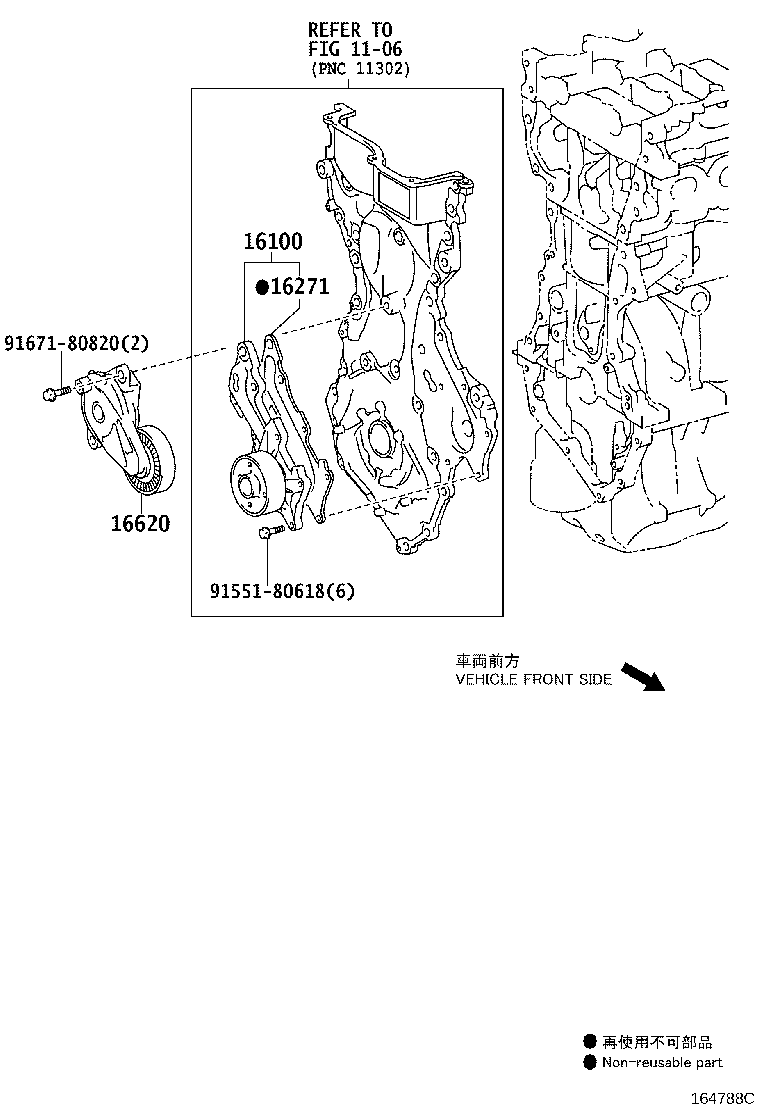

Figure 164788C

164788C 2012-04 → —

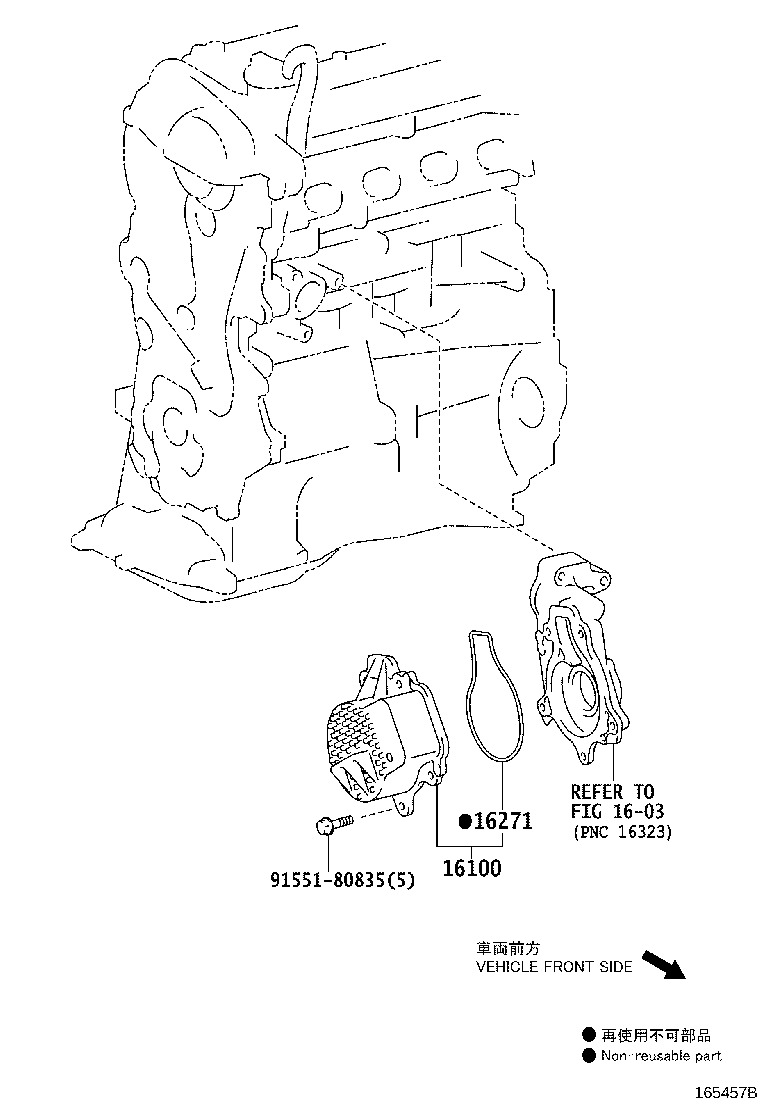

Figure 165457B

165457B 2013-07 → —

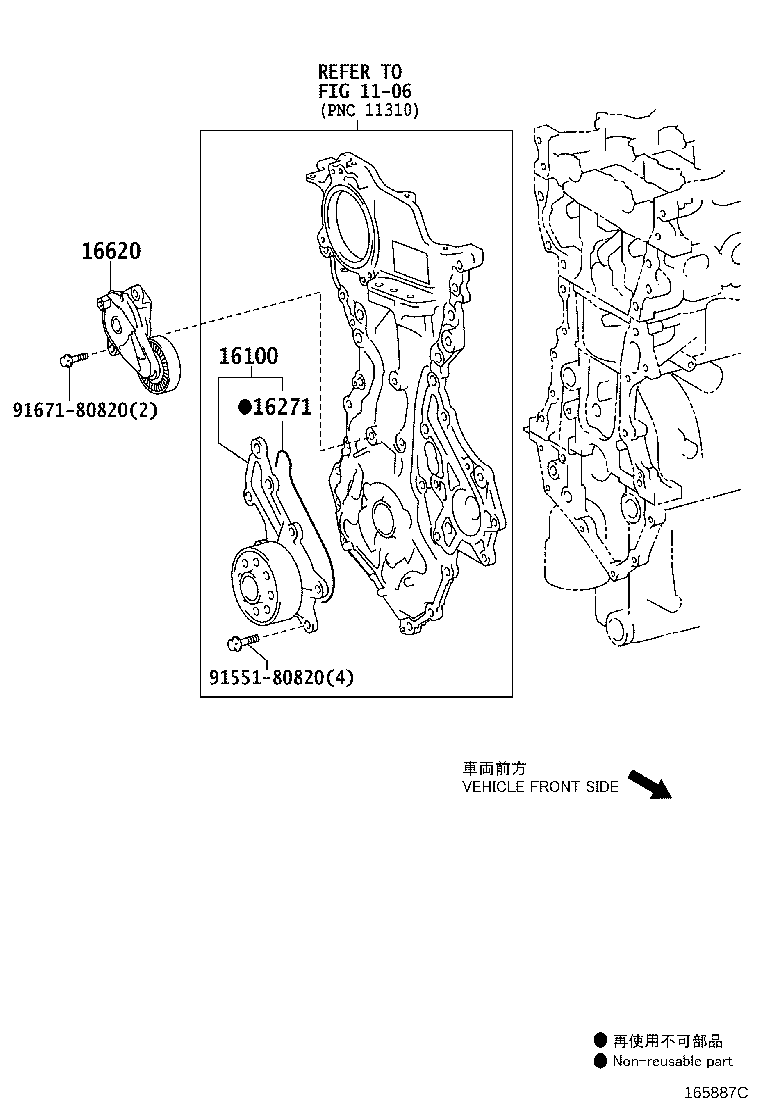

Figure 165887C

165887C 2015-03 → —

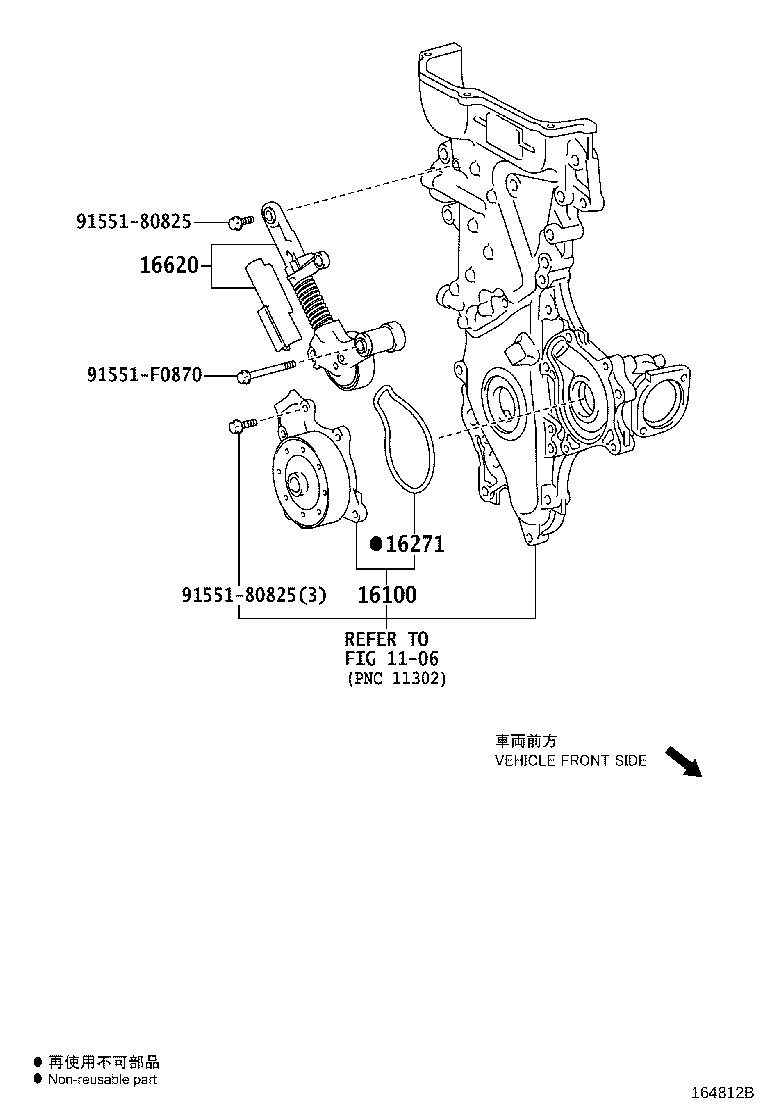

Figure 164812B

164812B 2012-04 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16173	Pulley, Water Pump
16271	Gasket, Water Pump
16620	Tensioner Assy, V-ribbed Belt

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
