Toyota Corolla Axio/Fielder

2012-04 → present · chassis NKE165,NRE16#,NZE16#,ZRE162 · catalogue 151170 · Japan

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

14 part groups · 4 illustrations

Illustrations

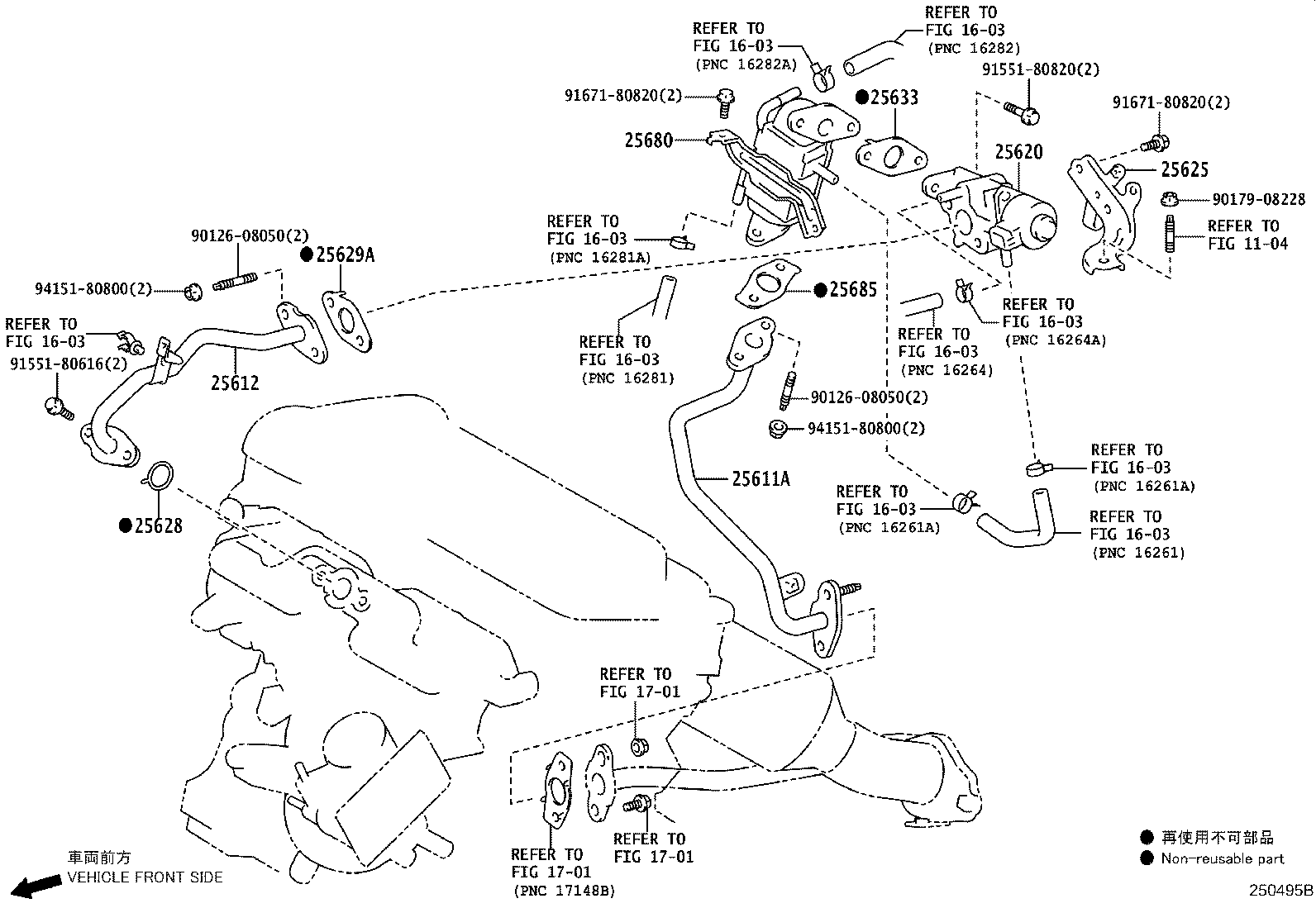

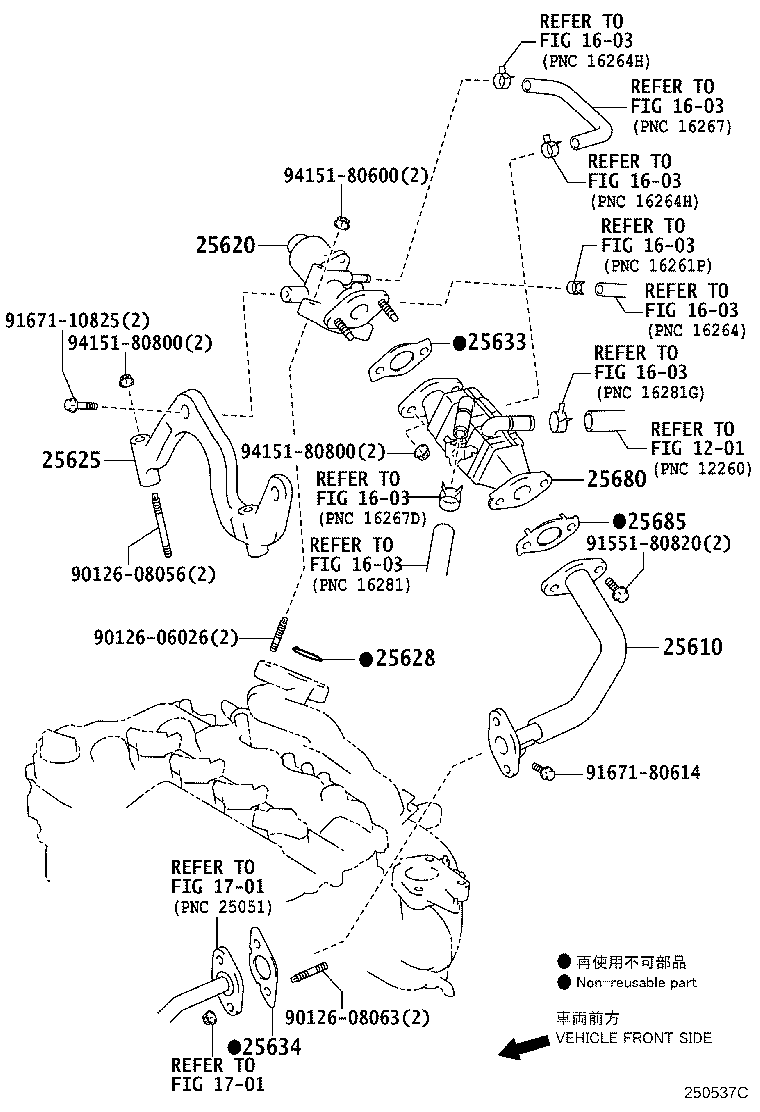

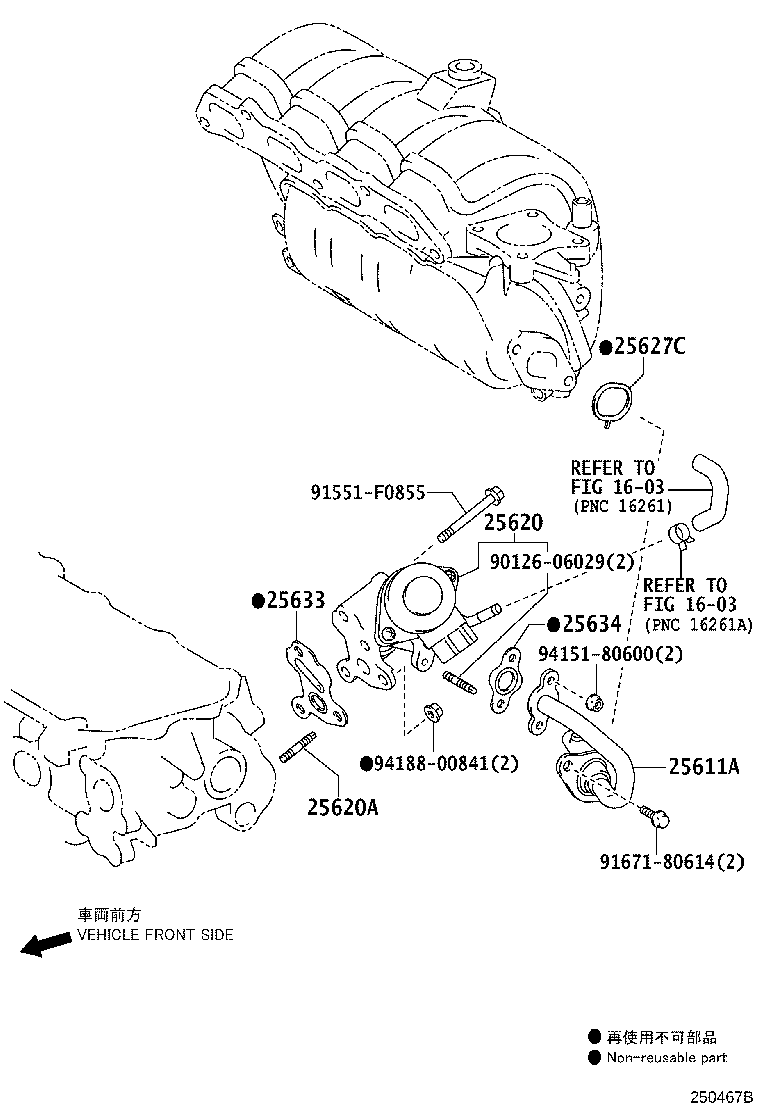

Figure 250466D 250466D 2012-04 → — Figure 250467B 250467B 2012-04 → — Figure 250495B 250495B 2013-07 → — Figure 250537C 250537C 2015-03 → —

Part groups

PNCDescription
25610 Pipe Assy, Egr
25611A Pipe, Egr, NO.1
25612 Pipe, Egr, NO.2
25620 Valve Assy, Egr
25620A Bolt, Stud(FOR EGR VALVE)
25625 Bracket, Egr Valve
25627C Gasket(FOR EGR PIPE NO.2)
25628 Gasket, Egr Inlet
25629A Gasket, Egr Pipe, NO.2
25633 Gasket, Egr Valve
25634 Gasket, Egr Pipe
25638 Chamber, Egr Delivery
25680 Cooler Assy, Egr
25685 Gasket, Egr Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
