Toyota Corolla Axio/Fielder
2012-04 → present · chassis NKE165,NRE16#,NZE16#,ZRE162 · catalogue 151170 · Japan
Supported model
Data version 2018-02

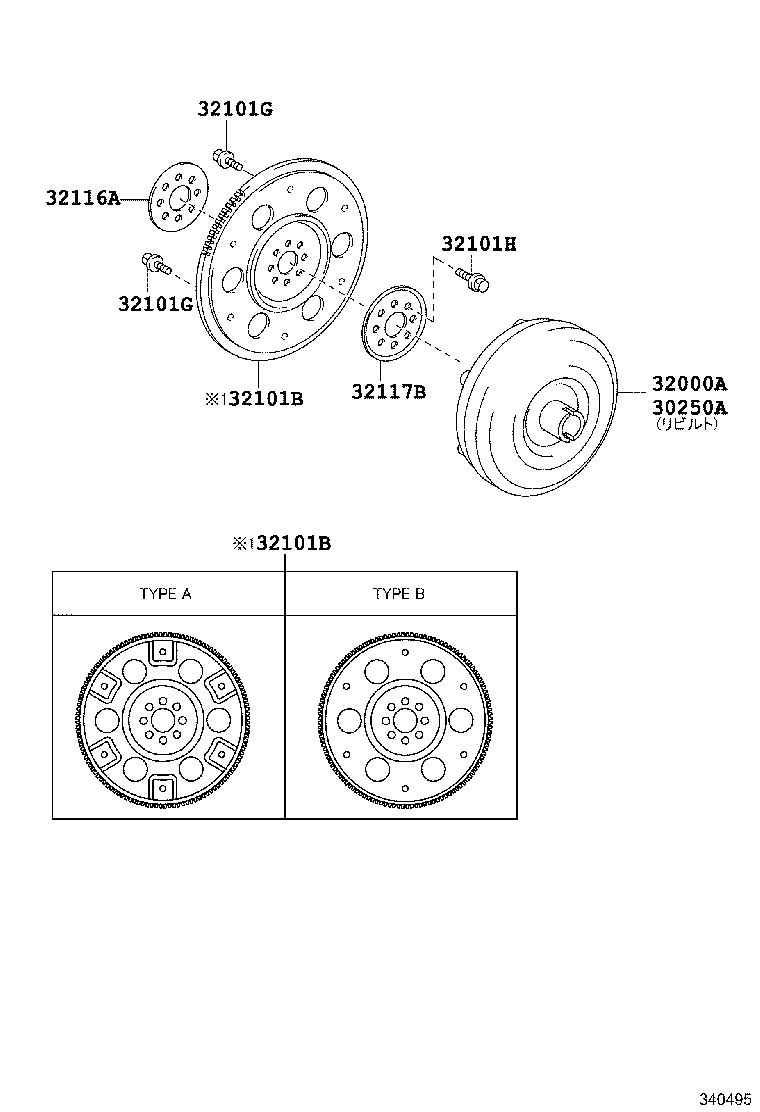

Torque Converter, Front Oil Pump(CVT)
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 30250A | Converter Assy, Torque, Rebuilt |
| 32000A | Converter Assy, Torque |
| 32101B | Gear Sub-assy, Drive Plate & Ring |
| 32101G | Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) |
| 32101H | Bolt, Hexagon(FOR DRIVE PLATE SETTING) |
| 32116A | Spacer, Drive Plate, Front |
| 32117B | Spacer, Drive Plate, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
