Toyota Corolla Axio/Fielder

2012-04 → present · chassis NKE165,NRE16#,NZE16#,ZRE162 · catalogue 151170 · Japan

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

9 part groups · 3 illustrations

Illustrations

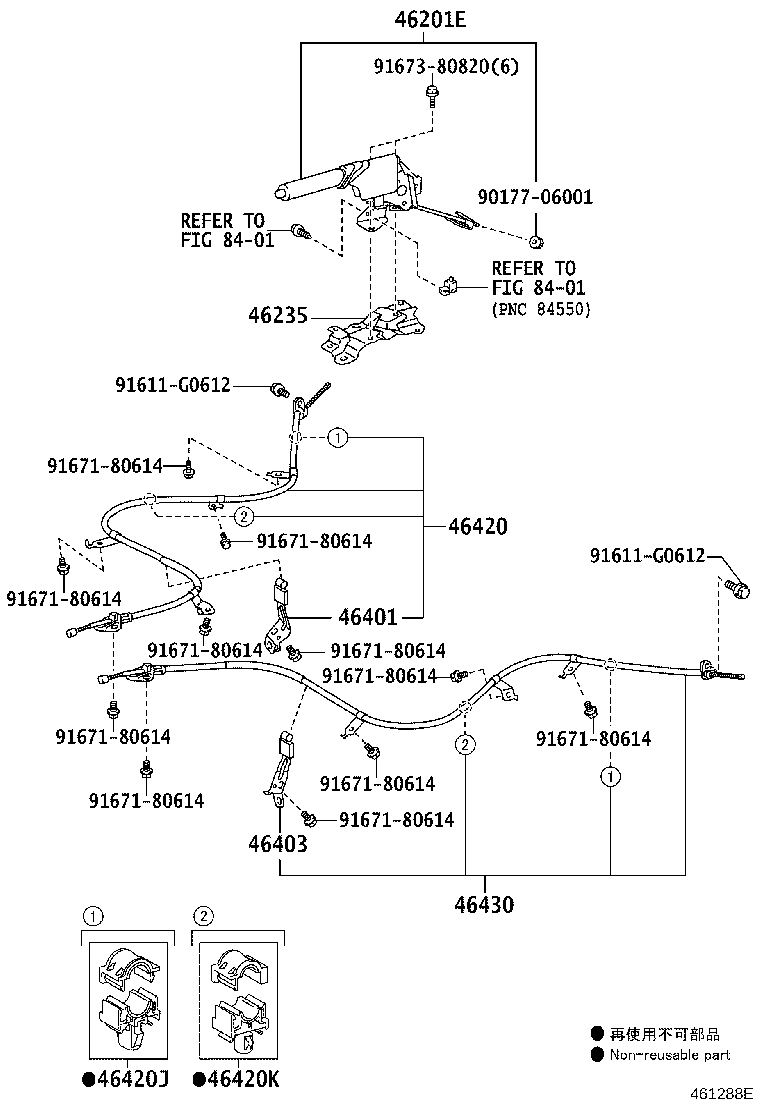

Figure 461287G 461287G 2012-04 → — Figure 461288E 461288E 2012-04 → — Figure 461365D 461365D 2013-07 → —

Part groups

PNCDescription
46201E Lever Sub-assy, Parking Brake
46235 Bracket, Parking Brake Lever Support
46401 Bracket Sub-assy, Cable Support
46403 Bracket Sub-assy, Cable Support, LH
46410C Clamp(FOR PARKING BRAKE FRONT CABLE)
46420 Cable Assy, Parking Brake, NO.2
46420J Clamp, NO.3(FOR PARKING BRAKE CABLE)
46420K Clamp, NO.4(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
