Toyota Corolla Axio/Fielder
2012-04 → present · chassis NKE165,NRE16#,NZE16#,ZRE162 · catalogue 151170 · Japan
Supported model
Data version 2018-02

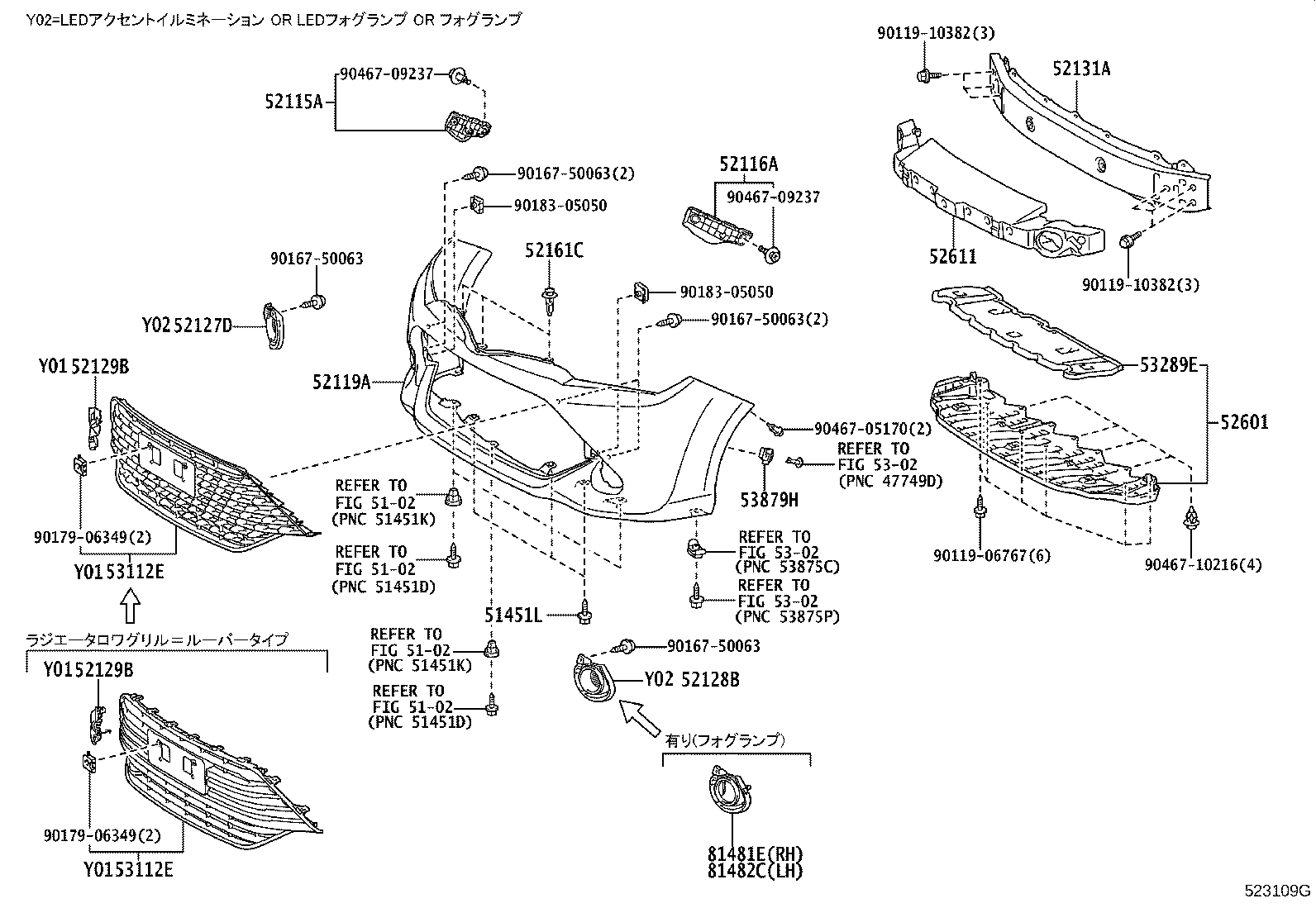

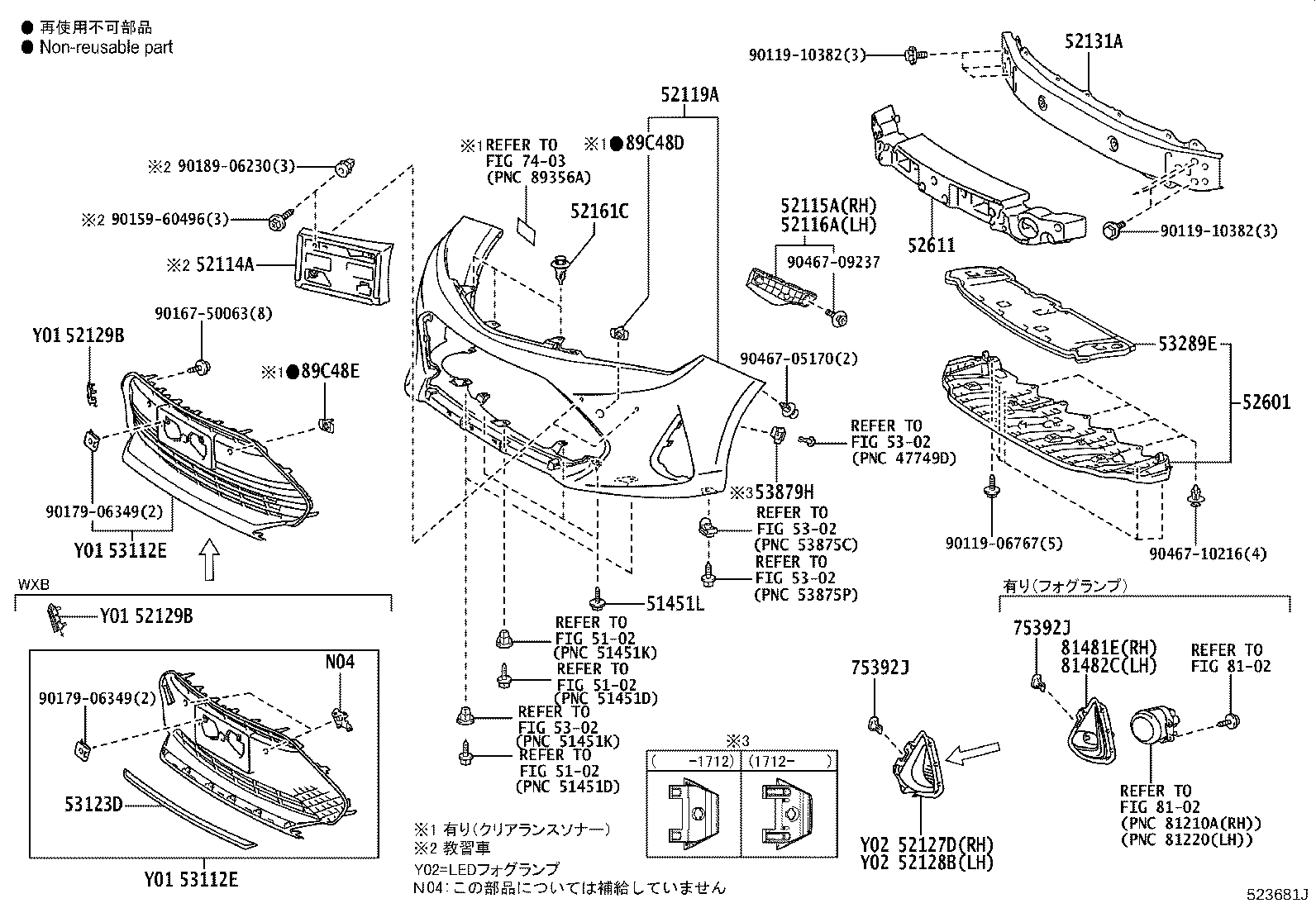

Front Bumper & Bumper Stay
24 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 51451L | Bolt, NO.1 |
| 52114A | Bracket, Front Bumper Extension Mounting |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52129B | Cover, Front Bumper, Lower |
| 52131A | Reinforcement, Front Bumper |
| 52161C | Piece, Front Bumper |
| 52162C | Piece, Front Bumper |
| 52521A | Clip(FOR FRONT BUMPER RETAINER) |
| 52601 | Absorber Sub-assy, Front Bumper Energy |
| 52611 | Absorber, Front Bumper Energy |
| 52618 | Absorber, Front Bumper, Lower |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53123D | Moulding, Radiator Grille, Lower |
| 53289E | Cover, Radiator Support Opening |
| 53879H | Retainer, Front Fender Liner |
| 75392J | Retainer, Outside Moulding |
| 81481E | Cover, Fog Lamp, RH |
| 81482C | Cover, Fog Lamp, LH |
| 89C48D | Retainer, Ultrasonic Sensor, Front Corner |
| 89C48E | Retainer, Ultrasonic Sensor, Front Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
