Toyota Corolla Axio/Fielder

2012-04 → present · chassis NKE165,NRE16#,NZE16#,ZRE162 · catalogue 151170 · Japan

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

7 part groups · 4 illustrations

Illustrations

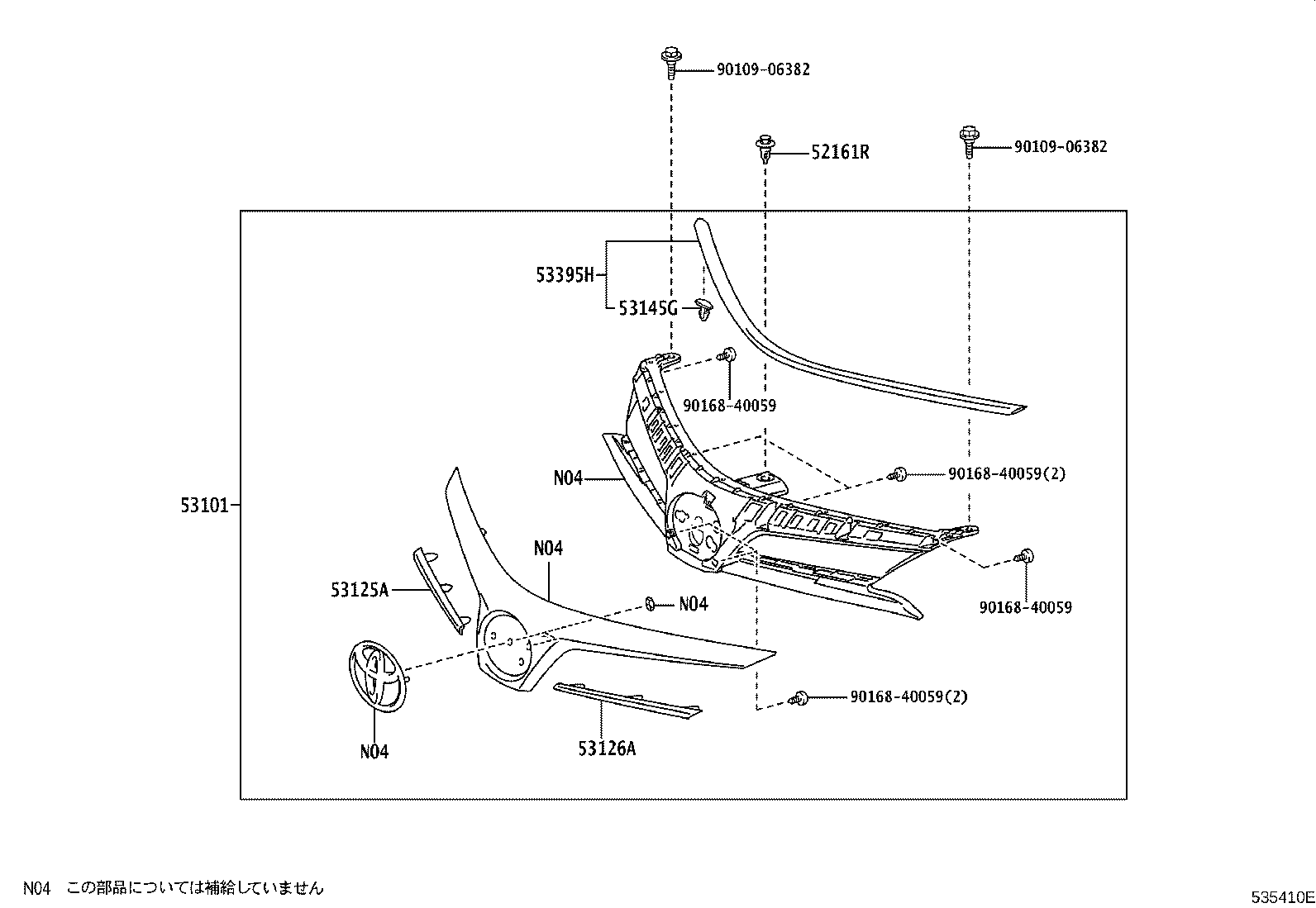

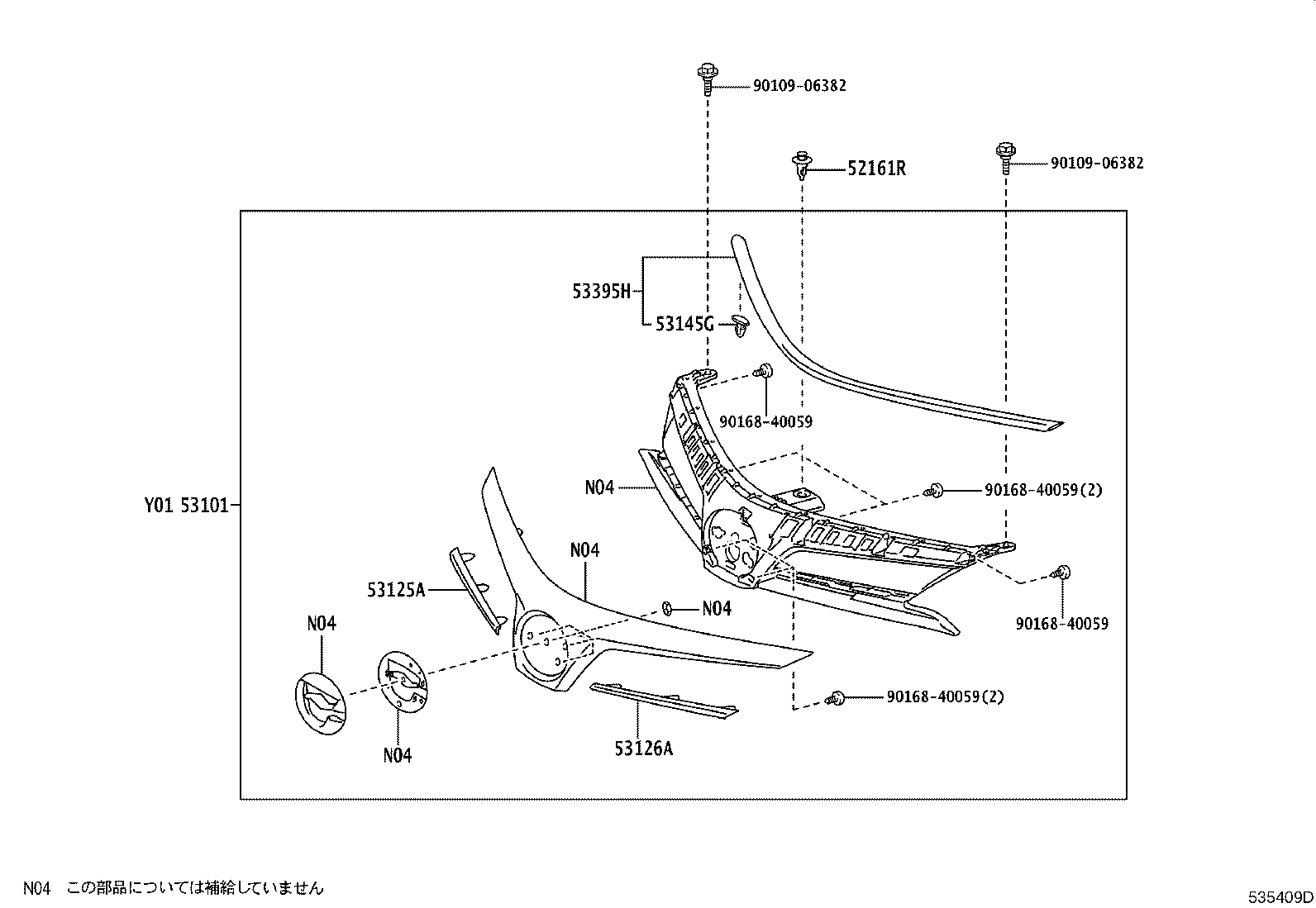

Figure 533750D 533750D 2012-04 → 2015-03 Figure 534480 534480 2015-03 → 2017-10 Figure 535409D 535409D 2017-10 → — Figure 535410E 535410E 2018-02 → —

Part groups

PNCDescription
52161R Piece, Front Bumper
53101 Grille Sub-assy, Radiator
53121A Moulding, Radiator Grille
53125A Moulding, Radiator Grille, Center RH
53126A Moulding, Radiator Grille, Center LH
53145G Clip, Radiator Grille
53395H Seal, Hood TO Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
