Toyota Corolla Axio/Fielder
2012-04 → present · chassis NKE165,NRE16#,NZE16#,ZRE162 · catalogue 151170 · Japan
Supported model
Data version 2018-02

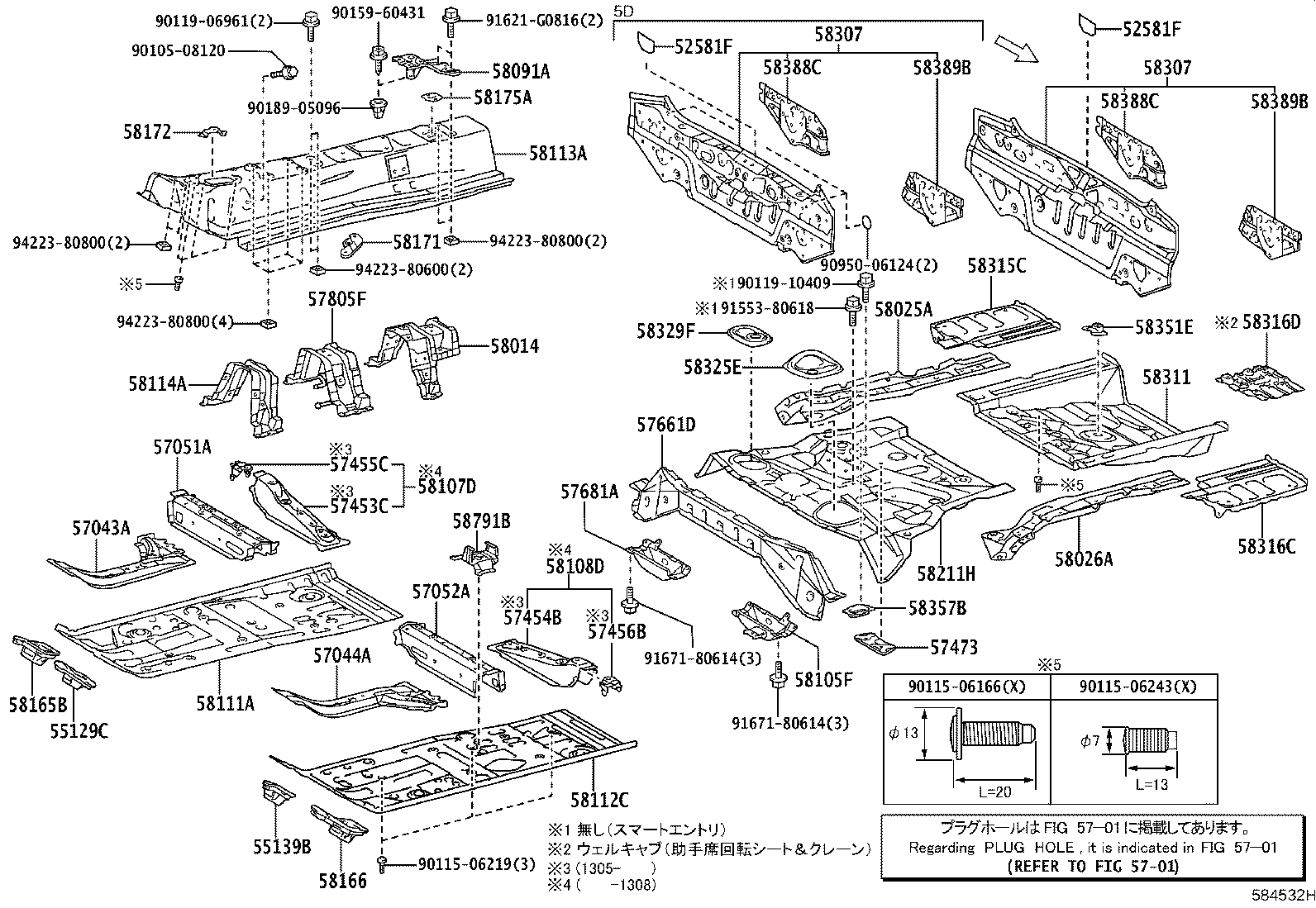

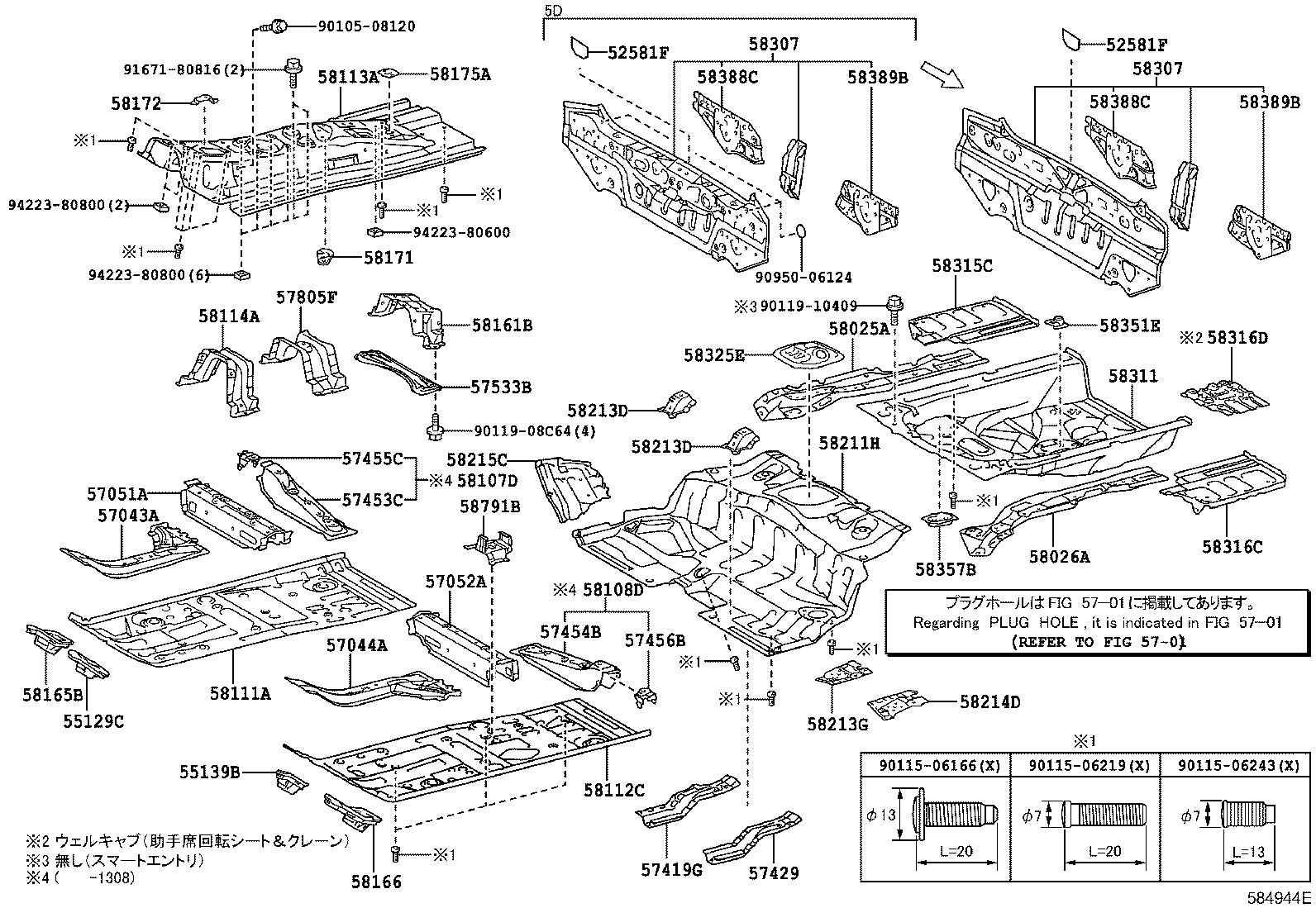

Floor Pan & Lower Back Panel
54 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52581F | Protector, Rear Bumper |
| 55129C | Cover, Dash Panel Hole |
| 55139B | Cover, Dash Panel Hole, LH |
| 57043A | Reinforcement Sub-assy, Front Side Member, Rear RH |
| 57044A | Reinforcement Sub-assy, Front Side Member, Rear LH |
| 57051A | Member Sub-assy, Front Floor Cross, RH |
| 57052A | Member Sub-assy, Front Floor Cross, LH |
| 57419G | Reinforcement, Front Floor Under, Rear RH |
| 57429 | Reinforcement, Front Floor Under, Rear LH |
| 57453C | Member, Front Floor Cross Side, RH |
| 57454B | Member, Front Floor Cross Side, LH |
| 57455C | Bracket, Front Seat Mounting, Outside RH |
| 57456B | Bracket, Front Seat Mounting, Outside LH |
| 57473 | Reinforcement, Rear Seatback Hinge |
| 57533B | Brace, Front Floor, Center |
| 57661 | Panel, Rear Floor Side, Front RH |
| 57661D | Member, Rear Floor Cross, Front |
| 57681A | Brace, Rear Floor NO.2 Crossmember, Outer |
| 57805F | Reinforcement Sub-assy, Belt Anchor, NO.1 |
| 58014 | Panel Sub-assy, Front Floor, Rear Lower |
| 58025A | Panel Sub-assy, Floor Side Rail, FR RH |
| 58026A | Panel Sub-assy, Floor Side Rail, FR LH |
| 58091A | Reinforcement Set, Body Fitting |
| 58105F | Retainer Sub-assy, Floor Clamp |
| 58107D | Reinforce Sub-assy, Front Cross TO Front Panel, RH |
| 58108D | Reinforce Sub-assy, Front Cross TO Front Panel, LH |
| 58111A | Pan, Front Floor, RH |
| 58112C | Pan, Front Floor, LH |
| 58113A | Panel, Front Floor, Center |
| 58114A | Reinforcement, Front Floor Panel |
| 58161B | Reinforcement, Belt Anchor TO Floor Pan |
| 58165B | Cover, Front Floor, RH |
| 58166 | Cover, Front Floor, LH |
| 58171 | Reinforcement, Parking Brake Base |
| 58172 | Bracket, Computer Mounting, NO.3 |
| 58175A | Reinforcement, Parking Brake Base, NO.1 |
| 58211H | Pan, Center Floor |
| 58213D | Reinforcement, Center Floor Panel |
| 58213G | Reinforcement, Center Floor Panel, NO.1 RH |
| 58214D | Reinforcement, Center Floor Panel, NO.1 LH |
| 58215C | Reinforcement, Center Floor Panel, NO.2 RH |
| 58296G | Bracket, Front Floor Brace Mounting |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58315C | Extension, Rear Floor Side Panel, RH |
| 58316C | Extension, Rear Floor Side Panel, LH |
| 58316D | Extension, Rear Floor Pan, LH |
| 58325E | Cover, Rear Floor Service Hole |
| 58329F | Cover, Rear Floor Service Hole, NO.2 |
| 58351E | Bracket, Spare Wheel Clamp |
| 58357B | Bracket, Actuator Cover, NO.3 RH |
| 58388C | Plate, Body Lower Back Reinforcement, RH |
| 58389B | Plate, Body Lower Back Reinforcement, LH |
| 58791B | Carrier, Jack |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
