Toyota Corolla Axio/Fielder

2012-04 → present · chassis NKE165,NRE16#,NZE16#,ZRE162 · catalogue 151170 · Japan

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

15 part groups · 2 illustrations

Illustrations

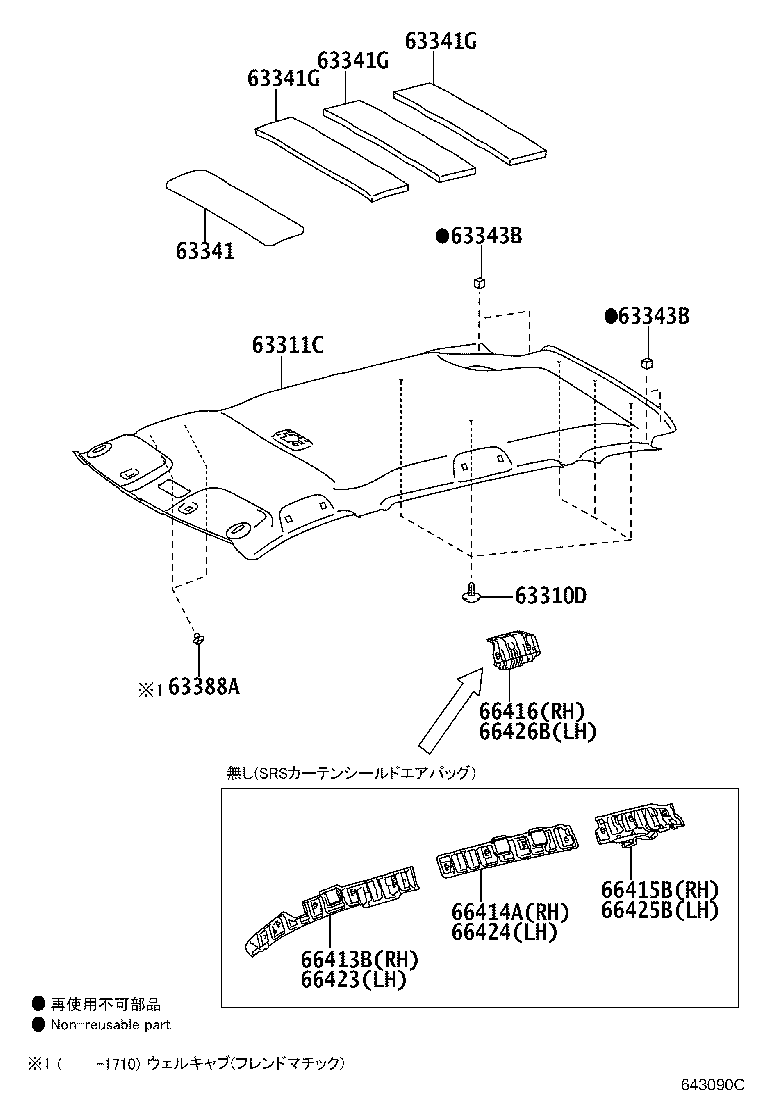

Figure 643089 643089 2012-04 → — Figure 643090C 643090C 2012-04 → —

Part groups

PNCDescription
63310D Clip, Roof Headlining
63311C Headlining, Roof
63339A Cover, Roof Headlining Service Hole
63341 Pad, Roof Silencer, NO.1
63341G Pad, Roof Silencer
63343B Pad, Roof Silencer, Rear
63388A Cover, Roof Headlining Holder
66413B Spacer, Side Rail, Front RH
66414A Spacer, Side Rail, Rear RH
66415B Spacer, Side Rail, Rear NO.2 RH
66416 Spacer, Side Rail, Rear NO.3 RH
66423 Spacer, Side Rail, Front LH
66424 Spacer, Side Rail, Rear LH
66425B Spacer, Side Rail, Rear NO.2 LH
66426B Spacer, Side Rail, Rear NO.3 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
