Toyota Corolla Axio/Fielder
2012-04 → present · chassis NKE165,NRE16#,NZE16#,ZRE162 · catalogue 151170 · Japan
Supported model
Data version 2018-02

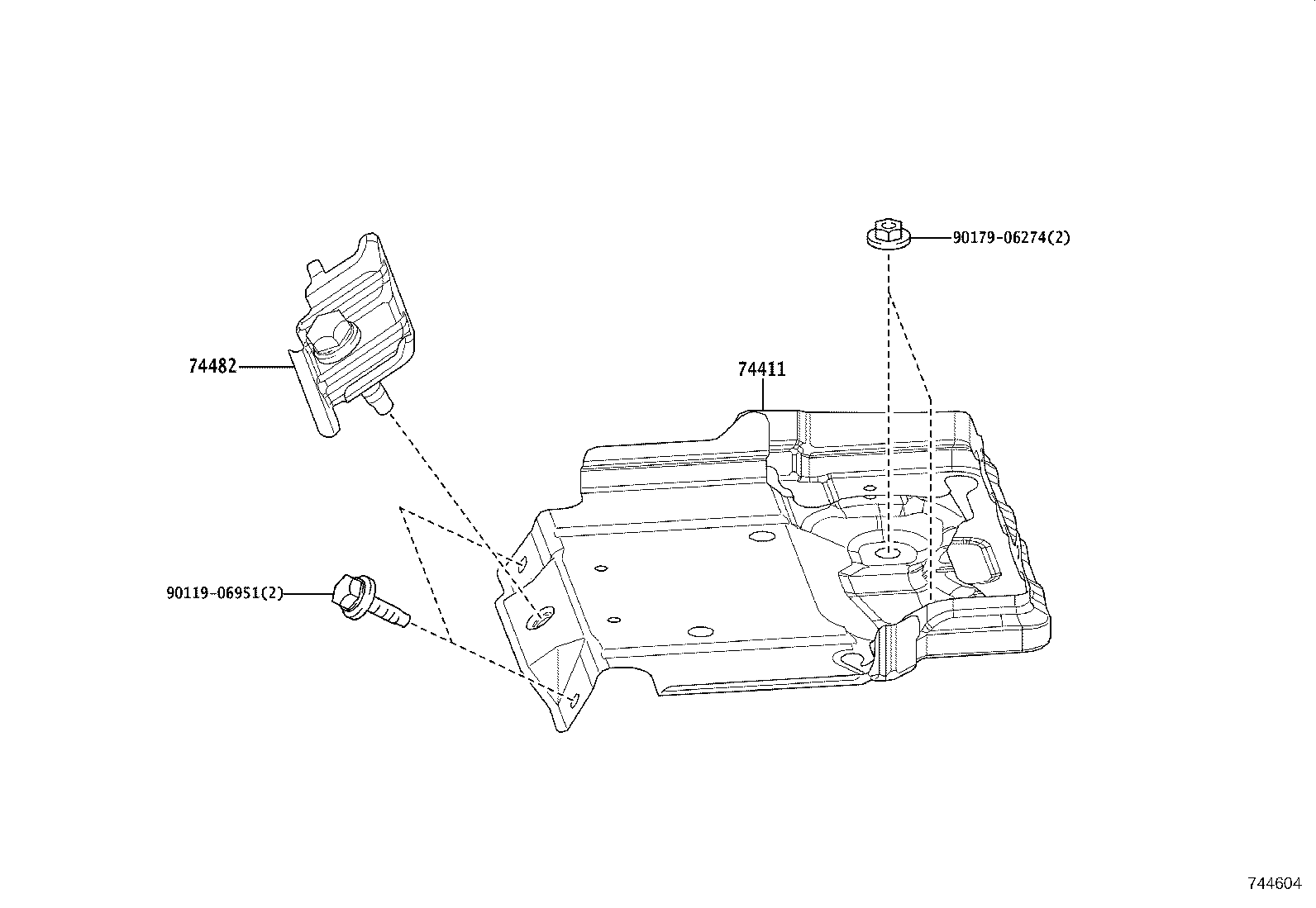

Battery Carrier
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 74404A | Clamp Sub-assy, Battery |
| 74410 | Carrier Assy, Battery |
| 74411 | Carrier, Battery |
| 74417 | Bracket, Battery Carrier |
| 74431 | Tray, Battery |
| 74451B | Bolt, Battery Clamp |
| 74481A | Clamp, Battery |
| 74482 | Clamp, Battery, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
