Toyota Corolla Axio/Fielder

2012-04 → present · chassis NKE165,NRE16#,NZE16#,ZRE162 · catalogue 151170 · Japan

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

32 part groups · 4 illustrations

Illustrations

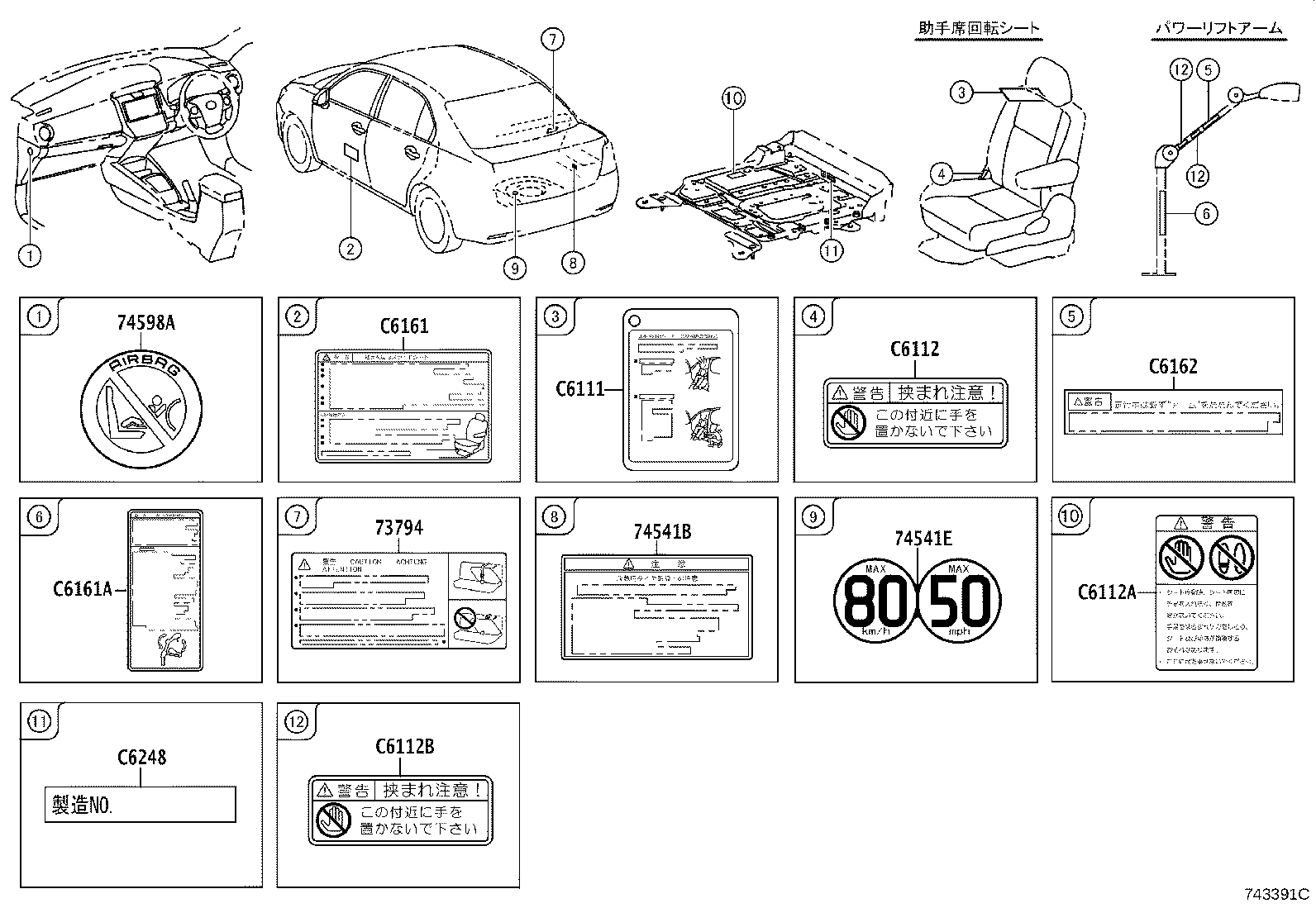

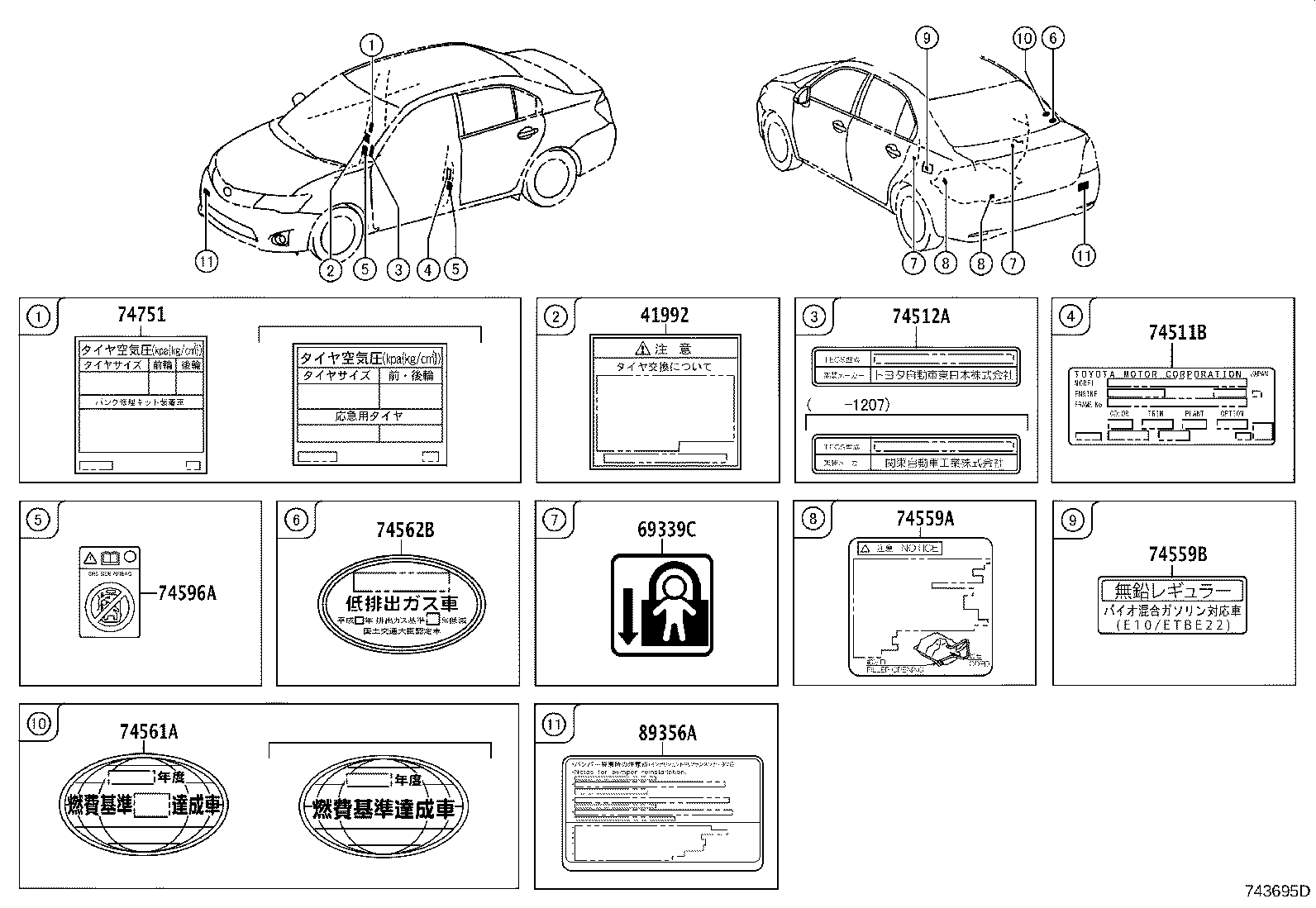

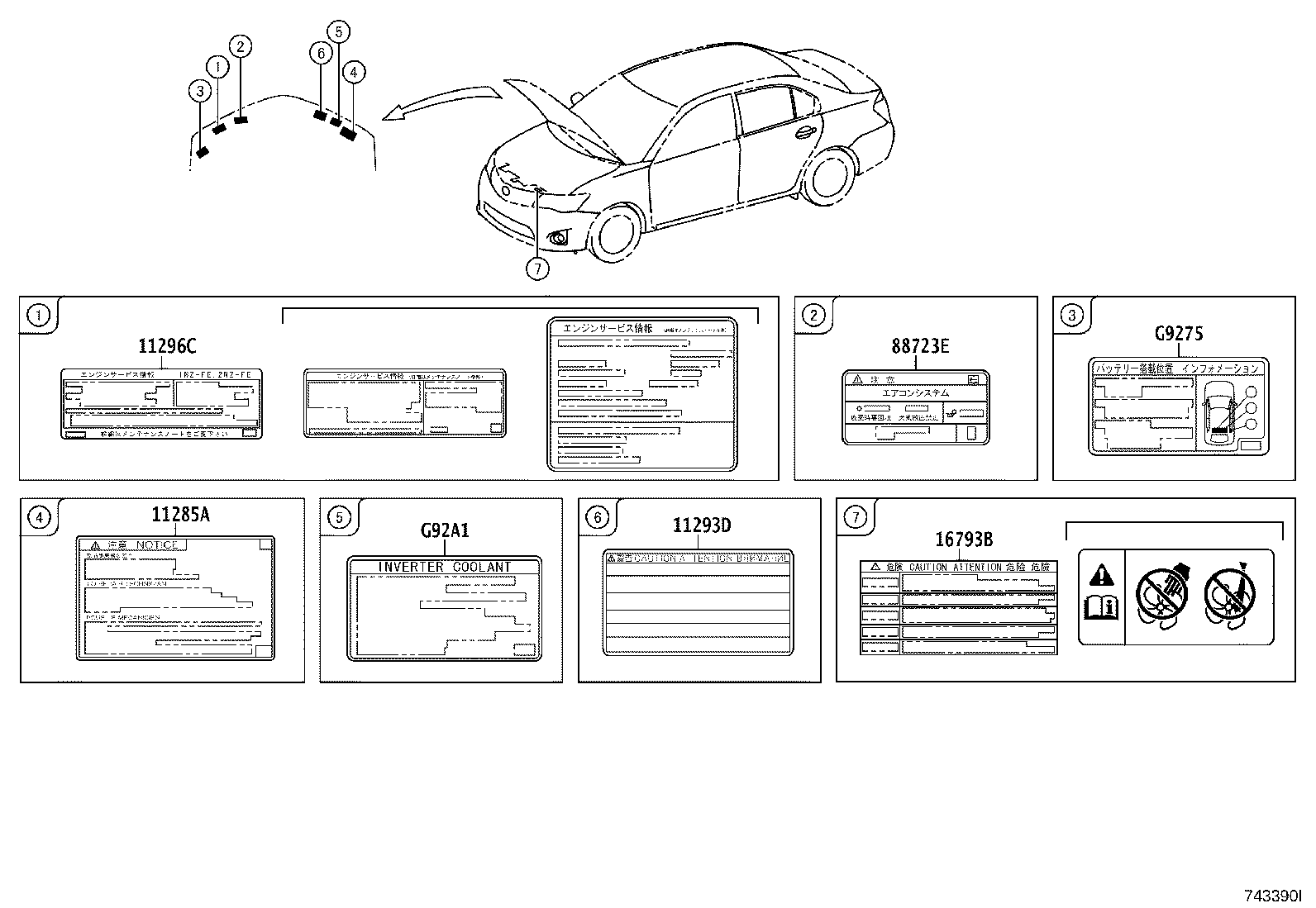

Figure 745500A 745500A 2012-04 → — Figure 743390I 743390I 2012-04 → — Figure 743695D 743695D 2012-04 → — Figure 743391C 743391C 2012-04 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11291B Plate, Engine Name
11293D Label, Engine Caution
11296C Label, Engine Service Information
16793B Label, Cooling Fan Information
16793E Label, Cooling Fan Caution
41992 Label, Differential Notice
69339C Label, Child Protector Information
73794 Label, Rear Seat Belt Notice
74511B Plate, Name
74512A Plate, Identification Number
74541B Plate, Compact Spare Tire Caution
74541E Plate, Compact Spare Tire Caution
74559A Plate, Fuel Caution
74559B Label, Fuel Information
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74596A Label, Side Airbag Caution
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
88723E Label, Cooler Service Caution
89356A Label, Clearance Warning Information
C6111 Plate, Safety Caution
C6112 Label, Safety Information, NO.2
C6112A Label, Safety Information
C6112B Label, Safety Information, NO.2
C6161 Label, Power Lift Caution
C6161A Label, Power Lift Caution
C6162 Label, Power Lift Caution, NO.2
C6248 Label, Body Number
G9275 Label, Battery Caution, NO.1
G92A1 Label, Hybrid Coolant System Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
