Toyota Corolla Axio/Fielder

2012-04 → present · chassis NKE165,NRE16#,NZE16#,ZRE162 · catalogue 151170 · Japan

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

10 part groups · 5 illustrations

Illustrations

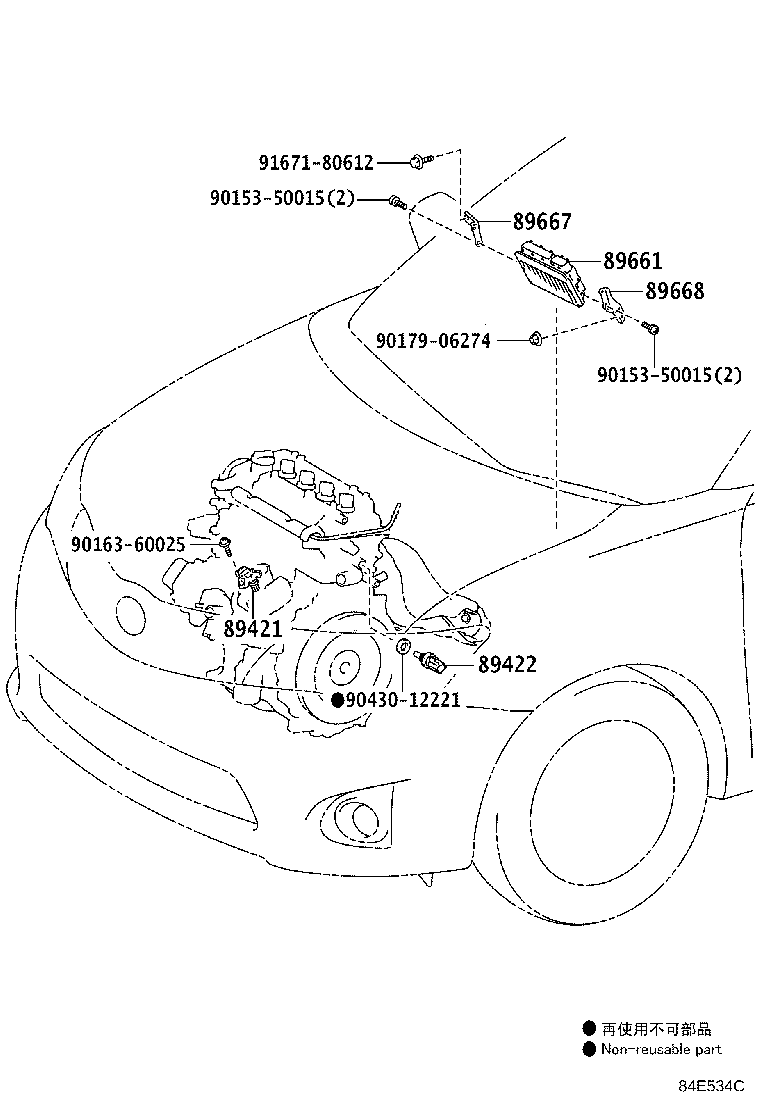

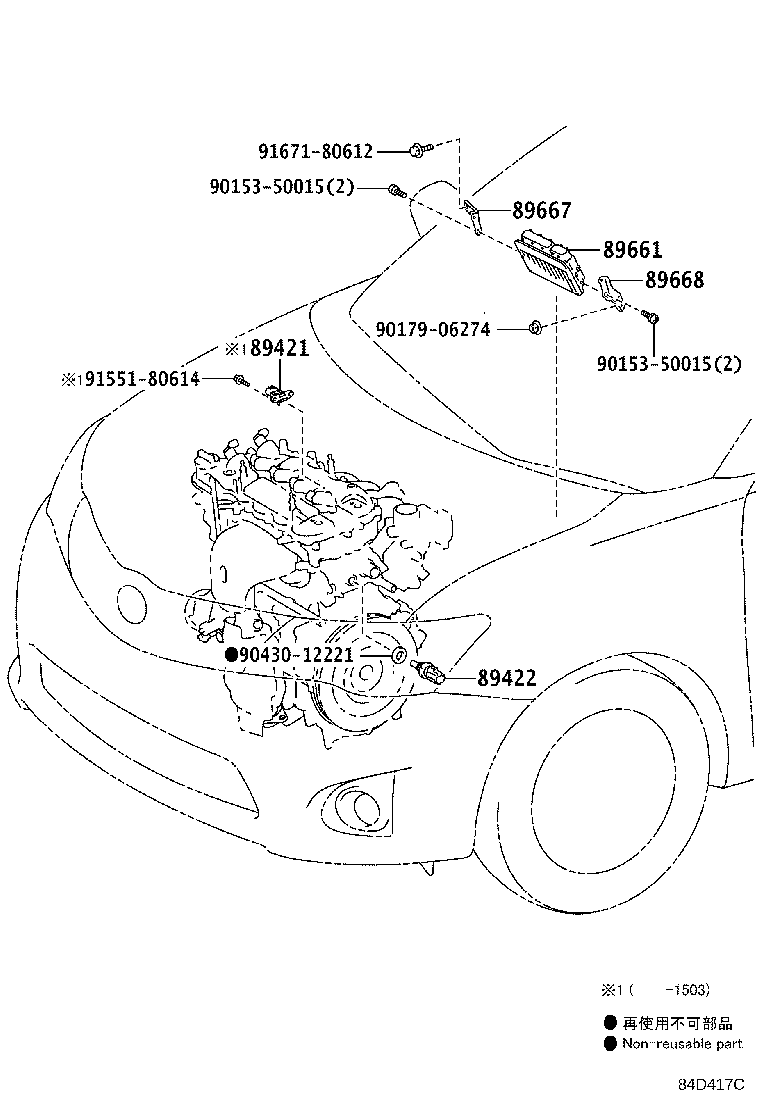

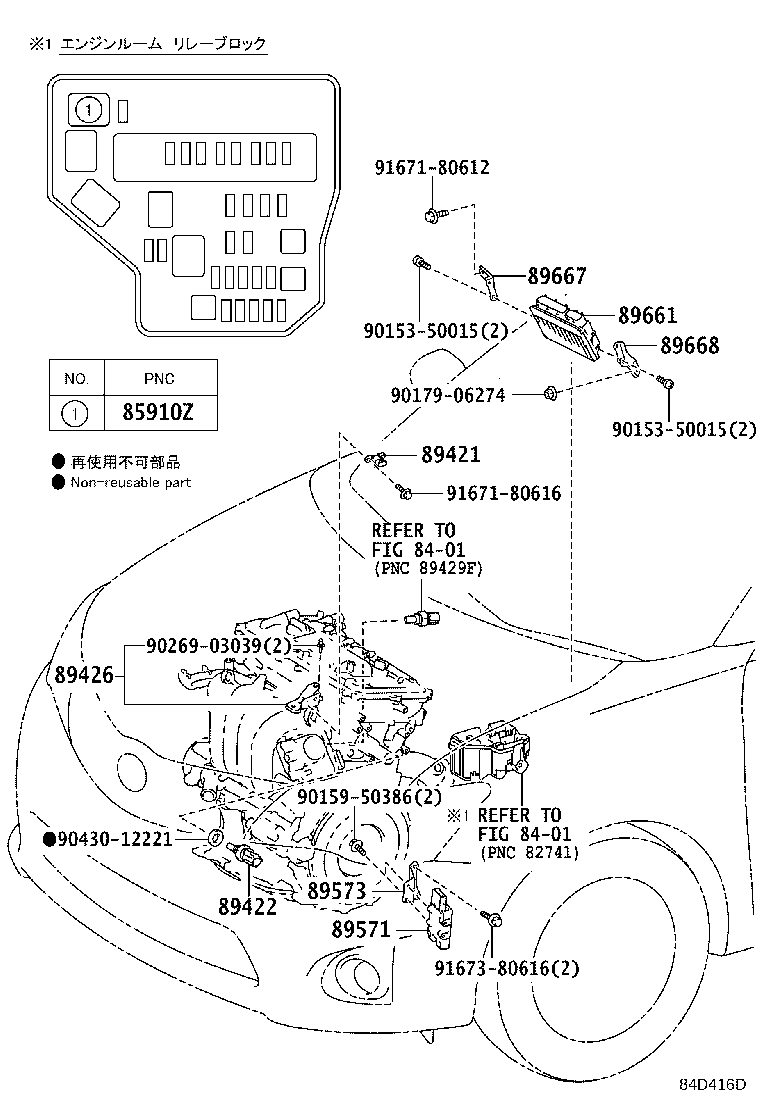

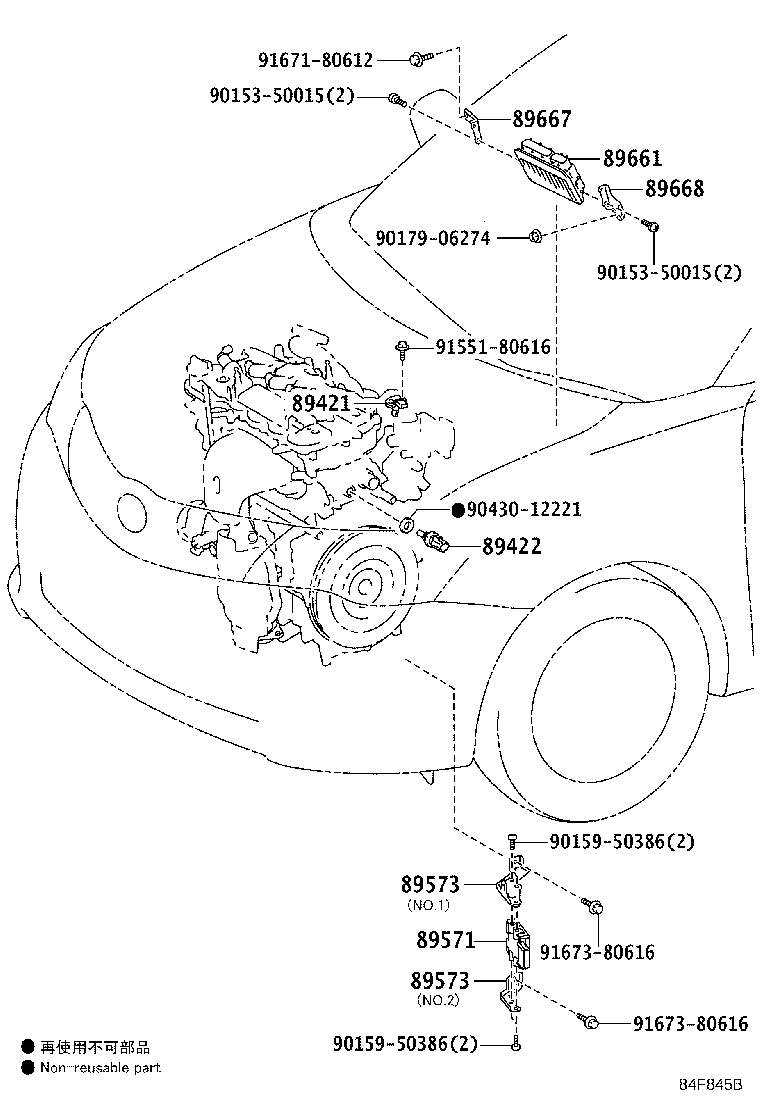

Figure 84D415C 84D415C 2012-04 → — Figure 84D417C 84D417C 2012-04 → — Figure 84D416D 84D416D 2012-04 → — Figure 84E534C 84E534C 2013-07 → — Figure 84F845B 84F845B 2015-03 → —

Part groups

PNCDescription
85910Z Relay, Injection (FOR EFI)
89412A Sensor, E.G.R Gas Temperature
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89426 Bracket, Vacuum Sensor
89571 Computer, Fuel Pump Control
89573 Bracket, Fuel Pump Control Computer
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
