Toyota Corolla Axio/Fielder
2012-04 → present · chassis NKE165,NRE16#,NZE16#,ZRE162 · catalogue 151170 · Japan
Supported model
Data version 2018-02

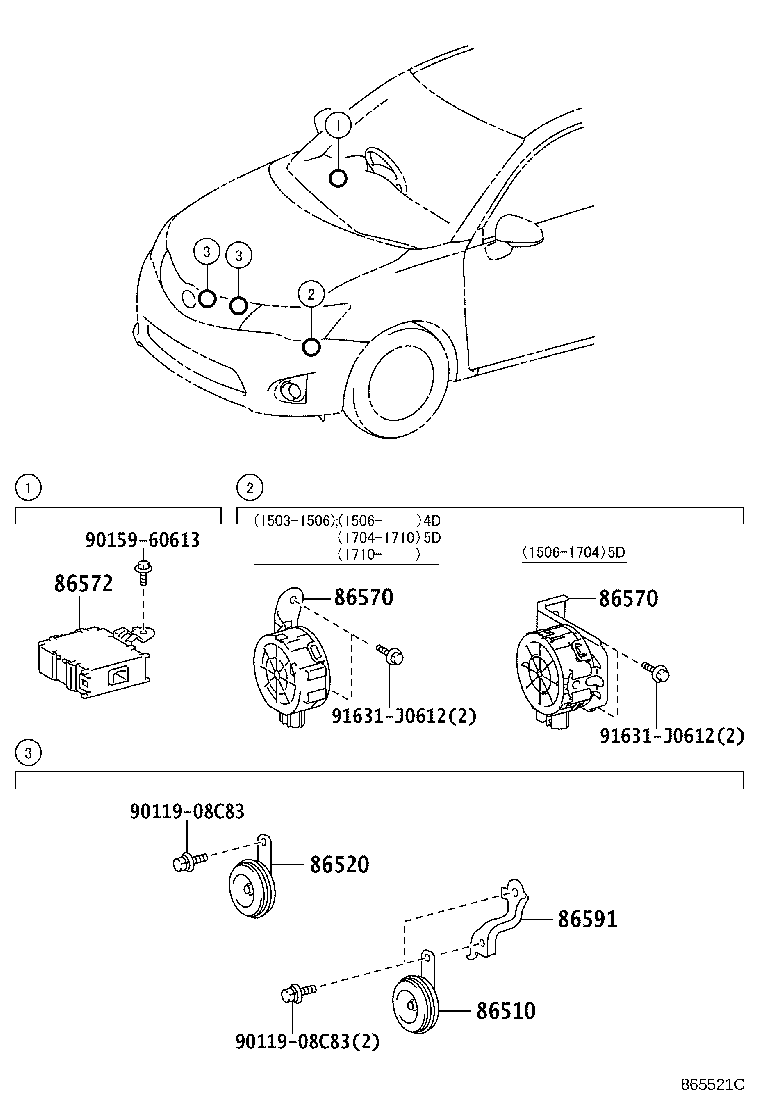

Horn
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86510 | Horn Assy, High Pitched |
| 86520 | Horn Assy, Low Pitched |
| 86570 | Speaker Assy, Vehicle Approaching |
| 86572 | Controller, Vehicle Approaching Speaker |
| 86591 | Bracket, Horn |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
