Toyota Corolla Axio/Fielder
2012-04 → present · chassis NKE165,NRE16#,NZE16#,ZRE162 · catalogue 151170 · Japan
Supported model
Data version 2018-02

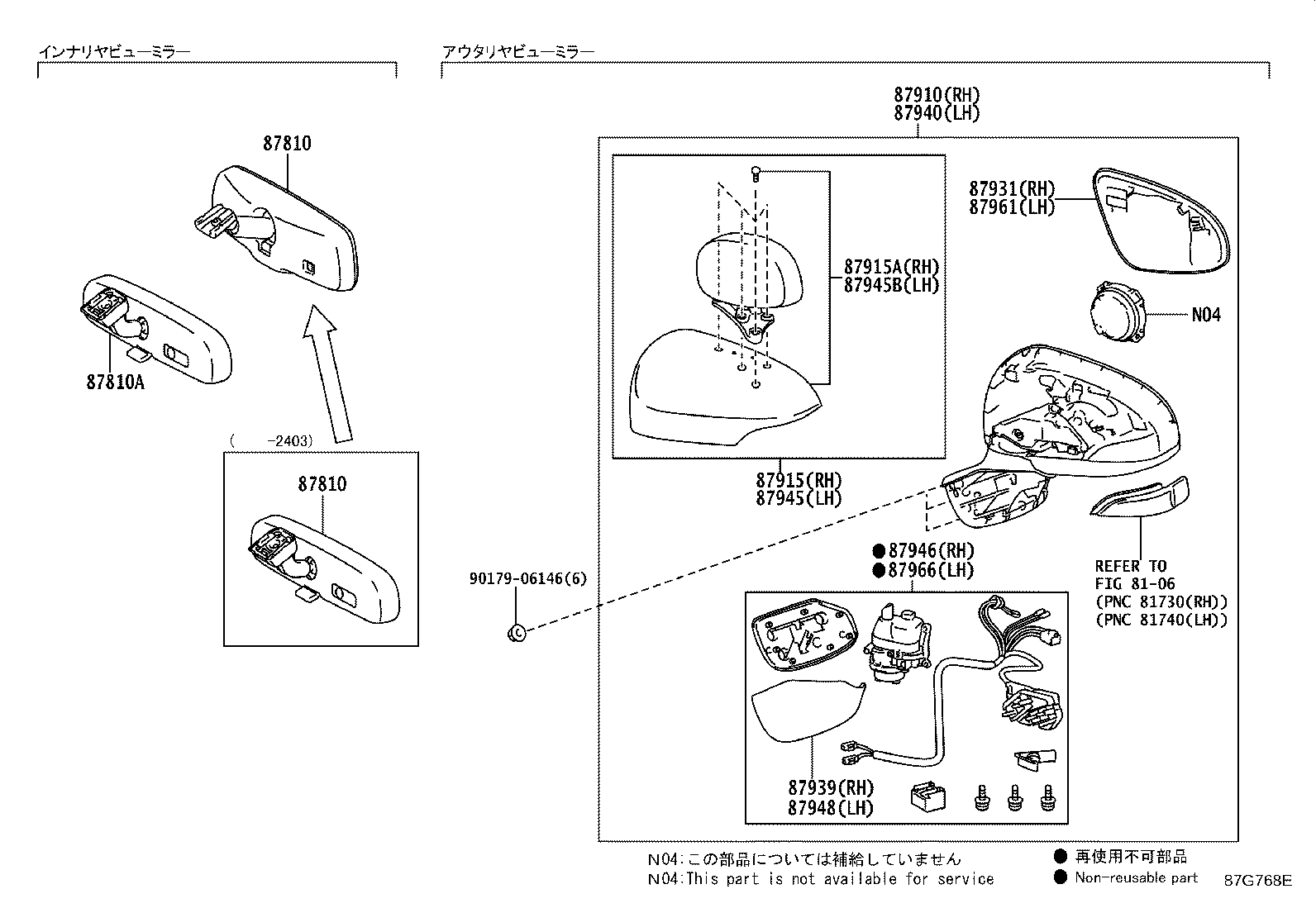

Mirror
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87810 | Mirror Assy, Inner Rear View |
| 87810A | Mirror Assy Inner Rear View, NO.2 |
| 87834 | Cover, Inner Rear View Mirror Stay Holder |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87915 | Cover, Outer Mirror, RH |
| 87915A | Cover, Outer Mirror, RH |
| 87931 | Outer Mirror, RH |
| 87939 | Cover, Outer Mirror Hole, RH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87945 | Cover, Outer Mirror, LH |
| 87945B | Cover, Outer Mirror, LH |
| 87946 | Retractor, Outer Mirror, RH |
| 87948 | Cover, Outer Mirror Hole, LH |
| 87961 | Mirror Outer, LH |
| 87966 | Retractor, Outer Mirror, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
