Toyota Corolla Axio/Fielder

2012-04 → present · chassis NKE165,NRE16#,NZE16#,ZRE162 · catalogue 151170 · Japan

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

25 part groups · 3 illustrations

Illustrations

Figure 87C911H 87C911H 2012-04 → — Figure 87C912B 87C912B 2012-04 → — Figure 87C913B 87C913B 2012-04 → —

Part groups

PNCDescription

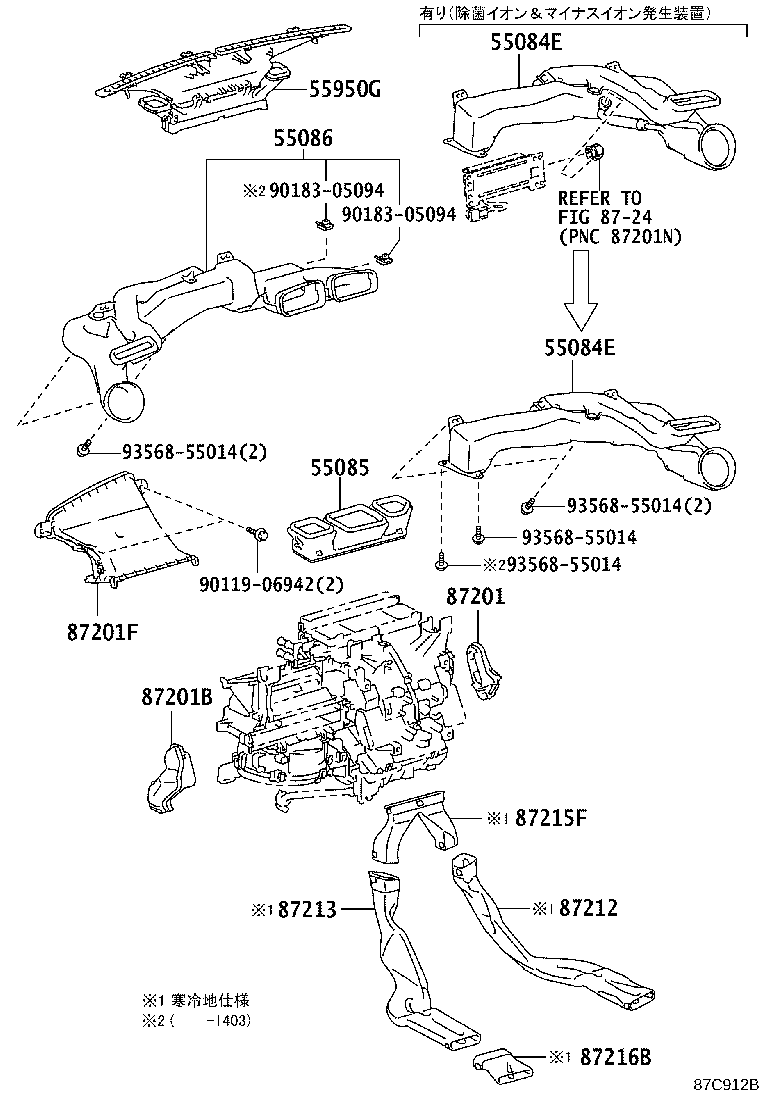

55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55086 Duct Sub-assy, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55901 Base Sub-assy, Heater Control
55901D Control Sub-assy, Heater, NO.1
55902E Control Sub-assy, Heater, NO.2
55903A Control Sub-assy, Heater, NO.3
55904A Housing Sub-assy, Heater Control
55906D Cable Sub-assy, Heater Control, NO.2
55909C Cable Sub-assy, Airmix Damper Control
55910B Bulb, Heater Control
55939 Ornament, Heater Control
55950G Nozzle Assy, Defroster
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215F Duct, Air, Rear NO.3
87216B Duct, Air, Rear NO.4

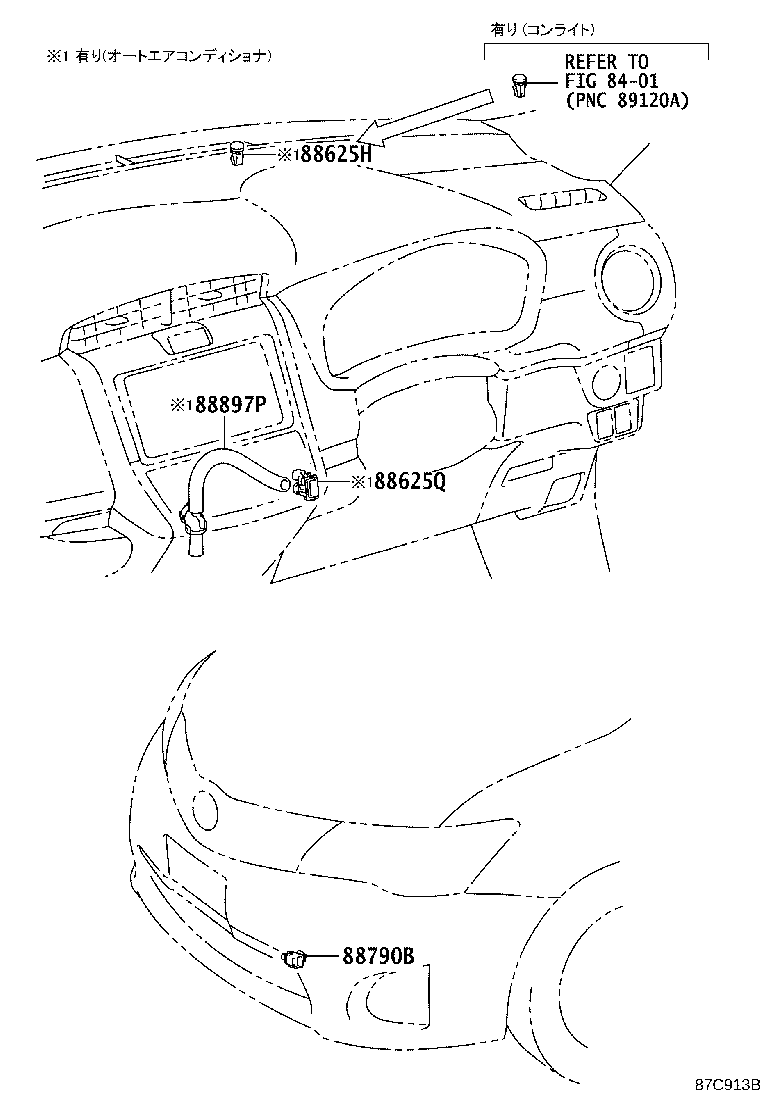

88625H Thermistor, Cooler (SOLAR SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
