Toyota Corolla

2019-08 → present · chassis MZEA1#,NRE210,ZRE212,ZWE21# · catalogue 151180 · Japan

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

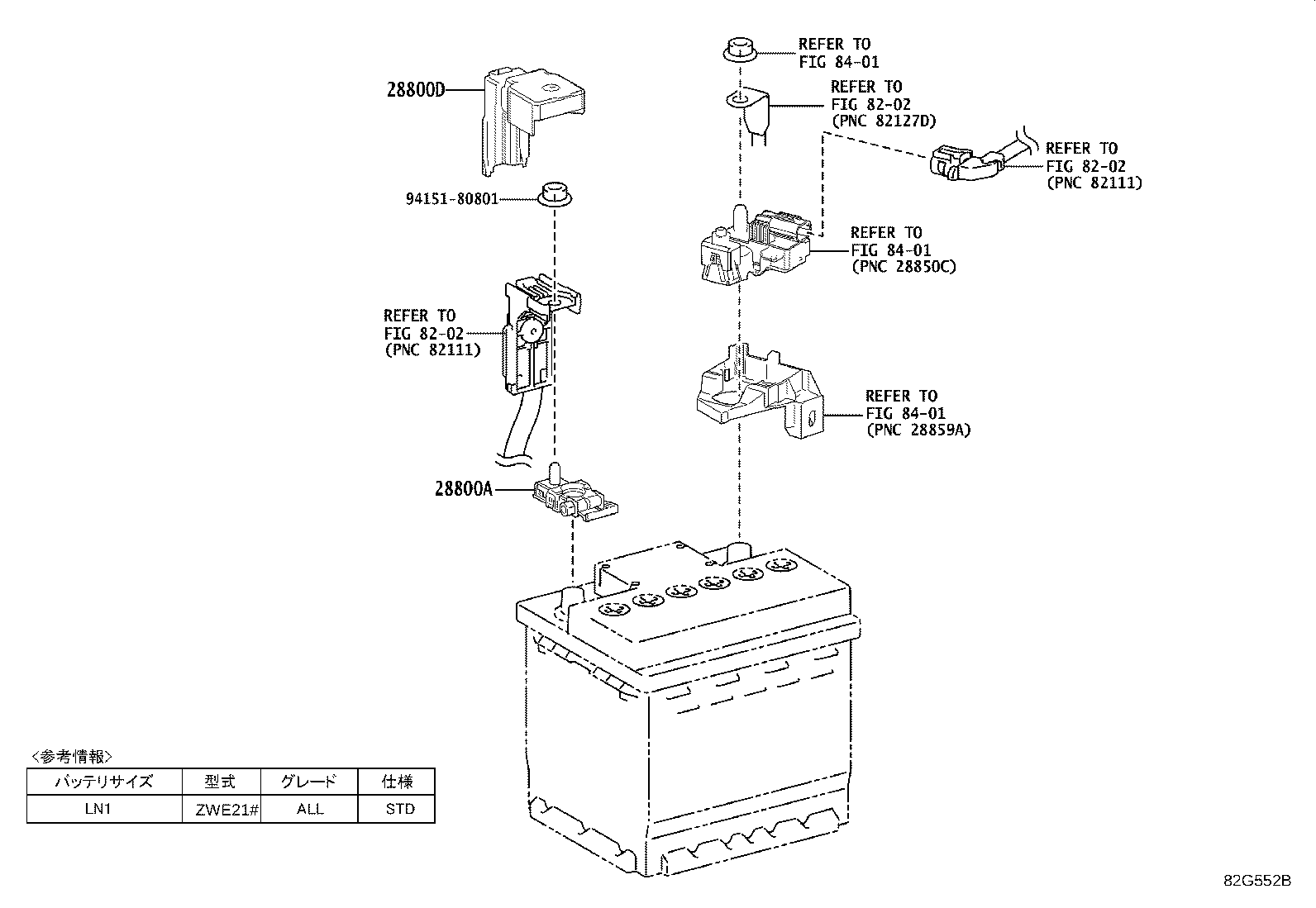

Exploded illustration 82G552B 8401 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue 9415180801 — not listed in this catalogue 28800A — TERMINAL, BATTERY POSITIVE (2 parts) 28800D — COVER, CONNECTOR(FOR BATTERY TERMINAL) (2 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8202 — not listed in this catalogue
82G552B · 2 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
4 parts on this figure
Part number Description Fitment Price
28800A — Terminal, Battery Positive
90982-05061 Terminal, Battery Positive
2019-08 → —
2ZRFXE ZWE211,214 ¥850
82675-78030 Terminal, Battery Positive
2022-10 → —
2ZRFXE ZWE215,219 ¥1,350
28800D — Cover, Connector(FOR BATTERY TERMINAL)
82621-47020 Cover, Connector(FOR BATTERY TERMINAL)
2019-08 → —
2ZRFXE ZWE211,214 ¥730
82821-78140 Cover, Connector(FOR BATTERY TERMINAL)
2022-10 → —
2ZRFXE ZWE215,219 ¥570
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
